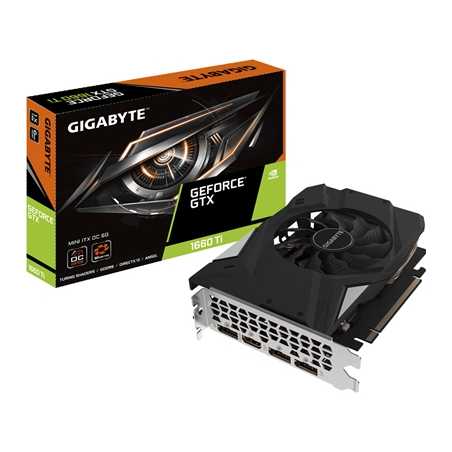

Gigabyte Nvidia GeForce GTX 1660 Ti MINI ITX OC 6GB Single Fan Graphics Card
£319.28
VAT included
Powered by GeForce GTX 1660 Ti
Integrated with 6GB GDDR6 192-bit memory interface
90mm unique blade fan
170mm compact card size
Core Clock
1785 MHz (Reference card is 1770 MHz)
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 90mmunique blade fan, 1 copper composite heat-pipe with direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
Tiny size with mighty performance. At Once.
For users who prefer small chassis and expect strong performance, GIGABYTE delivers with the new 170mm lengthGeForce GTX 1660 TiMINI ITXOC graphics card. Not only does the MINI ITXembed powerful GeForce GTX 1660 Tigraphics processing to provide gamers with the best experience in each gaming masterpiece, but its also easily installed in smaller sized chassis. You never have to worry about the card you purchased not fitting into the chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPE DIRECT TOUCH GPU
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Specifications
Graphics Processing
GeForce GTX 1660 Ti
Core Clock
1785 MHz (Reference card is 1770 MHz)
CUDA Cores
TBD
Memory Clock
12000 MHz
Memory Size
6GB
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
TBD
Card Bus
PCI-E 3.0 x16
Digital Max Resolution
7680 x 4320 @ 60 Hz
Multi-View
4
Card Size
L=170 W=121.3 H=36.4 mm
PCB Form
ATX
DirectX
12
OpenGL
4.5
Recommended PSU
450W
Power Connectors
8 Pin
Output
DisplayPort 1.4 x 3 (Max Resolution: 4096 x 2160 @ 60 Hz)
HDMI 2.0b x 1 (Max Resolution: 7680 x 4320 @ 60 Hz)
SLI Support
No
Accessories
Quick Guide
Driver CD
Integrated with 6GB GDDR6 192-bit memory interface
90mm unique blade fan
170mm compact card size
Core Clock
1785 MHz (Reference card is 1770 MHz)
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 90mmunique blade fan, 1 copper composite heat-pipe with direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
Tiny size with mighty performance. At Once.
For users who prefer small chassis and expect strong performance, GIGABYTE delivers with the new 170mm lengthGeForce GTX 1660 TiMINI ITXOC graphics card. Not only does the MINI ITXembed powerful GeForce GTX 1660 Tigraphics processing to provide gamers with the best experience in each gaming masterpiece, but its also easily installed in smaller sized chassis. You never have to worry about the card you purchased not fitting into the chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPE DIRECT TOUCH GPU
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Specifications
Graphics Processing
GeForce GTX 1660 Ti
Core Clock
1785 MHz (Reference card is 1770 MHz)
CUDA Cores
TBD
Memory Clock
12000 MHz
Memory Size
6GB
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
TBD
Card Bus
PCI-E 3.0 x16
Digital Max Resolution
7680 x 4320 @ 60 Hz
Multi-View
4
Card Size
L=170 W=121.3 H=36.4 mm
PCB Form
ATX
DirectX
12
OpenGL
4.5
Recommended PSU
450W
Power Connectors
8 Pin
Output
DisplayPort 1.4 x 3 (Max Resolution: 4096 x 2160 @ 60 Hz)
HDMI 2.0b x 1 (Max Resolution: 7680 x 4320 @ 60 Hz)
SLI Support
No
Accessories
Quick Guide
Driver CD
