- Out of stock

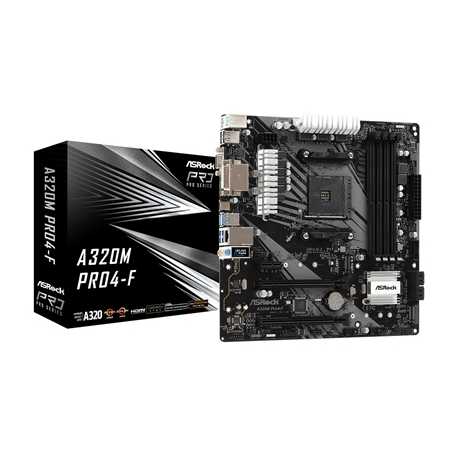

ASRock A320M-Pro4-F AMD Socket AM4 Micro ATX DDR4 HDMI/DVI-D/VGA M.2 USB C 3.1 Motherboard
£65.55
VAT included
AMD AM4 Socket
Supports DDR4 3200+ (OC)
1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
AMD Quad CrossFireX
Graphics Output: HDMI, DVI-D, D-Sub
7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (SATA3)
7 x USB 3.1 Gen1 (1 x Type-C, 2 Front, 4 Rear)
Realtek Gigabit LAN
ASRock Polychrome SYNC
Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRocks VR Ready motherboards are definitely the one youre looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Premium Power Choke
Compared to traditional chokes, ASRocks premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper
It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.
Dual M.2 For SSD
One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRocks U.2 Kit for installing some of the worlds fastest U.2 PCIe Gen3 x4 SSD. And the other one supports SATA3 6Gb/s M.2 modules.
USB Type-C
A latest reversible USB Type-C design that fits the connector either way.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
Specifications
Unique Features
ASRock Super Alloy
- Premium 42A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
Digi Power design
9 Power Phase design
Chipset
AMD Promontory A320
Memory
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 non-ECC, un-buffered memory
Max. capacity of system memory: 64GB
15 Gold Contact in DIMM Slots
BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support
Supports "Plug and Play"
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
DRAM Voltage multi-adjustment
Graphics
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
Integrated AMD Radeon R-Series Graphics in A-series APU
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports
Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Premium Blu-ray Audio support
Supports Surge Protection
ELNA Audio Caps
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111GR
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode)
AMD 7th A-Series APUs
1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)
1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode)
AMD Ryzen series CPUs (Picasso, Raven Ridge)
1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)
1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode)
AMD Athlon series CPUs
1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)
1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode)
1 x PCI Express 2.0 x1 Slot
Supports AMD Quad CrossFireX and CrossFireX
Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon 2xxGE series APU)
1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
Connector
1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
1 x Addressable LED Header
1 x AMD Fan LED Header
1 x CPU Fan Connector (4-pin)
2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock RGB LED
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer
Support CD
Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets
Hardware Monitoring
CPU/Chassis temperature sensing
CPU/Chassis Fan Tachometer
CPU/Chassis Quiet Fan
CPU/Chassis Fan multi-speed control
Voltage monitoring: +12V, +5V, +3.3V, Vcore
Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Solid Capacitor design
OS
Microsoft Windows 10 64-bit
