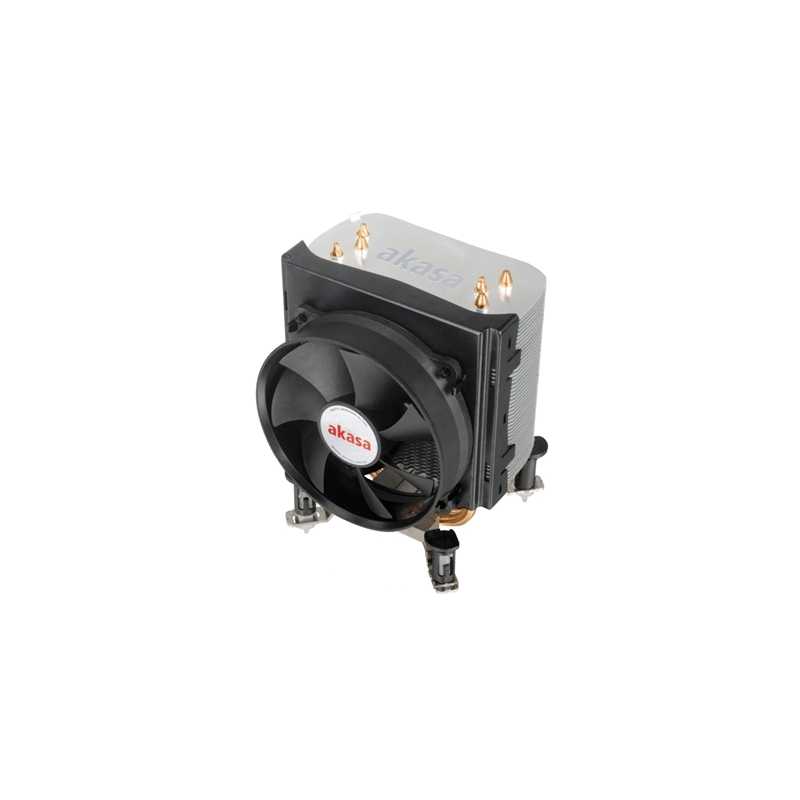

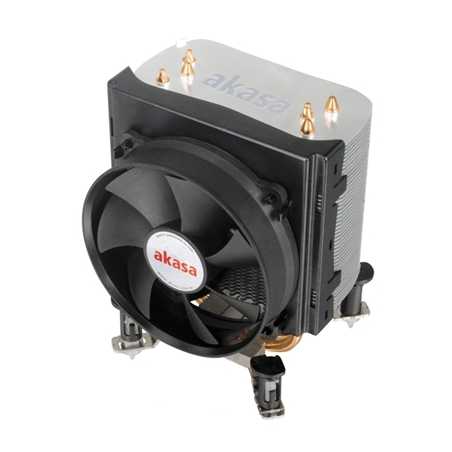

Akasa X4 Universal Socket 92mm PWM 2500RPM Black Fan CPU Cooler

Now works with AM4 Motherboards

X4 is an all new multi-platform CPU cooler which has been developed from the hugely popular AK-965 heatsink. Now compatible with four different mounting types to make it suitable for all current AMD and Intel processors.

The low noise X4 utilizes three long heatpipes precision embedded in a copper base for rapid and even heat absorption and transfer to 45 aluminium fine fins. The PWM fan provides quiet controlled performance and efficient heat dissipation. X4 is designed to incorporate automatic VRM cooling (VRM - CPU Voltage Regulator Modules located on the motherboard), this is an important function that helps to keep your PC stable.

New design Akasa (patent pending) Easy Select Clip with Intel reference push-pin retention is used for no-hassle mounting on Intel LGA775, LGA115X and LGA1366 platforms - no backplate is needed. AMD Sockets 939, AM2, AM2+ and AM3 are catered for with a cam-lever clip for safe and easy attachment. Performance thermal compound is supplied.

- 3 long heatpipes ensure superb cooling performance
- Smart design enables VRM cooling
- Low noise fan with PWM control
- Quick installation with Akasa Easy Select Clip

Socket
Intel: 775, 115X, 1366
AMD: 939, AM2, AM2+, AM3, AM3+, FM1, FM2, AM4

Dimensions (W x H x D)
109 x 135 x 90 mm

Material
Aluminium and copper

Bearing
Sleeve Bearing

Rated Speed
600rpm - 2500rpm (PWM controlled)

Rated Voltage
12V DC

Noise Level
17.0 - 29.5 dB(A)

Max Air Flow
47.68 CFM

Connector
4 pin PWM

Application
Push-pins (Intel)
Screws (AMD)

Thermal Paste Included
Yes

Max Air Pressure
2.56 mm H2O

Life Hours
30000

Operating Temperature
N/A

Packaging Type
Retail

Package Includes
Fan
Heatsink
Fan Clip x 2
AMD & Intel Mounting Kits
Thermal Paste
Installation manual
