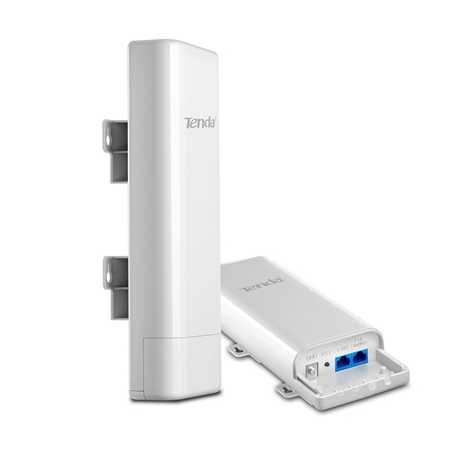

Tenda O3 N150 Wireless Outdoor Long Range CPE

What It Does

O3 5km Outdoor Point To Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features up to 800mW wireless transmission power and has a built-in 12dBi directional dual-polarized antenna which provides an efficient way to pick up and maintains a stable signal for a wireless network connection ranging multiple kilometres.

Hardware Features

Standards
2.4GHz: FIEEE802.11n, IEEE802.11g: CIEEE 802.11b,

Interface & Speeds
10/100M WAN/LAN/PoE port x 1
10/100M LAN port x 1
RP-SMA connector x 1
Grounding Terminal x 1

Antenna
Internal 10dBi directional antenna

Button
1*RESET (ON PoE Injector)

Dimensions (L*W*H)mm
270mm*95mm*43mm (excluding wall mount rack)

Power
Input AC 100-240V 50/60Hz 0.3A

Output
DC 12V1.5A

LED
1*Power
1*LAN/WAN/PoE
1*LAN
1*WLAN Signal Strength

Lightning-proof
6000V Lightning-proof Design
15KV ESD Protection
GND

Wireless Features

Band
2.4GHz

Wireless Speed
150Mbps

Wireless Security
Wireless MAC Address Filter (Wireless Access Control);
WEP, WPA-PSK/WPA2-PSK, WPA/WPA2 mixed;
Wireless Security: Enable/Disable;

Basic Features
Wireless: Enable/Disable;
SSID Broadcast:Enable/Disable;
Band Option:2.4GHz, 5GHz;
Channel-2.4GHz: 1-13;
Network Mode-2.4GHz: 11b/g/n mixed (default mode),11b/g mixed, 11b, 11g;
Connection List.

Software Features

Internet Connection Type
PPPoE;
Dynamic IP;
Static IP.

DHCP Server
DHCP Server;
DHCP Client List;
DHCP Reservation.

Operating Mode
Wireless Router,
Wireless AP,
Wireless WAN (WISP),
Universal Repeater,
Bridge

Virtual Server
Port Forwarding;
DMZ Host;
UPnP.

Security
Client Filter;
MAC Filter;
URL Filter;
Remote Web Management

DDNS
Yes

VPN Pass-Through
Yes

Others
Housed in an IP64 water/dust-proof enclosure;
Power tunable to fit wireless networking at different distances;
Bandwidth Control;
MAC Clone;
Traffic Statistics;
Backup/Restore Configurations;
Firmware upgradable via web browser;
Watchdog helps to recover system upon network failure;

Package Contents
O3
Power Adapter
Ethernet Cable
Quick Install Guide
Resource CD
Nylon Ligature
Passive PoE Injector
Screws

Temperature
Operating Temperature: -30C ~ 50C
Storage Temperature: -40C ~ 70C.

Humidity
Operating Humidity:10% ~ 90% RH non-condensing;
Storage Humidity: 5% ~ 90%RH non-condensing.

Factory Default Settings
IP Address: 192.168.2.1
Login User name/Password: admin/admin

Certificates
CE FCC RoHS
