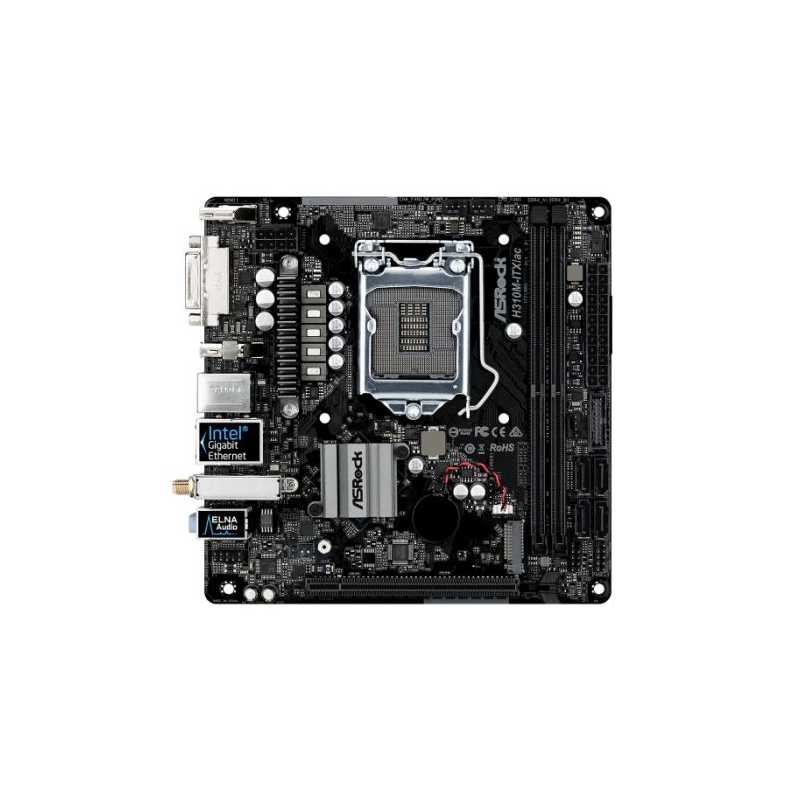

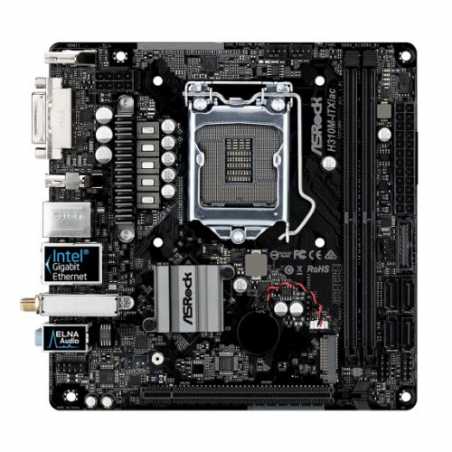

Asrock H310M-ITX/AC, Intel H310, 1151, Mini ITX, 2 DDR4, DVI, HDMI, DP, Wi-Fi, M.2

Data sheet

PCI Express

1 x PCIe 3.0 x16

Wireless

Intel 802.11ac WiFi ModuleSupports IEEE 802.11a/b/g/n/acSupports Dual-Band (2.4/5 GHz)Supports wireless connections up to 433MbpsSupports Bluetooth 4.2

RAM Speeds

2666 / 2400 / 2133 MHz

Accessories

Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables2 x ASRock WiFi 2.4/5 GHz Antennas1 x Screw for M.2 Socket

USB Ports Supported

4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)

Storage

4 x SATA III1 x M.2 (2280) - SATA & PCIe

RAID

-

Warranty

3 Year Replacement Warranty

Motherboard Type

Desktop

Form Factor

Mini ITX

Socket

Intel 1151 - Coffee Lake

Chipset

Intel H310

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

64GB

Multi-GPU Support

-

LAN

GB LAN

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Back Panel I/O Ports

2 x Antenna1 x PS/2 Mouse/Keyboard1 x DVI-I1 x HDMI1 x DisplayPort 1.22 x USB 2.02 x USB 3.1 Gen11 x RJ-45 LANHD Audio Jacks

Internal I/O Connectors

1 x Chassis Intrusion1 x CPU Fan1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x USB 2.01 x USB 3.1 Gen1

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

0.7240 kg

Graphics Ports

1 x DVI-I1 x HDMI1 x DisplayPort 1.2

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

PCI/PCI Express

1 x PCIe 3.0 x16

Wi-Fi

Yes (Wi-Fi)

Specific References

EAN13

4717677337143
