Kingston 32GB, DDR4, 2666MHz (PC4-21300), CL19, SODIMM Memory

£74.54
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

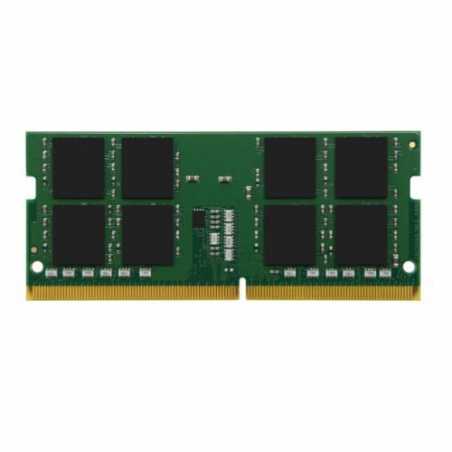

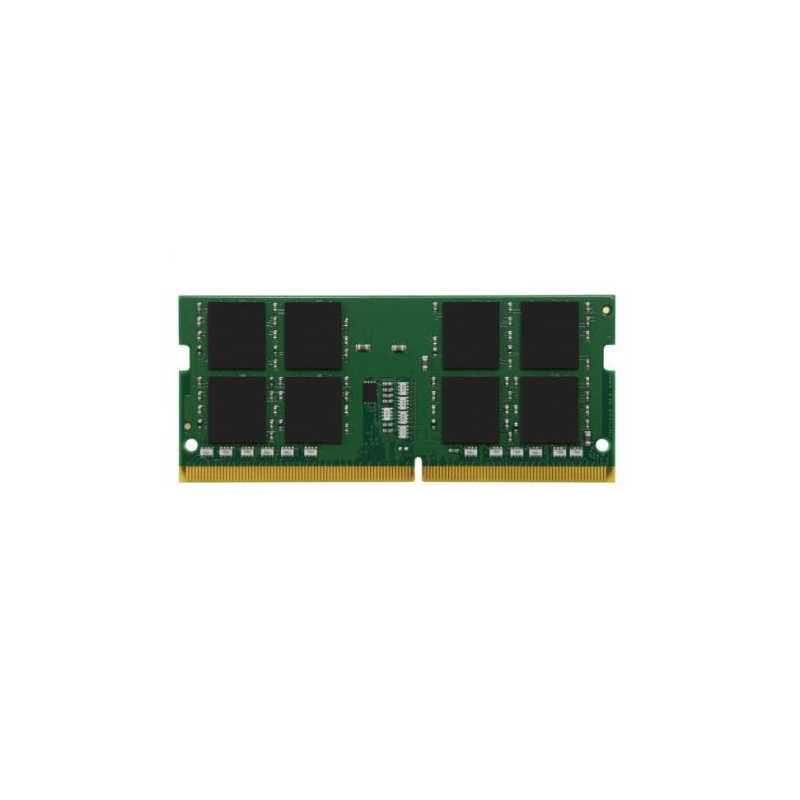

ValueRAM's KVR26S19D8/32 is a 4G x 64-bit (32GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin DIMM uses gold contact fingers.
  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free
KINGSTON
KVR26S19D8/32

Data sheet

Warranty
Lifetime
Form Factor
SODIMM
DDR Type
SODIMM DDR4
Package Type
Retail
Package Weight
0.0225 kg
Series
Kingston ValueRAM
Size
1 x 32GB
Speed
2666 MHz
Compliance
PC4-21300
Pins
260-pin
CAS Latency
19-19-19
Data Integrity Check
Non-ECC
Voltage
1.2V
Additional Information
See Overview
Capacity
32GB
Individual Module Size
32GB
RGB
No

Specific References

EAN13
740617304398
