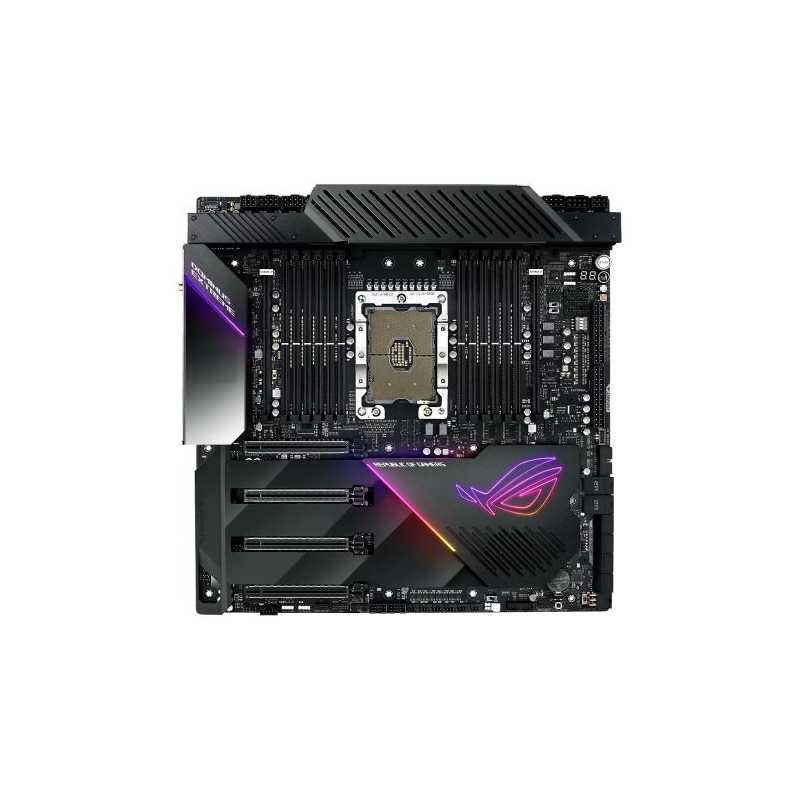

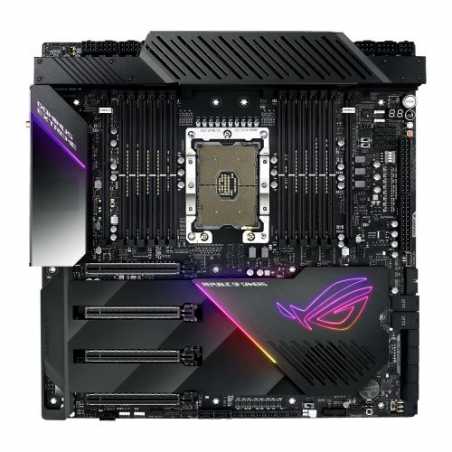

EEB motherboard compatible with ATX mounts, support for 6 channel DDR4 4200MHz+ (OC), dual DIMM.2 with heatsinks, quad M.2, onboard 10G Lan, integrated Wi-Fi, USB 3.1 and dual U.2
LGA 3647 socket for Intel Xeon® W-3175X processor
Designed for extreme performance: 32 power stages, dual 24-pin, quad 8-pin and dual 6-pin 12V power connectors that deliver industry-leading power efficiency
Quad strength graphic power: 4-Way PCIe 3.0 link supporting NVidia GeForce SLI, NVidia NVLink and AMD CrossFireX on demand
Built for High Performance Networking: Onboard Aquantia AQC-107 10Gbps LAN, Intel I219-LM gigabit LAN, Intel® Wireless AC-9260 Wi-Fi 5 (802.11ac), and ROG GameFirst technology
5-Way Optimization featuring Auto-Tuning and FanXpert 4: Provides automatic overclocking profiles for maximum OC performance, plus 14 PWM fan headers to support dynamic system cooling
Unmatched personalisation: 1.77 inch” colour LiveDash OLED, full aluminium body cover, backplate armour and ASUS exclusive Aura Sync RGB lighting
ROG gaming audio: SupremeFX S1220 teamed with Sonic Studio III to cast an aural landscape that draws you deeper into the action.
2 x W_PUMP+ connector1 x WB_SENSOR1 x Thunderbolt2 x 6-pin EATX 12V2 x 24-pin EATX4 x 8-pin EATX 12V1 x 6-pin EZ_PLUG1 x Front audio13 x ProbeIt Measurement Points1 x Node
PCI Express
4 x PCIe 3.0 x16 (x16/x16/x16, x16/x8/x16/x8)
Wireless
Intel Wireless-AC 9260Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMOSupports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
4 x USB 3.1 Gen 2 (2x Type-A & 2x C at back)12 x USB 3.1 Gen 1 (8 at back, 4 at mid-board)4 x USB 2.0 (at mid-board)1 x USB 3.1 Gen 2 front panel connector
Storage
8 x SATA III2 x ROG DIMM.2 (2242/2260/2280/22110) - PCIe2 x U.2
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
Back Panel I/O Ports
2 x USB 3.1 Gen 2 Type-C2 x USB 3.1 Gen 2 Type-A8 x USB 3.1 Gen 11 x Optical S/PDIF out1 x Clear CMOS button1 x USB BIOS Flashback Button1 x ASUS Wi-Fi Module5 x LED-illuminated audio jacks1 x Aquantia AQC-107 10G LAN portAnti-surge LAN (RJ45) port
Internal I/O Connectors
2 x Aura Addressable Strip2 x Aura RGB Strip2 x USB 3.1 Gen 12 x USB 2.08 x SATA 6Gb/s1 x VROC_HW_Key1 x CPU Fan1 x CPU OPT Fan2 x LED2 x Chassis Fan1 x PCH_FAN2 x HS_FAN
CPU Support
For Xeon W-3175X ProcessorsSupports Intel Virtual RAID on CPU (VROC)
Package Type
Retail
Package Weight
0.0000 kg
6.7000 kg
Graphics Ports
-
Additional Features
See Overview
Graphics
-
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
10GB LAN
RGB Lighting
Yes (RGB)
Specific References
EAN13
4718017147392
