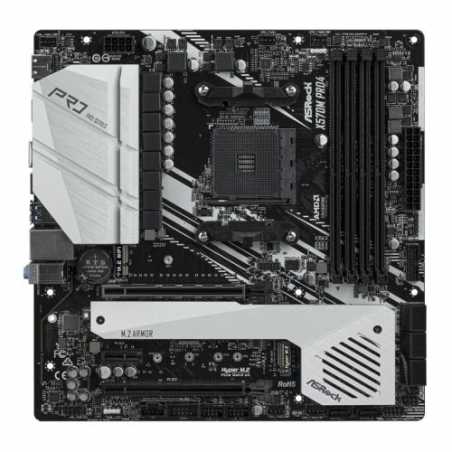

Asrock X570M PRO4, AMD X570, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting, M.2
search
  • Asrock X570M PRO4, AMD X570, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting
  • Asrock X570M PRO4, AMD X570, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting, M.2
  • Asrock X570M PRO4, AMD X570, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting, M.2

Asrock X570M PRO4, AMD X570, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting, M.2

£206.02
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
  • 10 Power Phase Design
  • Supports DDR4 4200+ (OC)
  • 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
  • AMD Quad CrossFireX™ and CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
  • Intel® Gigabit LAN
  • ASRock Polychrome SYNC


Dual Hyper M.2 For SSD

Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.





Steel Slot with New Gen PCI-Express 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.





Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.





USB 3.2 Gen2 doubles the data transfer rate

USB 3.2 Gen2 Type-C doubles the charge speed!





Rule your own Lighting Way - Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.





Intel LAN

Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!





Super Alloy Motherboard

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.





M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.





ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ASROCK
X570M PRO4

Data sheet

.
1 x AMD LED Fan USB1 x Thunderbolt AIC2 x USB 2.01 x USB 3.2 Gen1
PCI Express
Ryzen Matisse CPUs:2 x PCIe 4.0 x16Ryzen Pinnacle Ridge CPUs:2 x PCIe 3.0 x16AMD Picasso CPUs:2 x PCIe 3.0 x161 x PCIe 4.0 x1
Wireless
-
RAM Speeds
Ryzen Matisse CPUs: 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 MHzRyzen Pinnacle Ridge CPUs: 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 MHzAMD Picasso CPUs: 3466+(OC) / 3200(OC) / 2933/
Accessories
Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
USB Ports Supported
2 x USB 3.2 Gen2 Type-A & C (at back)8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)
Storage
8 x SATA III1 x Hyper M.2 (2242/2260/2280) - PCIe1 x Hyper M.2 (2230/2242/2260/2280) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD X570
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports AMD Quad CrossFireX and CrossFireX
LAN
GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
Back Panel I/O Ports
3 x Antenna1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.21 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C6 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x COM Port1 x SPI TPM1 x Power LED and Speaker1 x AMD Fan LED1 x RGB LED1 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
1.4000 kg
Graphics Ports
1 x HDMI1 x DisplayPort 1.2
Additional Features
See Overview
Graphics
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
Yes (RGB)
PCI/PCI Express
Ryzen Matisse CPUs:2 x PCIe 4.0 x16Ryzen Pinnacle Ridge CPUs:2 x PCIe 3.0 x16AMD Picasso CPUs:2 x PCIe 3.0 x161 x PCIe 4.0 x1
