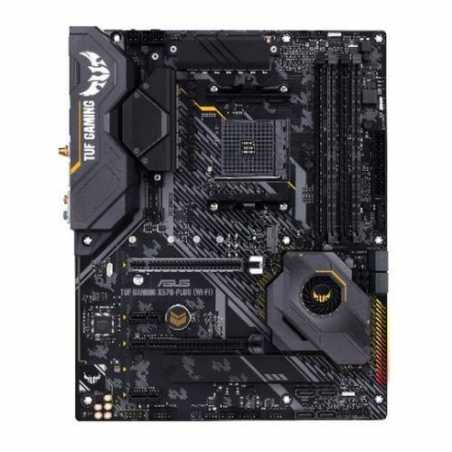

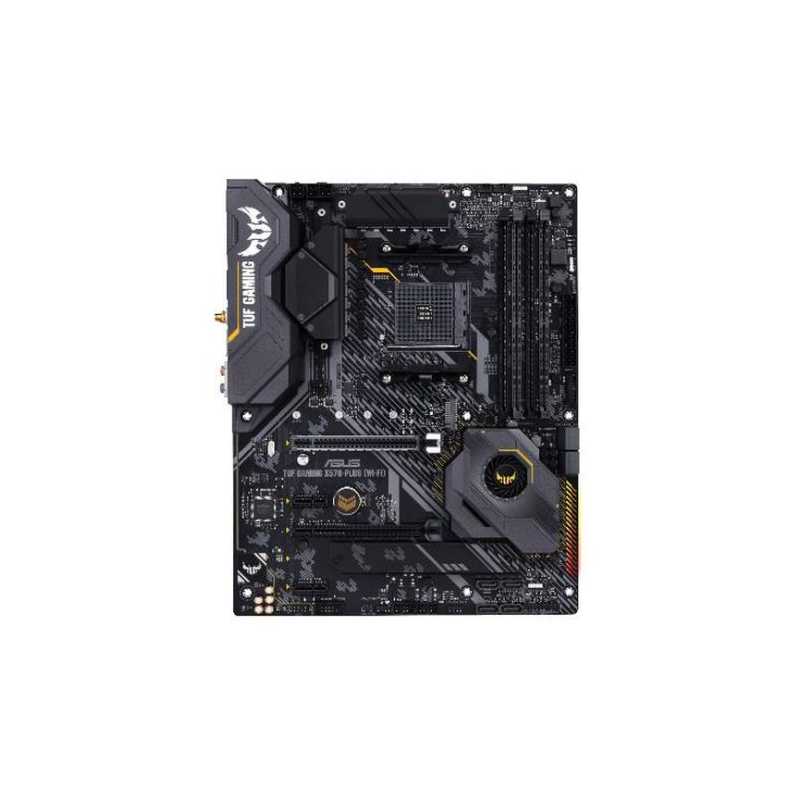

Asus TUF GAMING X570-PLUS (Wi-Fi), AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Wi-Fi, PCIe4, RGB Lighting, M.2
search
  • Asus TUF GAMING X570-PLUS (Wi-Fi), AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Wi-Fi, PCIe4, RGB Lighting, M.2
  • Asus TUF GAMING X570-PLUS (Wi-Fi), AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Wi-Fi, PCIe4, RGB Lighting, M.2
  • Asus TUF GAMING X570-PLUS (Wi-Fi), AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Wi-Fi, PCIe4, RGB Lighting, M.2

Asus TUF GAMING X570-PLUS (Wi-Fi), AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, Wi-Fi, PCIe4, RGB Lighting, M.2

£259.16
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



AMD AM4 X570 ATX gaming motherboard with PCIe 4.0, dual M.2, Wi-Fi, 12+2 with Dr. MOS power stage, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 and Aura Sync RGB lighting

  • AMD AM4 Socket: Ready for 2nd and 3rd Gen AMD RyzenTMprocessors
  • Enhanced Power Solution: Military-grade TUF components, ProCool socket and Digi+ VRM for maximum durability
  • Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
  • Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C
  • Gaming Networking: Exclusive Realtek® L8200A Gigabit Ethernet, Intel 2x2 802.11ac Wi-Fi with MU-MIMO support, Bluetooth 5.0, TUF LANGuard and TurboLAN technology
  • Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
  • TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case



Durable. Stable. Reliable.

TUF Gaming X570-Plus (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.






Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus (Wi-Fi) is the perfect foundation for your next high-core-count AMD battle rig.






Cooling

VRM Heatsink
Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.

Thermal Pad
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.

Active Chipset Heatsink
A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.

M.2 Heatsink
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.




Active Chipset Heatsink Solution
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The TUF Gaming X570-Plus (Wi-Fi) features an actively cooled heatsink to prevent throttling during sustained transfers.



Custom Delta Superflo Fan
The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.


Air Duct
A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.

Finned Heatsink
The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.




Comprehensive Fan Controls
TUF Gaming X570-Plus (Wi-Fi) features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and our award-winning UEFI BIOS.






Easy PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.




TUF gaming alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.






Immersive Gaming

TUF Gaming X570-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.




Exclusive Gigabit Ethernet
Experience ultra-fast gaming with the ASUS-exclusive Realtek L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.




Integrated Wi-Fi 5
TUF Gaming X570-Plus (Wi-Fi) features Intel Wireless AC-9260 Wi-Fi 5 (802.11ac) with 2x2 MU-MIMO and wide 160MHz channels, for wireless speeds of up to 1.73Gbps.* In fact, its integrated Wireless-AC 9260 Wi-Fi adapter pushes wireless data up to 2X faster - so you'll get fast, smooth transfers, even when your rig is further away from the router. Intel Wireless-AC 9260 also offers Bluetooth 5.0 for connections that are up to 2X faster than ever before, and with up to 4X the range.




Turbo LAN
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X - with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!






The Power of AMD

AMD X570 Chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.





AMD AM4 Socket for 3rd and 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.


ASUS
90MB1170-M0EAY0

Data sheet

.
1 x 4-pin ATX 12V1 x Front audio1 x System panel1 x Clear CMOS jumper1 x COM port1 x USB 3.2 Gen 1
PCI Express
Ryzen 3rd Gen CPUs:1 x PCIe 4.0/3.0 x16 (x16 mode)Ryzen 2nd Gen CPUs:1 x PCIe 3.0 x16 (x16 mode)Ryzen 1st/2nd Gen CPUs: 1 x PCIe 3.0/2.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode)2 x PCIe 4.0 x1
Wireless
Intel Wireless-AC 92602x2 Wi-Fi 5(802.11 a/b/g/n/ac) with MU-MIMO supportSupports channel bandwidth: HT20/HT40/HT80/HT160Bluetooth 5.0
RAM Speeds
2133, 2400, 2666, 2800(OC), 2933, 3000, 3200, 3400(OC), 3466(OC), 3600(OC), 4400(OC) MHz
Accessories
2 x SATA 6Gb/s cables1 x IO Shield1 x M.2 Screw Package1 x Support DVD1 x TUF Gaming Sticker1 x TUF Certification card1 x ASUS 2T2R Wi-Fi antennas1 x User manual
USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)2 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)
Storage
8 x SATA III2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM4
Chipset
AMD X570
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports AMD CrossFireX Technology
PCI
-
LAN
GB LAN
Audio
Realtek S1200A 8-channel high definition audio CODEC
Back Panel I/O Ports
1 x PS/2 keyboard/mouse1 x DisplayPort1 x HDMI1 x LAN (RJ45)1 x Optical S/PDIF out5 x Audio jacks4 x USB 3.2 Gen 13 x USB 3.2 Gen 2ASUS Wi-Fi module
Internal I/O Connectors
2 x Aura RGB Strip1 x Addressable Gen 22 x USB 2.02 x M.21 x SPI TPM8 x SATA 6Gb/s1 x CPU Fan1 x CPU OPT Fan3 x Chassis Fan1 x AIO_PUMP1 x 24-pin EATX1 x 8-pin ATX 12V
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
1.8000 kg
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
Yes (RGB)
PCI/PCI Express
Ryzen 3rd Gen CPUs:1 x PCIe 4.0/3.0 x16 (x16 mode)Ryzen 2nd Gen CPUs:1 x PCIe 3.0 x16 (x16 mode)Ryzen 1st/2nd Gen CPUs: 1 x PCIe 3.0/2.0 x16 (x8 mode)AMD X570 chipset1 x PCIe 4.0 x16 (max at x4 mode)2 x PCIe 4.0 x1
Wi-Fi
Yes (Wi-Fi)

Specific References

EAN13
4718017388498
