- Out of stock

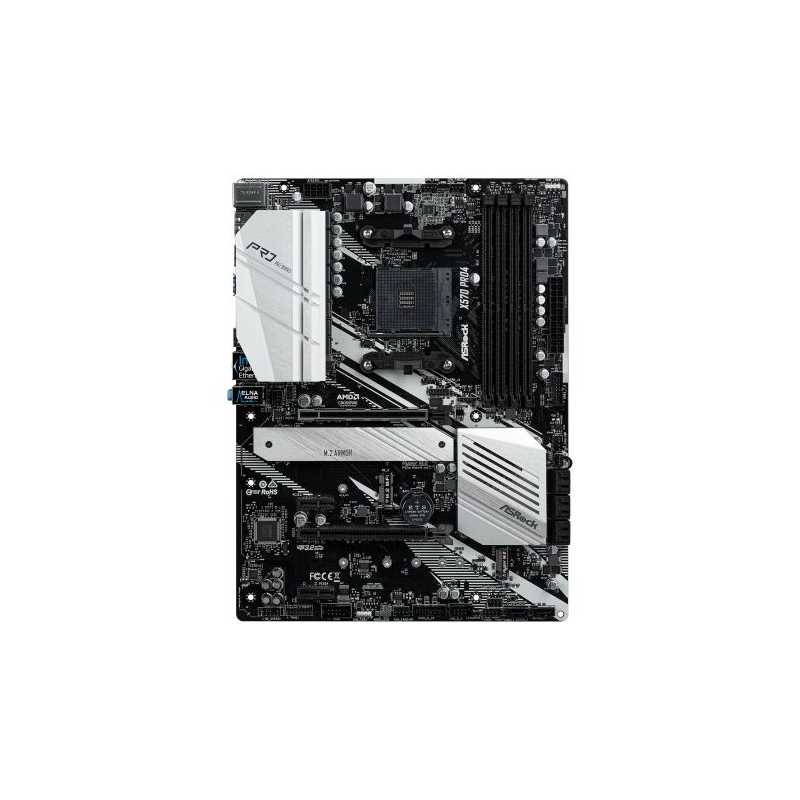

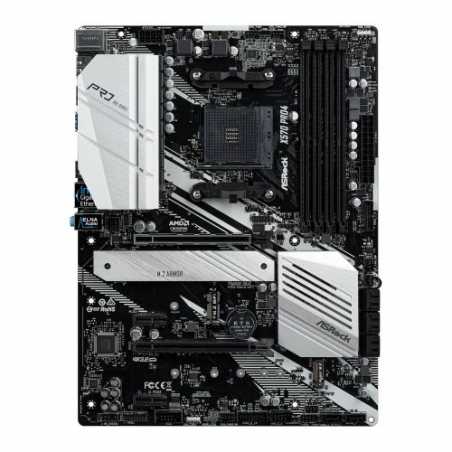

Asrock X570 PRO4, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting, M.2
£173.54
VAT included
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- 10 Power Phase Design
- Supports DDR4 4066+ (OC)
- 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3),
- 1 Hyper M.2 (PCIe Gen4 x4)
- 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
Dual Hyper M.2 for SSD
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Steel Slot with New-Gen PCI Express 4.0
The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- 10 Power Phase Design
- Supports DDR4 4066+ (OC)
- 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3),
- 1 Hyper M.2 (PCIe Gen4 x4)
- 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
EVOLUTIONARY X570 MOTHERBOARDS: Your PC Transformed
Style . More reliable. Design that delivers.
Steel Slot with New-Gen PCI Express 4.0
The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.
Dual Hyper M.2 For SSD
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.
Rule your Own Lighting Way - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
IO Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Super Alloy Motherboard
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
X570 PRO 4
Data sheet
- .
- 1 x Thunderbolt AIC1 x USB 2.02 x USB 3.2 Gen1
- PCI Express
- AMD Ryzen series CPUs (Matisse)2 x PCI Express 4.0 x16AMD Ryzen series CPUs (Pinnacle Ridge)2 x PCI Express 3.0 x16 SlotsAMD Ryzen series CPUs (Picasso)2 x PCI Express 3.0 x16
AMD Ryzen series CPUs (Matisse):2 x PCI Express 4.0 x16AMD Ryzen series CPUs (Pinnacle Ridge):2 x PCI Express 3.0 x16 SlotsAMD Ryzen series CPUs (Picasso):2 x PCI Express 3.0 x16 - Wireless
- -
- RAM Speeds
- AMD Ryzen series CPUs (Matisse):4066+(OC)/3466(OC)/3200/2933/2667/2400/2133 MHzAMD Ryzen series CPUs (Pinnacle Ridge):3466+(OC)/ 3200(OC)/2933/2667/2400/2133 MHzAMD Ryzen series CPUs (Picasso):3466+(OC)/3200(OC)/2933/2667/2400/2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
- USB Ports Supported
- 2 x USB 3.2 Gen2 Type-A & C (at back)10 x USB 3.2 Gen1 (6 at back, 4 at mid-board)2 x USB 2.0 (at mid-board)
- Storage
- 8 x SATA III1 x Hyper M.2 (2230/2242/2260/2280/22110) - PCIe1 x Hyper M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM4
- Chipset
- AMD X570
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX and CrossFireX
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Back Panel I/O Ports
- 3 x Antenna1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.21 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C6 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x COM Port1 x SPI TPM1 x Power LED and Speaker2 x RGB LED1 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x AMD LED Fan USB
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.7200 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort 1.2
- Additional Features
- See Overview
- Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- AMD Ryzen series CPUs (Matisse):2 x PCI Express 4.0 x16AMD Ryzen series CPUs (Pinnacle Ridge):2 x PCI Express 3.0 x16 SlotsAMD Ryzen series CPUs (Picasso):2 x PCI Express 3.0 x16
Specific References
- EAN13
- 4717677338874
