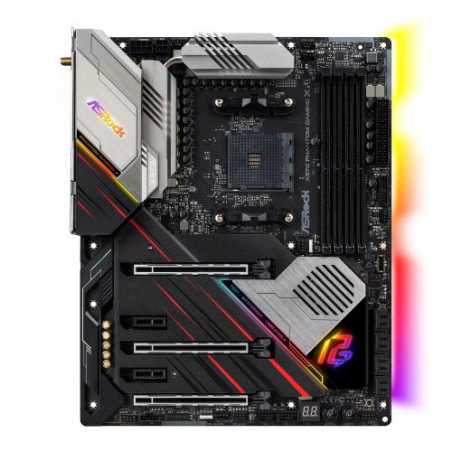

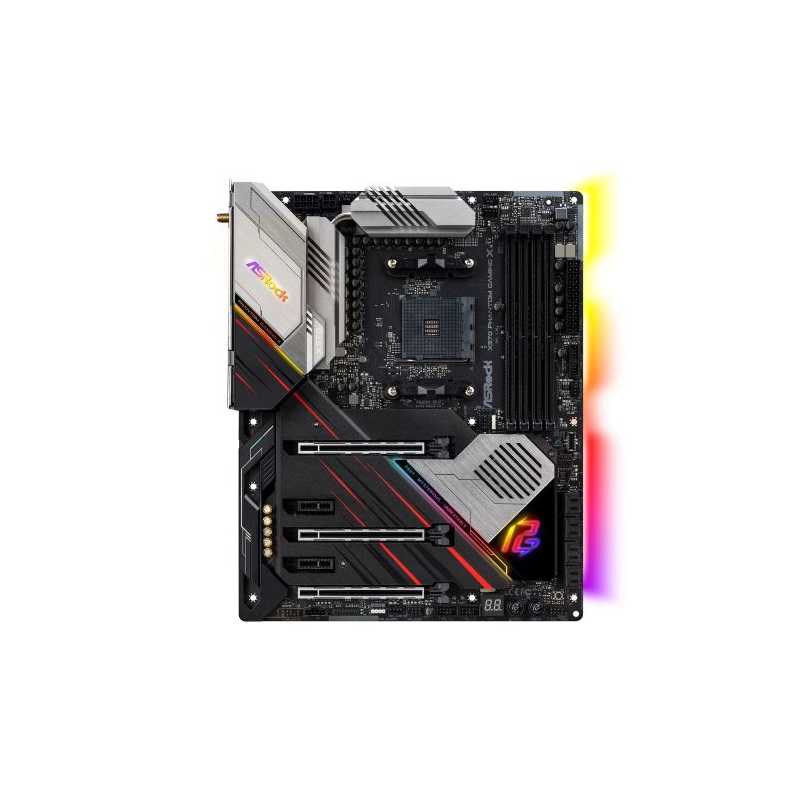

Asrock X570 Phantom Gaming X, AMD X570, AM4, ATX, 4 DDR4, HDMI, SLI/XFire, Wi-Fi, 2.5GB LAN, PCIe4, RGB Lighting, M.2

£391.37
VAT included
Stock status: Out of stock
Out of stock
  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
  • Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN
  • Supports DDR4 4666+ (OC)
  • 3 PCIe 4.0 x16, 2 PCIe 4.0 x1
  • NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Creative Sound Blaster Cinema 5
  • 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
  • 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
  • ASRock Polychrome SYNC


Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.






Steel Slot with New-Gen PCI Express 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.






Unbeatable Heatsink Armor with Hyper M.2

Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next generation PCI Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation.






Rule your own Lighting Way

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.






Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.






Metal Backplate

Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.






14 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.






Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.






Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.






Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.






Premium 60A Power Choke

ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.






BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.






Creative Sound Blaster Cinema5

A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.






Super Alloy Motherboard

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Combo Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, effi
Quantity
Out of stock

  • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
  • Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN
  • Supports DDR4 4666+ (OC)
  • 3 PCIe 4.0 x16, 2 PCIe 4.0 x1
  • NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
  • Supports Creative Sound Blaster Cinema 5
  • 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
  • 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
  • ASRock Polychrome SYNC


Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock’s motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.






Steel Slot with New-Gen PCI Express 4.0

The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.






Unbeatable Heatsink Armor with Hyper M.2

Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next generation PCI Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation.






Rule your own Lighting Way

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.






Flexible Integrated I/O Shield

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.






Metal Backplate

Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.






14 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.






Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.






Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.






Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.






Premium 60A Power Choke

ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.






BIOS Flashback

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.






Creative Sound Blaster Cinema5

A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.






Super Alloy Motherboard

XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

Combo Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.






Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.




Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

ASROCK
X570 PHANTOMG X

Data sheet

.
1 x AMD LED Fan USB1 x Thunderbolt AIC2 x USB 2.01 x USB 3.2 Gen11 x Front Panel Type C USB 3.2 Gen21 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED1 x Clear CMOS Button
PCI Express
AMD Ryzen series CPUs (Matisse)1 x PCI Express 4.0 x16AMD Ryzen series CPUs (Pinnacle Ridge)3 x PCI Express x16AMD Ryzen series CPUs (Picasso)1 x PCI Express 3.0 x161 x PCI Express 4.0 x16
AMD Ryzen series CPUs (Matisse)PCI Express 4.0 x16AMD Ryzen series CPUs (Pinnacle Ridge)3 x PCI Express x16AMD Ryzen series CPUs (Picasso)1 x PCI Express 3.0 x161 x PCI Express 4.0 x16
Wireless
Intel 802.11ax WiFi ModuleSupports IEEE 802.11a/b/g/n/axSupports Dual-Band (2.4/5 GHz)Supports WiFi6 802.11ax (2.4Gbps)2 antennasSupports Bluetooth 5.0 + High speed class IISupports MU-MIMO
RAM Speeds
AMD Ryzen series CPUs (Matisse)4666+/4400/4300/4266/4200/4133/3466/3200/2933/2667/2400/2133 AMD Ryzen series CPUs (Pinnacle Ridge)3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133 AMD Ryzen series CPUs (Picasso)3466+(OC)/3200(OC)/2933/2667/2400/2133 non-ECC
Accessories
Quick Installation Guide, Support CD4 x SATA Data Cables1 x ASRock SLI_HB_Bridge_2S Card1 x ASRock WiFi 2.4/5 GHz Antenna1 x ASRock Screwdriver3 x Screws for M.2 Sockets2 x Standoffs for M.2 Sockets
USB Ports Supported
2 x USB 3.2 Gen2 Type-A & C (at back)8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)1 x Front Panel Type C USB 3.2 Gen2 Header
Storage
8 x SATA III1 x Hyper M.2 (2242/2260/2280) - SATA & PCIe1 x Hyper M.2 (2260/2280) - PCIe1 x Hyper M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
ATX
Socket
AM4
AMD AM4
Chipset
AMD X570
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
64GB
Multi-GPU Support
Supports AMD Quad CrossFireXSupports NVIDIA Quad SLISupports NVIDIA NVLink
LAN
2.5GB LAN & GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x PS/2 Mouse/Keyboard1 x HDMI1 x Optical SPDIF Out1 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C6 x USB 3.2 Gen12 x RJ-45 LAN1 x Clear CMOS Button1 x BIOS Flashback ButtonHD Audio Jacks
Internal I/O Connectors
1 x SPI TPM1 x Power LED and Speaker1 x AMD Fan LED1 x RGB LED1 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan4 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x 4 pin 12V1 x Front Audio
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
0.0000 kg
3.1000 kg
Graphics Ports
1 x HDMI
Additional Features
See Overview
Graphics
Integrated AMD RadeonTM Vega Series Graphics in Ryzen Series APU
M.2 Slot(s)
Yes
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Yes
Yes (RGB)

Specific References

EAN13
4717677338850
