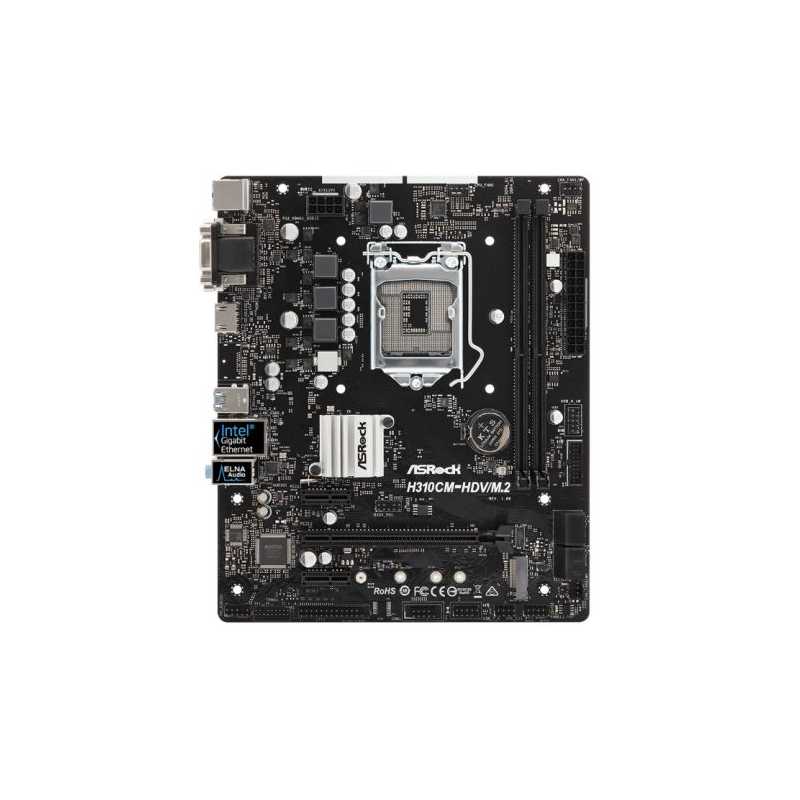

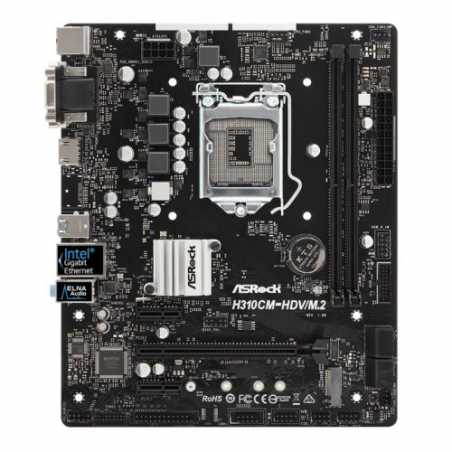

Asrock H310CM-HDV/M.2, Intel H310, 1151, Micro ATX, DDR4, VGA, DVI, HDMI, M.2

£59.51
VAT included
Stock status: Out of stock
Out of stock
  • Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 M.2 (PCIe Gen2 x4 & SATA3)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Intel® Gigabit LAN



PCIe Gen2 x4 M.2

The PCIe Gen2 x4 interface pushes data transfer speeds up to 20Gb/s. In addition, it also supports SATA 3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some U.2 SSDs.




Intel LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!




Super Alloy Motherboard

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.




3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.




4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.




ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.




A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.




Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.




Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Quantity
Out of stock

  • Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
  • Supports DDR4 2666
  • 1 PCIe 3.0 x16, 2 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 M.2 (PCIe Gen2 x4 & SATA3)
  • 4 USB 3.1 Gen1 (2 Front, 2 Rear)
  • Intel® Gigabit LAN



PCIe Gen2 x4 M.2

The PCIe Gen2 x4 interface pushes data transfer speeds up to 20Gb/s. In addition, it also supports SATA 3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some U.2 SSDs.




Intel LAN

Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!




Super Alloy Motherboard

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.




3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.




4K x 2K

Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.




ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.




A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.




Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.




Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
ASROCK
H310CM-HDV/M.2

Data sheet

PCI Express
1 x PCIe 3.0 x161 x PCIe 2.0 x1
Wireless
-
RAM Speeds
2666 / 2400 / 2133 MHz
Accessories
Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
USB Ports Supported
4 x USB 3.1 Gen1 (2 Front, 2 Rear)8 x USB 2.0 (4 Front, 4 Rear)
Storage
4 x SATA III1 x M.2 (2230/2242/2260/2280) - PCIe
RAID
-
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1151 - Coffee Lake
Chipset
Intel H310
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
32GB
Multi-GPU Support
-
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard1 x D-Sub1 x DVI-D1 x HDMI4 x USB 2.02 x USB 3.1 Gen11 x RJ-45HD Audio Jacks
Internal I/O Connectors
1 x Print Port1 x COM Port1 x TPM1 x Chassis Intrusion and Speaker1 x CPU Fan2 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio2 x USB 2.01 x USB 3.1 Gen1
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
0.7070 kg
Graphics Ports
1 x VGA1 x DVI-D1 x HDMI
Additional Features
See Overview
Graphics
Supports Intel UHD Graphics
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
No
PCI/PCI Express
1 x PCIe 3.0 x161 x PCIe 2.0 x1
Memory Slots
2 Slots
CPU Compatibility
Intel 8th/9th Gen
M.2 Compatibility
NVMe / SATA
USB C
No

Specific References

EAN13
4717677336351
