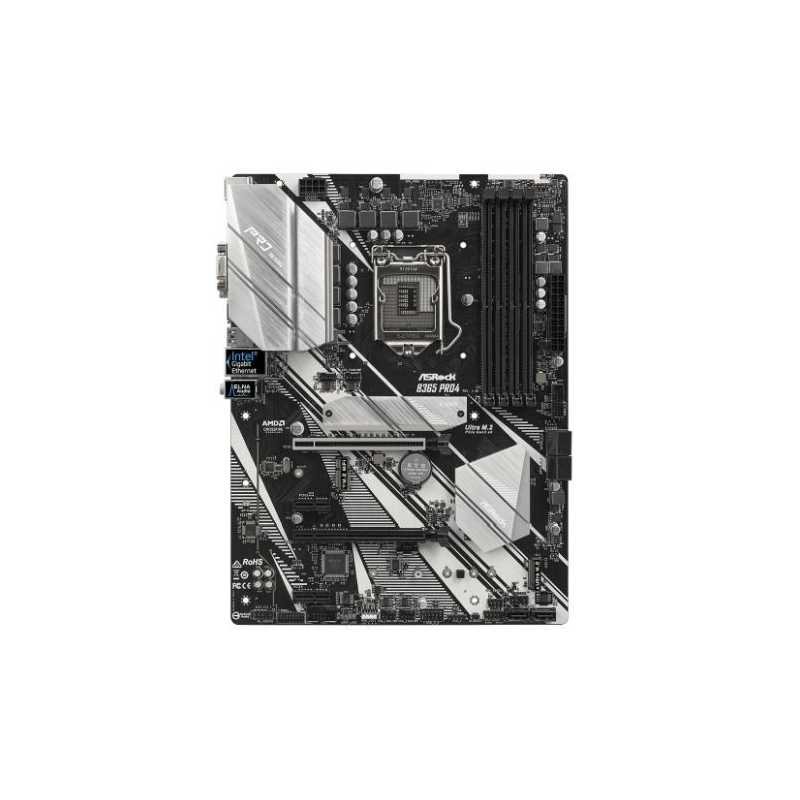

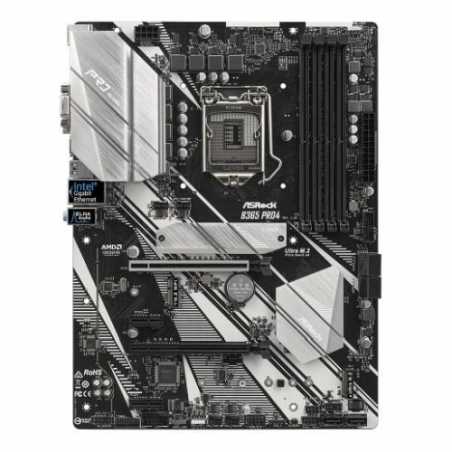

Asrock B365 PRO4, Intel B365, 1151, ATX, 4 DDR4, CrossFire, VGA, DVI, HDMI, M.2

£85.05
VAT included
Stock status: Out of stock
Out of stock
  • Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
  • Supports DDR4 2666
  • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • AMD Quad CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen3 x4 & SATA3, 1 x PCIe Gen3 x4)
  • 8 USB 3.1 Gen1 (2 Front, 5 Rear, 1 Type-C)
  • Intel® Gigabit LAN
Quantity
Out of stock

  • Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
  • Supports DDR4 2666
  • 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • AMD Quad CrossFireX™
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 6 SATA3, 2 Ultra M.2 (1 x PCIe Gen3 x4 & SATA3, 1 x PCIe Gen3 x4)
  • 8 USB 3.1 Gen1 (2 Front, 5 Rear, 1 Type-C)
  • Intel® Gigabit LAN
ASROCK
B365 PRO4

Data sheet

.
2 x USB 2.01 x USB 3.1 Gen1
PCI Express
2 x PCIe 3.0 x162 x PCIe 3.0 x1
Wireless
-
RAM Speeds
2666 / 2400 / 2133 MHz
Accessories
Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
USB Ports Supported
1 x USB 3.1 Gen 1 (Type-C at back)7 x USB 3.1 Gen 1 (5 at back, 2 at mid-board)5 x USB 2.0 (2 at back, 3 at mid-board)
Storage
6 x SATA III1 x Ultra M.2 (2230/2242/2260/2280) - SATA & PCIe1 x Ultra M.2 (2230/2242/2260/2280/22110) - PCIe
RAID
RAID 0, 1, 5, 10
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1151 - Coffee Lake
Chipset
Intel B365
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
64GB
Multi-GPU Support
Supports AMD Quad CrossFireX
LAN
GB LAN
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard1 x D-Sub1 x DVI-D1 x HDMI Pt2 x USB 2.01 x USB 3.1 Gen1 Type-C5 x USB 3.1 Gen11 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x COM Port1 x TPM1 x Power LED and Speaker2 x RGB LED1 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x Thunderbolt AIC
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
1.4000 kg
Graphics Ports
1 x VGA1 x DVI-D1 x HDMI
Additional Features
See Overview
Graphics
Supports Intel HD Graphics
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
No
PCI/PCI Express
2 x PCIe 3.0 x162 x PCIe 3.0 x1
Memory Slots
4 Slots
CPU Compatibility
Intel 8th/9th Gen
M.2 Compatibility
NVMe / SATA
USB C
Yes
