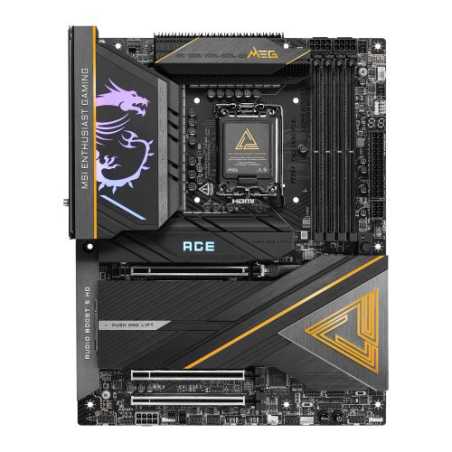

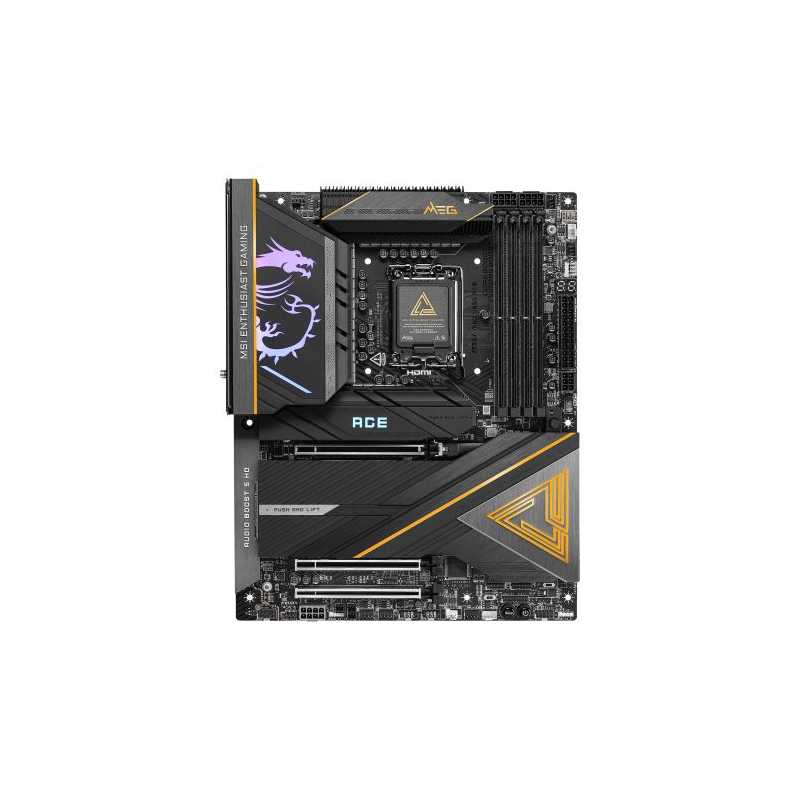

MSI MEG Z890 ACE, Intel Z890, 1851, ATX, 4 DDR5, HDMI, 2 TB4, Wi-Fi 7, 10G LAN, RGB, 5x M.2
search
  • MSI MEG Z890 ACE, Intel Z890, 1851, ATX, 4 DDR5, HDMI, 2 TB4, Wi-Fi 7, 10G LAN, RGB, 5x M.2

MSI MEG Z890 ACE, Intel Z890, 1851, ATX, 4 DDR5, HDMI, 2 TB4, Wi-Fi 7, 10G LAN, RGB, 5x M.2

£657.32
VAT included
Stock status: Very low
Last 2 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



Furnished premium aesthetics with its dark black finish and pale gold embellishes.

Developed to unlock the full gaming potential of the Intel Core Ultra processor by combining elite hardware system support and premium durability, the MEG Z890 ACE is an outstanding ATX of Z890 platform for extreme settings in terms of overclocking the processor, DDR5 memory, and graphics card at the highest level.

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
  • Ultra Performance: 24+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
  • Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • EZ DIY: EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
  • Ultra Connect: Dual Thunderbolt™ 4 ports, 10G LAN, and Full-speed Intel® Killer™ Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.
  • Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
  • Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.




MEG

The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of.

With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.





Ready for AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
  • AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
  • AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
  • Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
  • AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.





Ultra Power +

The ultimate power solution with 24+2+1+1 DRPS, 110A SPS, and OC Engine unleashes maximum CPU performance.





Frozr Design

Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover, Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI software ensure the utmost performance with low temp.





Dual Thunderbolt™ 4 ports

Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.





10G Super LAN

Next level network speed, secure networking with fastest data throughput to improve efficiency.





Wi-Fi 7

The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.





Quintuple M.2 Connectors

Onboard 5x M.2 connectors with one Lightning Gen 5 solution for the maximum storage performance.





EZ Magnetic M.2 Shield Frozr II

The patented design enables true “wire-less” RGB function, while the screwless design provides the easiest way for M.2 installation.





EZ PCIe Release

A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.





Lightning Gen 5

The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.





Latest DDR5 Memory

A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.





Audio Boost 5 HD

Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.



MSI
MEG Z890 ACE
2 Items

Data sheet

.
EZ M.2 Clip IIM.2 Screw and Standoff SetShout Out FlyerQuick Installation GuideEU Regulatory Notice
Wireless
Intel Killer BE1750x Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4, MLO, 4KQAM
RAM Speeds
Up to 9200MT/s (OC)
Accessories
Wi-Fi AntennaUSB DriveCable Stickers4 x SATA CablesEZ Front Panel Cable1-to-3 EZ Conn-Cable V21-to-2 RGB Extension CableARGB Extension Cable2 x Thermistor CablesEZ M.2 Clip II Remover
USB Ports Supported
Rear:2 x Thunderbolt 4 (USB Type-C)2 x USB 10Gbps Type-C11 x USB 10Gbps Type-AFront:1 x USB 20Gbps Type-C4 x USB 5Gbps Type-A4 x USB 2.0
Storage
4 x SATA III5 x M.2M.2_1 (2280/2260) - PCIe 5.0 x4M.2_2 (2280/2260) - PCIe 5.0 x4M.2_3 (2280/2260/2242) - PCIe 4.0 x4M.2_4 (22110/2280/2260) - PCIe 5.0 x4 + PCIe 4.0 x4M.2_5 (22110/2280) - SATA & PCIe 4.0 x4
RAID
Supports RAID 0, 1, 5 and 10 for SATA storage devicesSupports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1851
Chipset
Intel Z890
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports Intel POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel XMP 3.0Supports CUDIMM
RAM Slots
4 x DIMM
Maximum Memory
256GB
LAN
10GB LAN
Audio
Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA7.1-Channel USB High-Performance Audio
Back Panel I/O Ports
2 x Thunderbolt 4 (USB Type-C)2 x USB 10Gbps Type-C11 x USB 10Gbps Type-A1 x HDMI 2.11 x RJ-451 x Audio Line Out1 x Microphone In1 x S/PDIF Optical Out2 x SMA Antenna
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
To be confirmed
Graphics Ports
1 x HDMI2 x Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
10GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
2 x PCIe 5.0 x161 x PCIe 4.0 x4
Wi-Fi
Yes (Wi-Fi)
