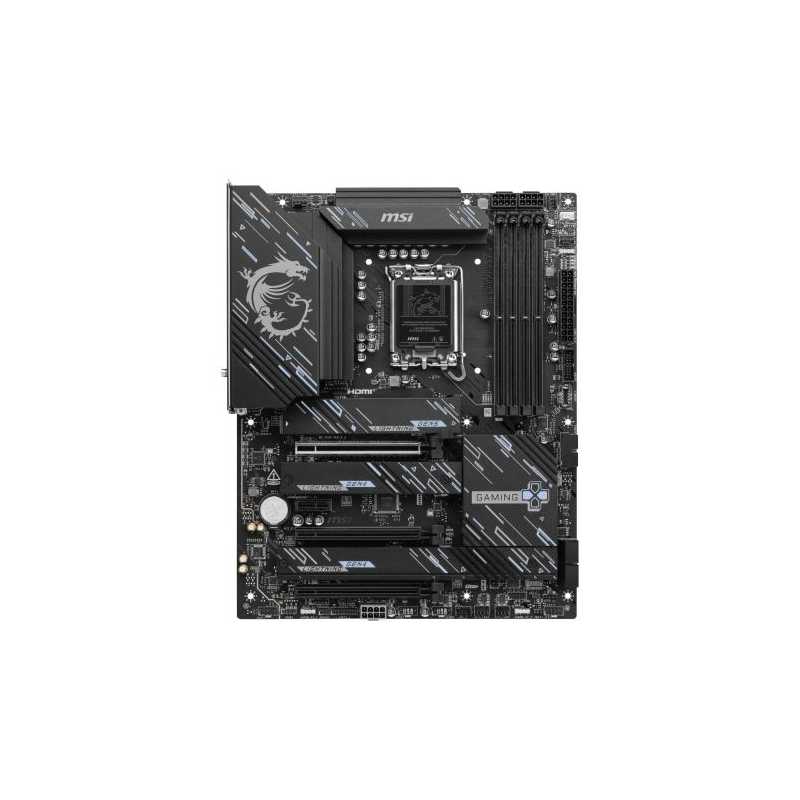

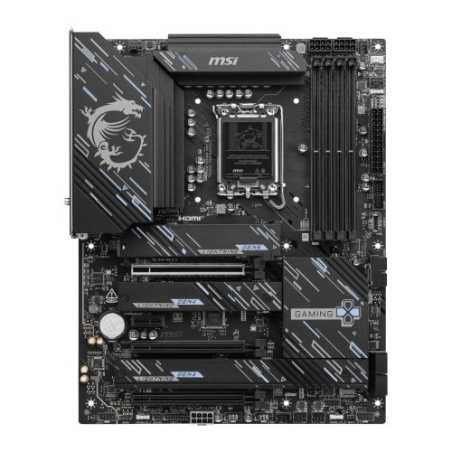

MSI Z890 GAMING PLUS WIFI, Intel Z890, 1851, ATX, 4 DDR5, HDMI, DP, TB4, Wi-Fi 7, 5G LAN, 4x M.2
£259.73
VAT included
Delivered within 1-2 days.
Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience.
Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Thunderbolt™ 4 port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage performance.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Z890 GAMING PLUS WIFI
10 Items
Data sheet
- .
- 1 x RGB LED1 x TPM pin TPM 2.04 x USB 2.04 x USB 5Gbps Type-A1 x USB 20Gbps Type-C
- Wireless
- Intel Killer BE1750x Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4, MLO, 4KQAM
- RAM Speeds
- Up to 9200MT/s (OC)
- Accessories
- Quick Installation GuideEU Regulatory NoticeShout Out Flyer2 x SATA Cables4 x EZ M.2 Clip IIEZ M.2 Clip II RemoverCable StickersEZ Wi-Fi Antenna1-to-2 EZ Conn-Cable V1
- USB Ports Supported
- Rear:1 x Thunderbolt 4 (USB Type-C)1 x USB 10Gbps Type-C1 x USB 10Gbps Type-A2 x USB 5Gbps Type- A4 x USB 2.0Front:1 x USB 20Gbps Type-C4 x USB 5Gbps Type- A4 x USB 2.0
- Storage
- 4 x SATA III4 x M.2M.2_1 (2280/2260) - PCIe 5.0 x4M.2_2 (22110/2280/2260) - PCIe 4.0 x4M.2_3 (2280/2260/2242) - PCIe 4.0 x4M.2_4 (2280/2260/2242) - SATA & PCIe 4.0 x4
- RAID
- Supports RAID 0, 1, 5 and 10 for SATA storage devicesSupports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1851
- Chipset
- Intel Z890
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports Intel POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel XMP 3.0Supports CUDIMM
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 5GB LAN
- Audio
- Realtek ALC897 Codec7.1-Channel High Definition Audio
- Back Panel I/O Ports
- 1 x Thunderbolt 4 (USB Type-C)1 x USB 10Gbps Type-C1 x USB 10Gbps Type-A2 x USB 5Gbps Type- A4 x USB 2.01 x DisplayPort 1.41 x HDMI 2.11 x PS/2 Keyboard/Mouse Combo1 x RJ-451 x Audio Line In1 x Audio Line Out1 x Microphone In2 x SMA Antenna
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI1 x DisplayPort1 x Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x162 x PCIe 4.0 x161 x PCIe 4.0 x1
- Wi-Fi
- Yes (Wi-Fi)
