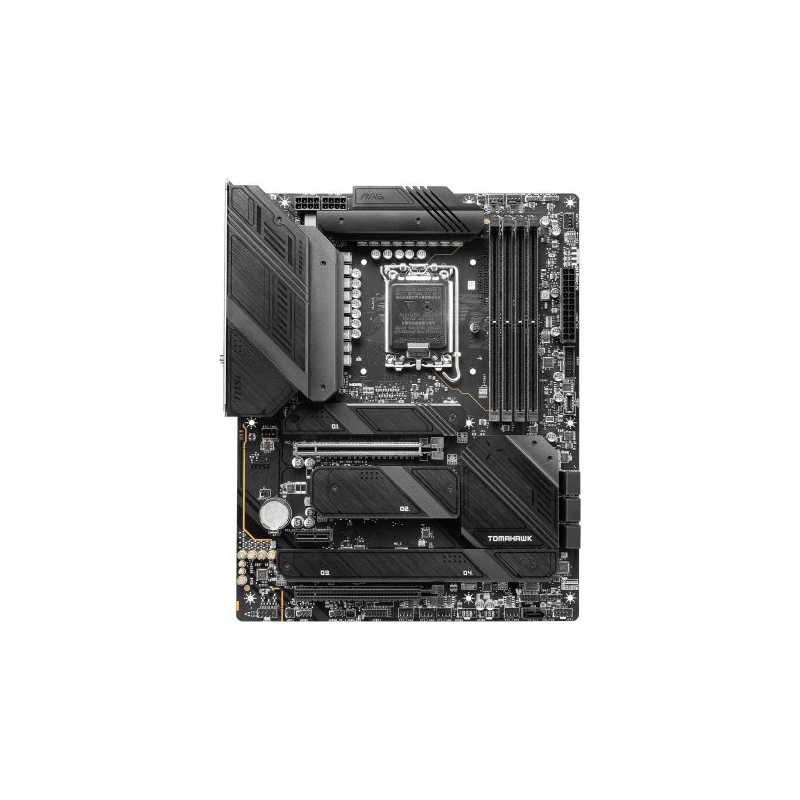

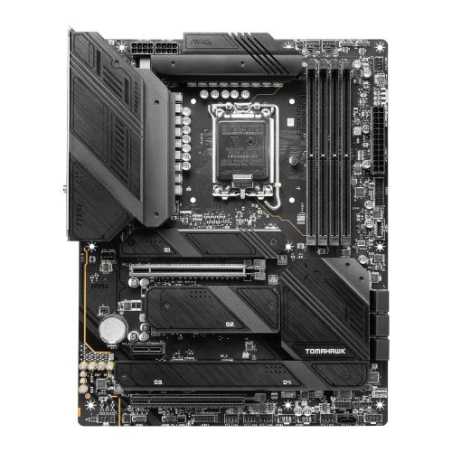

MSI MAG Z790 TOMAHAWK WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 4x M.2
£214.56
VAT included
Delivered within 1-2 days.
MAG Z790 TOMAHAWK WIFI
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage performance.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
M.2 Shield FROZR
M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
6 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
MAG Z790 TOMAHAWK WIFI
12 Items
Data sheet
- .
- 4 x USB 2.02 x USB 5Gbps Type-A1 x USB 10Gbps Type-C
- Wireless
- Intel Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA
- RAM Speeds
- Up to 7200(OC)
- Accessories
- Quick Installation Guide2 x SATA CablesEZ M.2 ClipsUSB DriveCable StickersWi-Fi AntennaEU Regulatory Notice
- USB Ports Supported
- Rear:1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-C4 x USB 10Gbps Type-A4 x USB 5Gbps Type-AFront:1 x USB 10Gbps Type-C2 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 7 x SATA III4 x M.2M.2_1 (22110/2280/2260) - PCIe 4.0 x4M.2_2 (2280/2260) - PCIe 4.0 x4M.2_3 (2280/2260/2242) - SATA & PCIe 4.0 x4M.2_4 (2280/2260/2242) - PCIe 4.0 x4
- RAID
- Supports RAID 0, 1, 5 and 10 for SATA storage devicesSupports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel Z790
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports non-ECC, un-buffered memorySupports Intel XMP3.0 OC
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC4080 Codec7.1-Channel USB High Performance Audio
- Back Panel I/O Ports
- 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-C4 x USB 10Gbps Type-A4 x USB 5Gbps Type-A1 x DisplayPort 1.41 x HDMI 2.11 x RJ-451 x Audio Line In3 x Audio Line Out1 x Microphone In1 x S/PDIF Optical Out2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x CPU Fan1 x Pump Fan6 x System Fan2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Tuning Controller (JDASH)3 x Addressable V2 RGB LED1 x RGB LED1 x TPM pin TPM 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 2.0100 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x161 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
