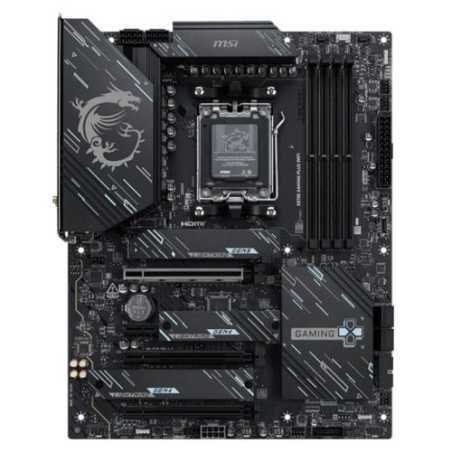

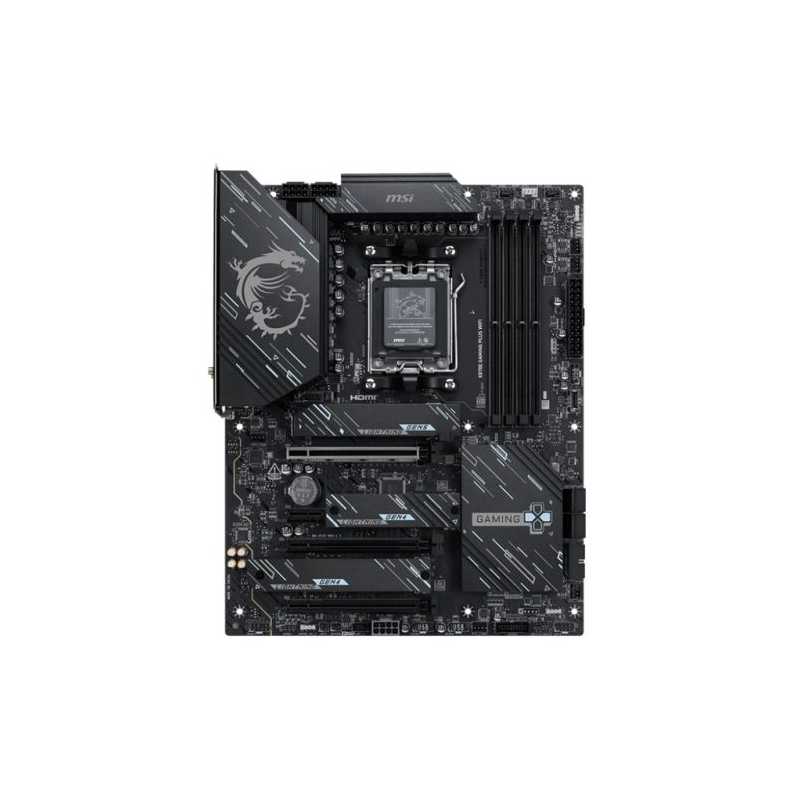

MSI X870E GAMING PLUS WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, USB4, Wi-Fi 7, 5G LAN, 3x M.2
£259.73
VAT included
Delivered within 1-2 days.
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience.
Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Triple M.2 Connectors
Onboard 3x M.2 connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
X870E GAMING PLUS WIFI
18 Items
Data sheet
- .
- 1 x RGB LED1 x TPM pin 2.06 x USB 2.04 x USB 5Gbps Type-A1 x USB 10Gbps Type-C
- Wireless
- Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4, MLO, 4KQAM
- RAM Speeds
- Up to 8200+(OC)
- Accessories
- Quick Installation GuideEU Regulatory Notice2 x SATA Cables2 x EZ M.2 Clip IIEZ M.2 Clip II RemoverCable StickersEZ Wi-Fi Antenna1 to 2 EZ Conn-Cable (v1)
- USB Ports Supported
- Rear:1 x USB 40Gbps Type-C1 x USB 20Gbps Type-C2 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 10Gbps Type-C4 x USB 5Gbps Type-A6 x USB 2.0
- Storage
- 4 x SATA III3 x M.2Ryzen 9000 & 7000 Series CPUs:M.2_1 (2280/2260) - PCIe 5.0 x4Ryzen 8000 Series CPUs:M.2_1 (22110/2280) - PCIe 4.0 x4Chipset:M.2_2 (2280/2260) - PCIe 4.0 x4M.2_3 (22110/2280) - PCIe 4.0 x4
- RAID
- Supports RAID 0, 1 and 10 for SATA storage devicesSupports RAID 0, 1 and 5 for M.2 NVMe storage devices*RAID 5 configuration is only supported by Ryzen 9000 series CPUs.
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD X870E
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports CUDIMM, Clock Driver bypass mode only
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 5GB LAN
- Audio
- Realtek ALC8977.1-Channel High Definition Audio
- Back Panel I/O Ports
- 1 x USB 40Gbps Type-C1 x USB 20Gbps Type-C2 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.01 x HDMI 2.11 x RJ-451 x Audio Line In1 x Audio Line Out1 x Microphone In2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x Power (PCIE_PWR 8pin)1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)6 x System Fan1 x EZ Conn-header (JAF_1)2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Tuning Controller (JDASH)3 x Addressable V2 RGB LED
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI1 x USB4 (40Gbps) support USB Type-C display outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x162 x PCIe 3.0 x1*Specifications may vary between CPU types
- Wi-Fi
- Yes (Wi-Fi)
