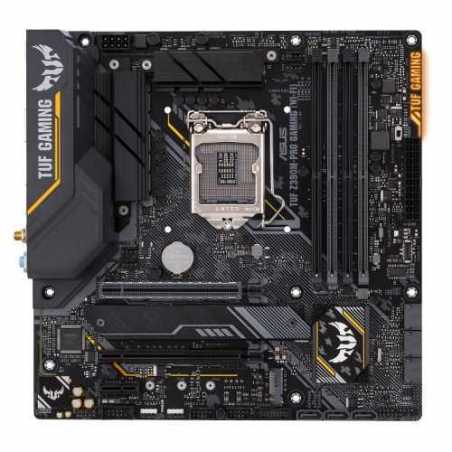

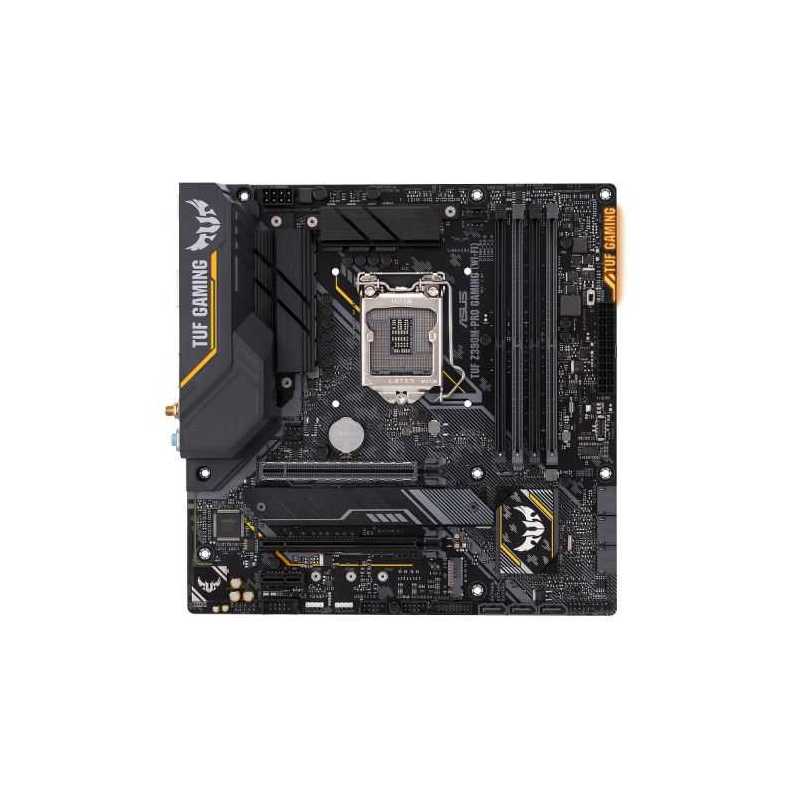

Asus TUF Z390M-PRO GAMING (WI-FI), Intel Z390, 1151, Micro ATX, XFire/SLI, HDMI, DP, Wi-Fi, RGB Lighting, M.2
£196.79
VAT included
Intel Z390 mATX gaming motherboard with OptiMem II, Aura Sync RGB LED lighting, DDR4 4266+ MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.
- TUF Protection: SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability
- OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- MemOK! II: Automatically fixes boot failures that arise due to memory overclocking and instability
- Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
- Intel Wi-Fi: The latest 802.11ac Wireless-AC 9560 integrated adapter, with 2x2 MU-MIMO and wide 160MHz channels for up to 1.73Gbps transfers
- GPU Temperature Sensing & Fan Xpert 4: Ensures every fan achieves the best balance of cooling performance and acoustics
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Arm your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF Gaming Alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Setup and Configuration
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. With simplified CPU and memory overclocking to optimize and boost performance, intelligent cooling controls for better system stability, and helpful troubleshooting tools to get you up and running quickly if you encounter problems, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Gaming Performance and Asthetic Customisation
TUF Gaming Z390 provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, immersive audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create the perfect gaming atmosphere.
Intel CPU and Chipset Features
Intel Z390 Chipset
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
Intel Z390 mATX gaming motherboard with OptiMem II, Aura Sync RGB LED lighting, DDR4 4266+ MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.
- TUF Protection: SafeSlot, ESD guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability
- OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- MemOK! II: Automatically fixes boot failures that arise due to memory overclocking and instability
- Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
- Intel Wi-Fi: The latest 802.11ac Wireless-AC 9560 integrated adapter, with 2x2 MU-MIMO and wide 160MHz channels for up to 1.73Gbps transfers
- GPU Temperature Sensing & Fan Xpert 4: Ensures every fan achieves the best balance of cooling performance and acoustics
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Arm your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF Gaming Alliance
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Setup and Configuration
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. With simplified CPU and memory overclocking to optimize and boost performance, intelligent cooling controls for better system stability, and helpful troubleshooting tools to get you up and running quickly if you encounter problems, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Gaming Performance and Asthetic Customisation
TUF Gaming Z390 provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, immersive audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create the perfect gaming atmosphere.
Intel CPU and Chipset Features
Intel Z390 Chipset
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
90MB0Y00-M0EAY0
Data sheet
- .
- 1 x MemOK! II switch, 1 x Clear CMOS, 1 x Serial Port, 1 x System panel, 2 x Lighting Control RGB Strip, 1 x USB 3.1 Gen 2 front panel connector
1 x MemOK! II switch1 x Clear CMOS1 x Serial Port1 x System panel2 x Lighting Control RGB Strip1 x USB 3.1 Gen 2 front panel connector - PCI Express
- 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
2 x PCIe 3.0 x161 x PCIe 3.0 x1 - Wireless
- Intel Wireless-AC 9560, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO, Supports channel bandwidth
Intel Wireless-AC 9560Wi-Fi 802.11 a/b/g/n/acSupports dual band frequency 2.4/5 GHzSupports MU-MIMOSupports Bluetooth 5.0Supports channel bandwidth: HT20/HT40/HT80/HT160 - RAM Speeds
- 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz
- Accessories
- Users manual, I/O Shield, 2 x SATA cables, 1 x M.2 Screw Package, 1 x ASUS 2T2R dual band Wi-Fi moving antennas, 1 x TUF Gaming Sticker, 1 x SLI HB BRIDGE(2-WAY-S), 1 x Q-Connector, 1 x TUF Certification card, 1 x SCD
Users manualI/O Shield2 x SATA cables1 x M.2 Screw Package1 x ASUS 2T2R dual band Wi-Fi moving antennas1 x TUF Gaming Sticker1 x SLI HB BRIDGE(2-WAY-S)1 x Q-Connector1 x TUF Certification card1 x SCD - USB Ports Supported
- "2 x USB 3.1 Gen2 Type-A (1 at back, 1 at mid-board), 1 x USB 3.1 Gen1 Type-C (at back), 6 x USB 3.1 Gen1 Type-A (4 at back, 2 at mid-board), 4 x USB 2.0 (at mid-board)"
2 x USB 3.1 Gen2 Type-A (1 at back, 1 at mid-board)1 x USB 3.1 Gen1 Type-C (at back)6 x USB 3.1 Gen1 Type-A (4 at back, 2 at mid-board)4 x USB 2.0 (at mid-board) - Storage
- 6 x SATA III, 1 x M.2 (2242/2260/2280/22110) - SATA & PCIe, 1 x M.2 (2242/2260/2280) - PCIe
6 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 (2242/2260/2280) - PCIe - RAID
- "RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10 - Warranty
- 3 Years
5 Years - Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- 1151 - Coffee Lake
Intel 1151 - Coffee Lake - Chipset
- Intel Z390
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports NVIDIA SLI Technology , Supports AMD CrossFireX Technology
Supports NVIDIA SLI Technology Supports AMD CrossFireX Technology - PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC S1200A 8-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45), 1 x USB 3.1 Gen 2 Type-A, 4 x USB 3.1 Gen 1 Type-A , 1 x USB 3.1 Gen 1 Type-C , 2 x Wi-Fi antenna ports, 3 x 8-channel Audio I/O
1 x PS/2 keyboard1 x PS/2 mouse1 x DisplayPort1 x HDMI1 x LAN (RJ45)1 x USB 3.1 Gen 2 Type-A4 x USB 3.1 Gen 1 Type-A 1 x USB 3.1 Gen 1 Type-C 2 x Wi-Fi antenna ports3 x 8-channel Audio I/O - Internal I/O Connectors
- 1 x USB 3.1 Gen 1, 2 x USB 2.0, 2 x M.2 Socket 3, 6 x SATA 6Gb/s, 1 x CPU Fan, 1 x CPU OPT Fan, 2 x Chassis Fan, 1 x AIO_PUMP, 1 x S/PDIF out, 1 x 8-pin EATX 12V, 1 x 24-pin EATX, 1 x Front audio
1 x USB 3.1 Gen 12 x USB 2.02 x M.2 Socket 36 x SATA 6Gb/s1 x CPU Fan1 x CPU OPT Fan2 x Chassis Fan1 x AIO_PUMP1 x S/PDIF out1 x 8-pin EATX 12V1 x 24-pin EATX1 x Front audio - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 1.3700 kg
- Graphics Ports
- 1 x HDMI, 1 x DisplayPort
1 x HDMI1 x DisplayPort - Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes
Yes (RGB)
