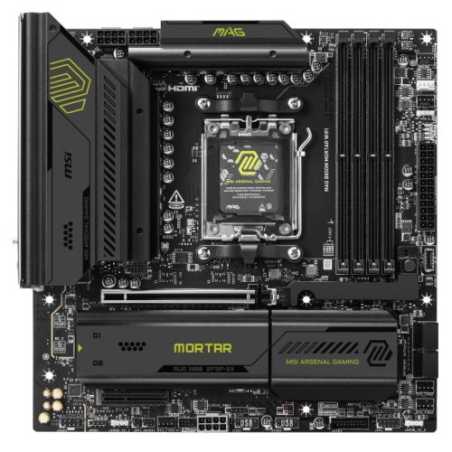

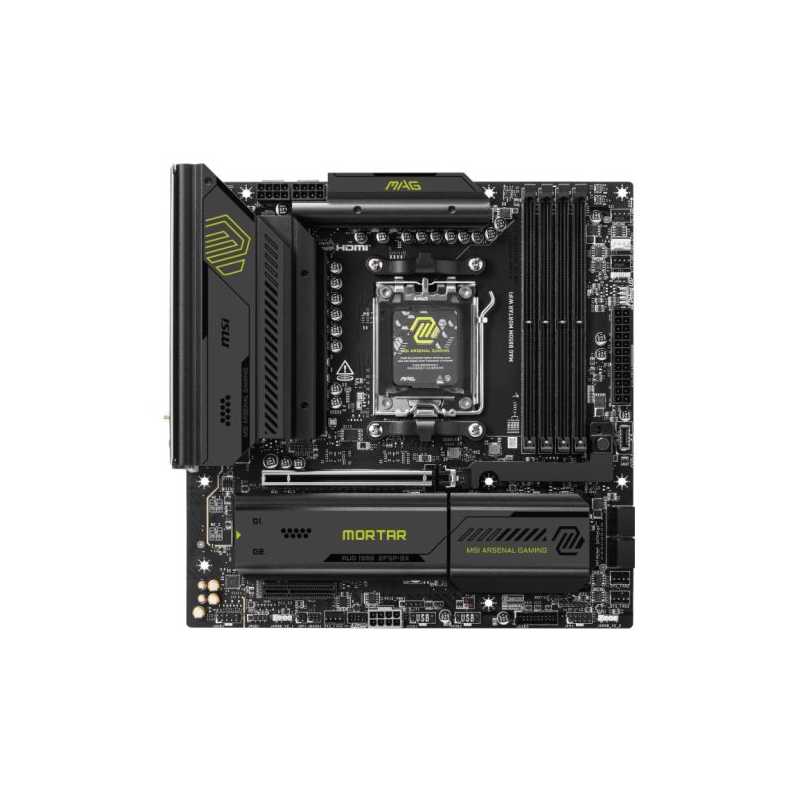

MSI MAG B850M MORTAR WIFI, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, Wi-Fi 7, 5G LAN, 3x M.2
£220.21
VAT included
Delivered within 1-2 days.
MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
MAG Series
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Triple M.2 Connectors
Triple M.2 Connectors – Onboard 3x M.2 connectors with two PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Triple M.2 Connectors
Triple M.2 Connectors – Onboard 3x M.2 connectors with two PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
MAG B850M MORTAR WIFI
42 Items
Data sheet
- .
- 1 x RGB LED1 x TPM pin TPM 2.04 x USB 2.02 x USB 5Gbps Type-A1 x USB 10Gbps Type-C
- Wireless
- Wi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4, MLO, 4KQAM
- RAM Speeds
- Up to 8200+MT/s (OC)
- Accessories
- Quick Installation GuideEU Regulatory NoticeSATA Cable2 x EZ M.2 Clips IIM.2 ScrewEZ M.2 Clip II RemoverCable StickerEZ Wi-Fi Antenna1 to 2 EZ Conn-Cable (v1)EZ Front Panel Cable
- USB Ports Supported
- Rear:1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-C3 x USB 10Gbps Type-A4 x USB 5Gbps Type-AFront:1 x USB 10Gbps Type-C2 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 4 x SATA III3 x M.2Ryzen 9000 & 7000 Series CPUs:M.2_1 (2280/2260) - PCIe 5.0 x4M.2_2 (2280/2260) - PCIe 5.0 x4Ryzen 8000 Series CPUs:M.2_1 (2280/2260) - PCIe 4.0 x4M.2_2 (2280/2260) - PCIe 4.0 x4/x2Chipset:M.2_3 (2280) - PCIe 4.0 x2
- RAID
- Supports RAID 0 , 1 and 10 for SATA storage devicesSupports RAID 0, 1 and 5 for M.2 NVMe storage devices*RAID 5 configuration is only supported by Ryzen 9000 series processors.
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AMD AM5
- Chipset
- AMD B850
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports CUDIMM, Clock Driver bypass mode only
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 5GB LAN
- Audio
- Realtek ALC4080 Codec7.1-Channel USB High Performance Audio
- Back Panel I/O Ports
- 1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-C3 x USB 10Gbps Type-A4 x USB 5Gbps Type-A1 x HDMI 2.11 x RJ-451 x Audio Line In1 x Audio Line Out1 x S/PDIF Optical Out2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x Power (PCIE_PWR 8pin)1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)4 x System Fan1 x EZ Conn-header (JAF_1)2 x Front Panel1 x Chassis Intrusion1 x Front Audio 1 x Tuning Controller3 x Addressable V2 RGB LED
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x1*Specifications may vary between CPU types
- Wi-Fi
- Yes (Wi-Fi)
