Asus ROG CROSSHAIR X870E HERO BTF, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G & 2.5G LAN, RGB, 5x M.2 *Requires a BT
search
  • Asus ROG CROSSHAIR X870E HERO BTF, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G & 2.5G LAN, RGB, 5x M.2 *Requires a BT

Asus ROG CROSSHAIR X870E HERO BTF, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G & 2.5G LAN, RGB, 5x M.2 *Requires a BT

£687.69
VAT included
Stock status: Very low
Last 22 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%

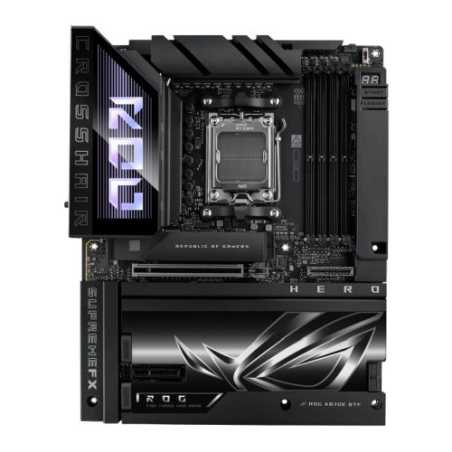

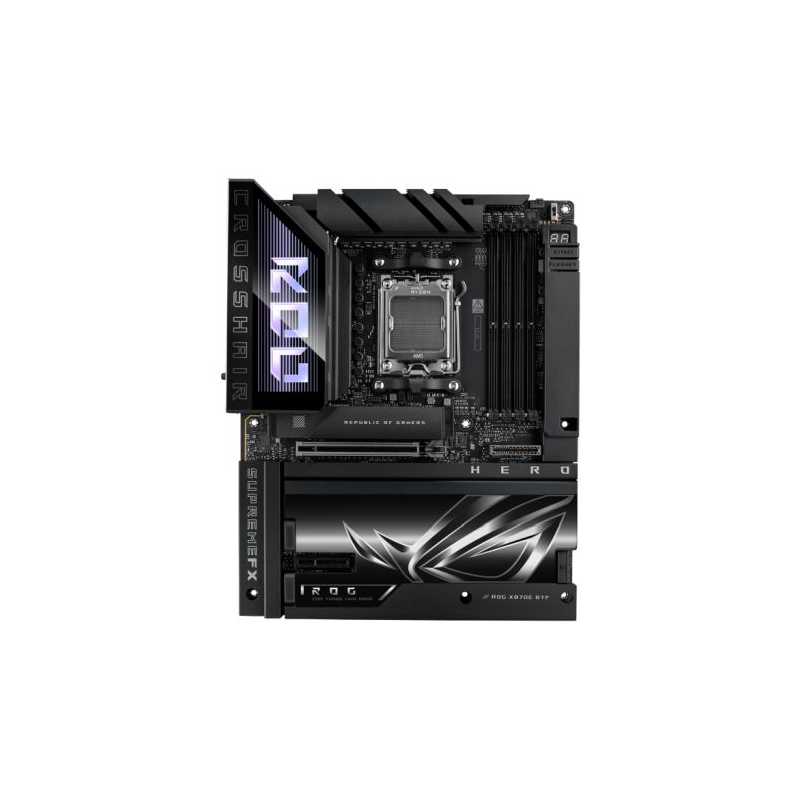

ROG Crosshair X870E Hero BTF

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.


  • AMD X870E (AM5 Socket) ATX motherboard with a hidden-connector design and graphics card high-power slot for clean cable management
  • Advanced AI PC-ready
  • 18+2+2 power stages, Dynamic OC Switcher
  • Core Flex
  • DDR5 slots with AEMP & NitroPath DRAM Technology
  • Wi-Fi 7 with ASUS WiFi Q-Antenna
  • Five M.2 slots onboard
  • Three PCIe® 5.0 M.2 slots onboard
  • PCIe® 5.0 x16 SafeSlot with PCIe® Slot Q-Release Slim and full support for next-gen graphics card
  • Two USB4® ports
  • One USB 20Gbps Type-C® front-panel connectors
  • AI Overclocking
  • AI Cooling II
  • AI Networking II
  • Polymo Lighting II





Advanced BTF Design

With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.
ASUS
90MB1MX0-M0EAY0
22 Items

Data sheet

.
1 x USB drive with utilities and drivers1 x Quick start guide
Wireless
Wi-Fi 7 (MediaTek MT7927)2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 320MHz bandwidthBluetooth v5.4
RAM Speeds
8200+MT/s(OC) with Ryzen 9000 Series CPUs8600+MT/s(OC) with Ryzen 8000 Series CPUs8000+MT/s(OC) with Ryzen 7000 Series CPUs
Accessories
1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna1 x Q-connector2 x M.2 Q-Latch package3 x M.2 Q-Slide package5 x M.2 rubber package1 x ROG stickers1 x ROG thank you card1 x ROG Bottle Opener
USB Ports Supported
Rear:2 x USB4 (40Gbps) Type-C8 x USB 10Gbps (6 Type-A + 2 Type-C)Front:2 x USB 20Gbps Type-C4 x USB 5Gbps4 x USB 2.0
RAID
Ryzen 9000 Series CPUs: RAID 0/1/5/10Ryzen 8000 Series CPUs: RAID 0/1Ryzen 7000 Series CPUs: RAID 0/1/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM5
Chipset
AMD X870E
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)ECC and Non-ECC, Un-buffered MemorySupports AMD EXPONitroPath DRAM TechnologyASUS Enhanced Memory Profile
RAM Slots
4 x DIMM
Maximum Memory
256GB
LAN
5GB LAN & 2.5GB LAN
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Back Panel I/O Ports
2 x USB4 (40Gbps) Type-C8 x USB 10Gbps (6 Type-A + 2 Type-C)1 x HDMI1 x Wi-Fi module1 x Intel 2.5Gb Ethernet1 x Realtek 5Gb Ethernet2 x Gold-plated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button 1 x Clear CMOS button
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan1 x W_PUMP+1 x 24-pin Main2 x 8-pin +12V CPU1 x Graphics card high power slot1 x 12V-2X6 Auxiliary5 x M.2 (Key M) 4 x SATA 6Gb/s2 x USB 20Gbps Type-C
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI2 x USB4 (40Gbps) support USB Type-C display outputs
Additional Features
NOTE: - This motherboard requires a chassis that is BTF compatible - This motherboard supports Advanced BTF graphics cards - Click here to learn more about Asus BTF
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
5GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
9000 & 7000 CPUs:1 x PCIe 5.0 x16 (supports x16 or x8/x4/x4 modes)8700 & 8600 & 8400 CPUs:1 x PCIe 4.0 x16 (Total bandwidth for x8)8500 & 8300:1 x PCIe 4.0 x16 (Total bandwidth for x4)*specifications may vary between CPU types
Wi-Fi
Yes (Wi-Fi)
Back-Connect Support
Yes (Back-Connect)
