- Out of stock

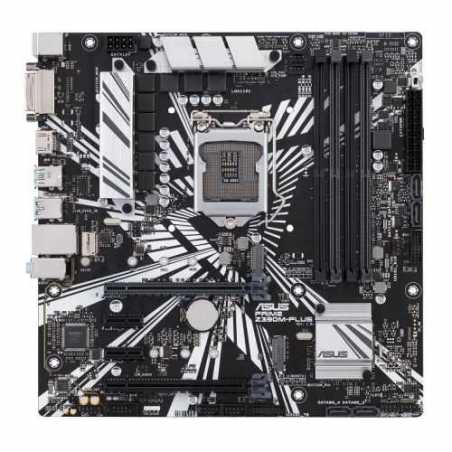

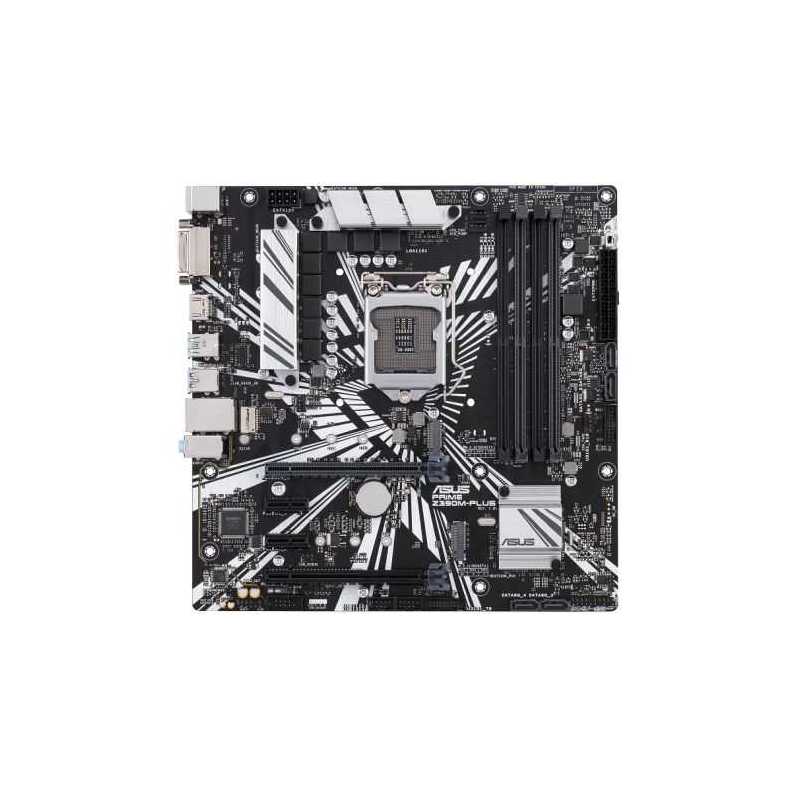

Asus PRIME Z390M-PLUS, Intel Z390, 1151, Micro ATX, XFire, DVI, HDMI, M.2
£162.15
VAT included
Intel LGA 1151 mATX motherboard with OptiMem II, DDR4 4266 MHz, Dual M.2, HDMI, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2
- OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Enhanced power solution: Premium components provide better power efficiency
- UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
- Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
- Ultrafast connectivity: Dual native M.2 and NVMe PCIe RAID support for lightning-fast storage speeds
- 5X Protection III: Multiple hardware safeguards for all-round protection
Prime
Dressed in professional attire, the Prime Z390 series caters to daily users and content creators with well-rounded specs and features. Combining the benefits of the latest processors with essential ASUS design and engineering, Prime Z390 provides a wealth of options for performance tuning via intuitive software and firmware features.
Tune it your Way
______________________________________________________________
Prime Z390 simplifies CPU overclocking with software and extensive tweaking options that give beginners and seasoned overclockers alike the tools to build well-tuned machines. A new memory trace layout provides stability and compatibility for both traditional DIMMs and RGB-infused memory, letting you pair a broad choice of DRAM kits with your build.
Cool and Reliable
______________________________________________________________
Prime Z390M-Plus is designed for builders who want essential ASUS reliability and performance. More CPU cores create power-delivery challenges, so Prime Z390M-Plus has extra power phases and comprehensive cooling features for optimal performance.
Cooler by design
Prime Z390M-Plus features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
- Multiple temperature sources
- AIO pump
- 4-pin PWM/DC fan
- Smart protection
Visual Beauty
______________________________________________________________
ASUS Lighting Control
Brighten up your build
With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolor lighting displays with static, blinking, fading, and strobing effects.
Upgrade to Unrivalled Audio
______________________________________________________________
Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Premium Japanese-made audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
Intel Z390 chipset
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
Intel LGA 1151 mATX motherboard with OptiMem II, DDR4 4266 MHz, Dual M.2, HDMI, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2
- OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Enhanced power solution: Premium components provide better power efficiency
- UEFI BIOS: New UEFI options include a search function that allows you to find settings easily
- Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
- Ultrafast connectivity: Dual native M.2 and NVMe PCIe RAID support for lightning-fast storage speeds
- 5X Protection III: Multiple hardware safeguards for all-round protection
Prime
Dressed in professional attire, the Prime Z390 series caters to daily users and content creators with well-rounded specs and features. Combining the benefits of the latest processors with essential ASUS design and engineering, Prime Z390 provides a wealth of options for performance tuning via intuitive software and firmware features.
Tune it your Way
Prime Z390 simplifies CPU overclocking with software and extensive tweaking options that give beginners and seasoned overclockers alike the tools to build well-tuned machines. A new memory trace layout provides stability and compatibility for both traditional DIMMs and RGB-infused memory, letting you pair a broad choice of DRAM kits with your build.
Cool and Reliable
Prime Z390M-Plus is designed for builders who want essential ASUS reliability and performance. More CPU cores create power-delivery challenges, so Prime Z390M-Plus has extra power phases and comprehensive cooling features for optimal performance.
Cooler by design
Prime Z390M-Plus features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS.
- Multiple temperature sources
- AIO pump
- 4-pin PWM/DC fan
- Smart protection
Visual Beauty
Brighten up your build
With 5050 RGB strips connected to the RGB header, you can create your own stunning multicolor lighting displays with static, blinking, fading, and strobing effects.
Upgrade to Unrivalled Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Premium Japanese-made audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
Intel Z390 chipset
The Intel® Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Ready for Socket 1151 for 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
90MB0Z60-M0EAY0
Data sheet
- .
- 1 x COM port, 1 x S/PDIF out, 1 x MemOK!_II switch, 1 x Clear CMOS jumper
1 x COM port1 x S/PDIF out1 x MemOK!_II switch1 x Clear CMOS jumper - PCI Express
- "1 x PCIe 3.0 x16 slots (supports x16, x8+x4+x4), 1 x PCIe 3.0 x16 slot (max. at x4 mode), 2 x PCIe 3.0 x1 slots"
1 x PCIe 3.0 x16 slots (supports x16, x8+x4+x4)1 x PCIe 3.0 x16 slot (max. at x4 mode)2 x PCIe 3.0 x1 slots - Wireless
- -
- RAM Speeds
- 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz
4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz - Accessories
- 2 x SATA 6Gb/s cables, 1 x IO Shield, 1 x M.2 Screw Package, 1 x Support DVD, 1 x Users manual
2 x SATA 6Gb/s cables1 x IO Shield1 x M.2 Screw Package1 x Support DVD1 x Users manual - USB Ports Supported
- "2 x USB 3.1 Gen 2 (Type A at back) , 8 x USB 3.1 Gen 1 (4 at baack, 4 at mid-board), 4 x USB 2.0 (4 at mid-board)"
2 x USB 3.1 Gen 2 (Type A at back) 8 x USB 3.1 Gen 1 (4 at baack, 4 at mid-board)4 x USB 2.0 (4 at mid-board) - Storage
- 4 x SATA III, 1 x M.2 Socket (2242/2260/2280) - PCIe, 1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe
4 x SATA III1 x M.2 Socket (2242/2260/2280) - PCIe1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe - RAID
- "RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10 - Warranty
- 3 Years
5 Years - Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- 1151 - Coffee Lake
Intel 1151 - Coffee Lake - Chipset
- Intel Z390
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD 2-Way/Quad-GPU CrossFireX
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887 8-channel high definition audio CODEC
- Back Panel I/O Ports
- 1 x DVI, 1 x HDMI, 1 x PS/2 mouse, 1 x PS/2 keyboard, 1 x LAN (RJ45), 2 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1, 3 x Audio jacks
1 x DVI1 x HDMI1 x PS/2 mouse1 x PS/2 keyboard1 x LAN (RJ45)2 x USB 3.1 Gen 24 x USB 3.1 Gen 13 x Audio jacks - Internal I/O Connectors
- 2 x USB 3.1 Gen 1, 2 x USB 2.0, 2 x M.2, 4 x SATA 6.0Gb/s, 1 x RGB, 1 x CPU Fan, 1 x AIO_Pump, 2 x Chassis Fan, 1 x Front audio, 1 x 24-pin EATX, 1 x 8-pin EATX 12V, 1 x System Panel
2 x USB 3.1 Gen 12 x USB 2.02 x M.24 x SATA 6.0Gb/s1 x RGB1 x CPU Fan1 x AIO_Pump2 x Chassis Fan1 x Front audio1 x 24-pin EATX1 x 8-pin EATX 12V1 x System Panel - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 0.9700 kg
- Graphics Ports
- 1 x DVI-D, 1 x HDMI
1 x DVI-D1 x HDMI - Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- No
Specific References
- EAN13
- 4718017126625
