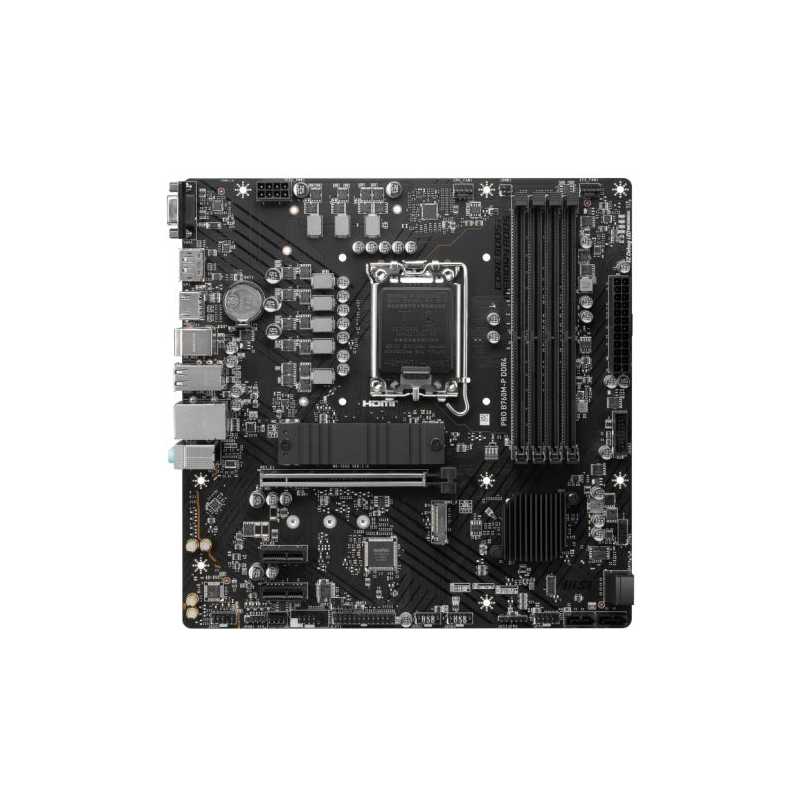

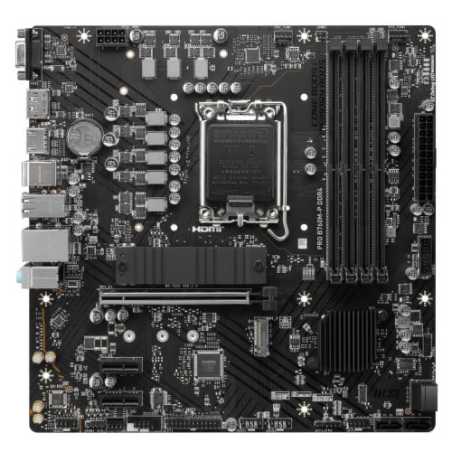

MSI PRO B760M-P DDR4, Intel B760, 1700, Micro ATX, 4 DDR4, VGA, HDMI, DP, GB LAN, 2x M.2
£100.17
VAT included
Delivered within 1-2 days.
PRO B760M-P DDR4 is designed with tons of flexible tools with DDR4 memory version.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Business Elegance Redefined
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
USB 3.2 Gen 2 Type-C
Synergize with a MSI motherboard through bridging with a USB 3.2 Gen 2 Type-C port for convenient access.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
PRO B760M-P DDR4
52 Items
Data sheet
- .
- 2 x USB 5Gbps Type-A
- Wireless
- -
- RAM Speeds
- up to 4800+(OC)
- Accessories
- EU Regulatory NoticeQuick Installation Guide2 x M.2 Screw / Standoff SetsSATA CableI/O Shield
- USB Ports Supported
- Rear:1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-A 4 x USB 2.0Front:2 x USB 5Gbps Type-A 4 x USB 2.0
- Storage
- 4 x SATA III2 x M.2M.2_1 (2280/2260/2242) - PCIe 4.0 x4M.2_2 (2280/2260/2242) - SATA & PCIe 4.0 x4
- RAID
- Supports RAID 0, 1, 5 and 10 for SATA storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel B760
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)Supports non-ECC, un-buffered memorySupports Intel XMP
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- GB LAN
- Audio
- Realtek ALC897 Codec7.1-Channel High Definition Audio
- Back Panel I/O Ports
- 1 x USB 10Gbps Type-C 1 x USB 5Gbps Type-A 4 x USB 2.01 x DisplayPort 1.41 x HDMI 1.41 x VGA1 x RJ-451 x Audio Line In1 x Audio Line Out1 x Microphone In
- Internal I/O Connectors
- 1 x Power (ATX_PWR)1 x Power (CPU_PWR)1 x CPU Fan2 x System Fan2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Printer Port1 x Com Port1 x RGB LED1 x TPM pin TPM 2.04 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x VGA1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x162 x PCIe 4.0 x1
