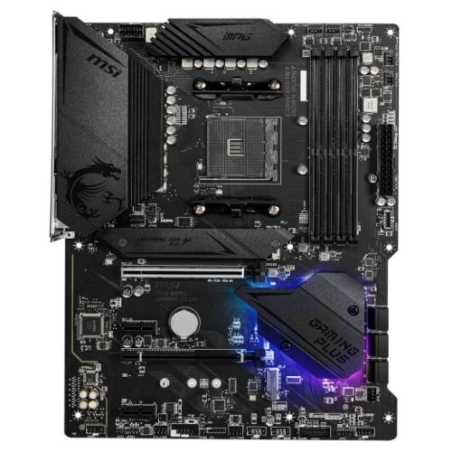

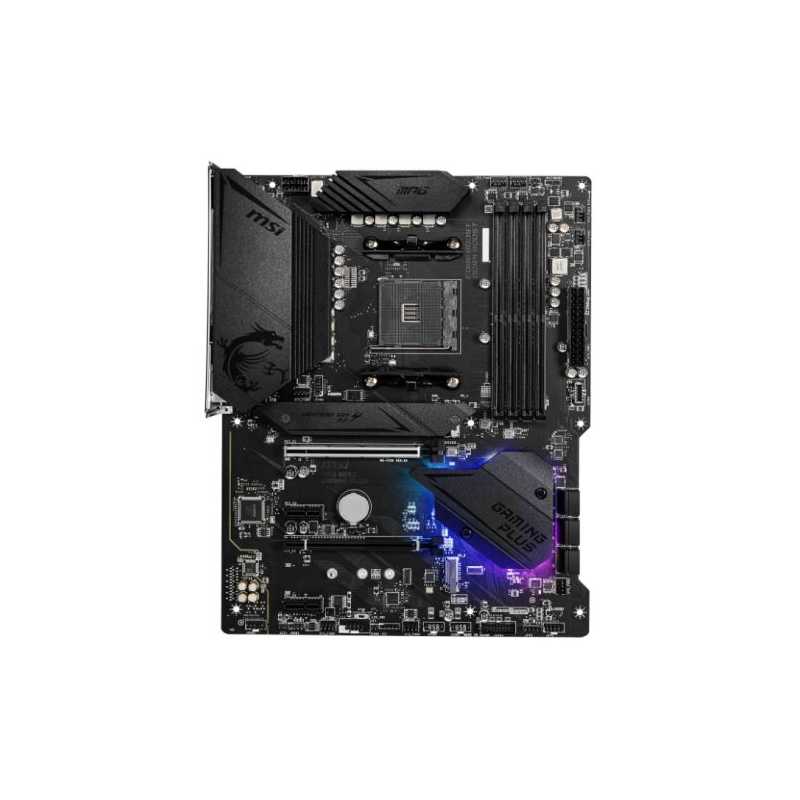

MSI MPG B550 GAMING PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, GB LAN, RGB, 2x M.2
search
  • MSI MPG B550 GAMING PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, GB LAN, RGB, 2x M.2

MSI MPG B550 GAMING PLUS, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, GB LAN, RGB, 2x M.2

£120.20
VAT included
Stock status: High
85 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization.

Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
  • Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
  • Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
  • Audio Boost: Reward your ears with studio grade sound quality





Flash BIOS Button

Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.





Pre-installed I/O Shielding

Better EMI protection and more convenience for installation.





EZ LED Control

One button to control LED on/off easily.





Front Type-C USB 3.2 Gen 1 5Gbps

Compatible with the latest PC chassis and perfect for external drives and other mobile devices.





M.2 Shield FROZR

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.





Lightning Gen4 Solution

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.





Extended Heatsink Design

MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.





2oz Thickened Copper PCB

An enhanced PCB design improves heat dissipation and performance reliability.




MSI
MPG B550 GAMING PLUS
85 Items

Data sheet

.
1 x Chassis Intrusion1 x 4-pin RGB LED2 x 3-pin RAINBOW LED1 x TPM module1 x Clear CMOS jumper
Wireless
-
RAM Speeds
Up to 4400MHz (OC)
Accessories
User ManualQuick Installation GuideMSI Case BadgeProduct Registration CardMSI Product CatalogCase Screw Guide2 x SATA CablesPromotion CardDriver DVD
USB Ports Supported
Rear:1 x USB 10Gbps Type-C1 x USB 10Gbps 1 Type-A2 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps4 x USB 2.0
Storage
6 x SATA III2 x M.2M.2_1 (2242/2260/2280/22110) - SATA & PCIe 4.0/3.0 x4M.2_2 (2242/2260/2280) - PCIe 3.0 x4
RAID
Supports RAID 0, 1 and 10 for SATA storage devicesSupports RAID 0 and 1 for M.2 NVMe storage devices
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM4
Chipset
AMD B550
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)Supports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode)Supports un-buffered memory
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports 2-Way AMD CrossFire
LAN
GB LAN
Audio
7.1-Channel High Definition Audio
Back Panel I/O Ports
1 x USB 10Gbps Type-C1 x USB 10Gbps 1 Type-A2 x USB 5Gbps Type-A4 x USB 2.01 x DisplayPort1 x HDMI1 x PS/21 x RJ-451 x Audio Line In3 x Audio Line Out1 x Microphone In1 x S/PDIF Optical Out
Internal I/O Connectors
1 x 24-pin ATX main1 x 8-pin ATX 12V6 x SATA 6Gb/s2 x M.2 (M-Key)1 x USB 3.2 Gen1 5Gbps Type-C1 x USB 3.2 Gen1 5Gbps2 x USB 2.01 x 4-pin CPU fan1 x 4-pin water-pump fan6 x 4-pin system fan1 x Front panel audio2 x System panel
CPU Support
Click here for CPU supportNote: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics ProcessorGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
1 x PCIe 4.0/3.0 x161 x PCIe 3.0 x16 (supports x4 speed)2 x PCIe 3.0 x1
