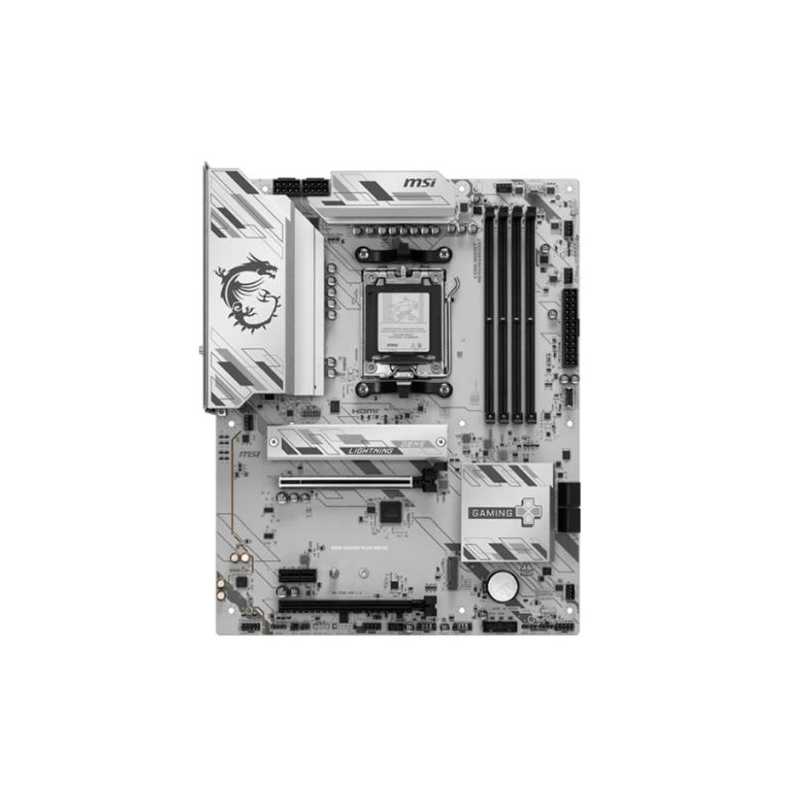

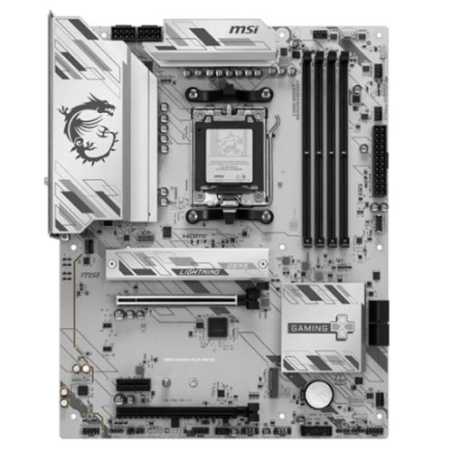

MSI B850 GAMING PLUS WIFI6E, AMD B850, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 2x M.2, White
£163.75
VAT included
Delivered within 1-2 days.
The B850 GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience.
Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution - The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ PCIe Clip II, EZ M.2 Clip II, EZ-Conn Design and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Pre-installed I/O Shielding
Better EMI protection and more convenience for installation
EZ Antenna
EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
B850 GAMING PLUS WIFI6E
32 Items
Data sheet
- .
- 1 x RGB LED1 x TPM pin TPM 2.04 x USB 2.02 x USB 5Gbps Type-A1 x USB 10Gbps Type-C
- Wireless
- Wi-Fi 6E SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA
- RAM Speeds
- Up to 8200+MT/s (OC)
- Accessories
- EZ Wi-Fi AntennaCable StickerEZ M.2 Clip II Remover1 to 2 EZ Conn-Cable (V1)SATA CableEU Regulatory NoticeQuick Installation Guide
- USB Ports Supported
- Rear:1 x USB 10Gbps Type-C 3 x USB 10Gbps Type-A4 x USB 5Gbps Type-AFront:1 x USB 10Gbps Type-C2 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 4 x SATA III2 x M.2Ryzen 9000 & 7000 Series CPUs:M.2_1 (22110/2280) - PCIe 5.0 x4M.2_2 (2280/2260) - PCIe 4.0 x4Ryzen 8000 Series CPUs:M.2_1 (22110/2280) - PCIe 4.0 x4M.2_2 (2280/2260) - PCIe 4.0 x4/x2
- RAID
- Supports RAID 0, 1 and 10 for SATA storage devicesSupports RAID 0 and 1 for M.2 NVMe storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD B850
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports CUDIMM, Clock Driver bypass mode only
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC8977.1-Channel High Definition Audio
- Back Panel I/O Ports
- 1 x USB 10Gbps Type-C 3 x USB 10Gbps Type-A4 x USB 5Gbps Type-A1 x DisplayPort 1.41 x HDMI 2.11 x RJ-451 x Audio Line In1 x Audio Line Out1 x Microphone In2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)4 x System Fan1 x EZ Conn-header (JAF_1)2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Com Port1 x Tuning Controller3 x Addressable V2 RGB LED
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 4.0 x41 x PCIe 3.0 x1*Specifications may vary between CPU types
- Wi-Fi
- Yes (Wi-Fi)
