- Online only
- New

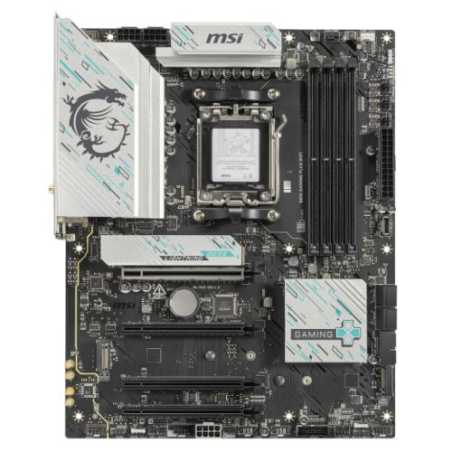

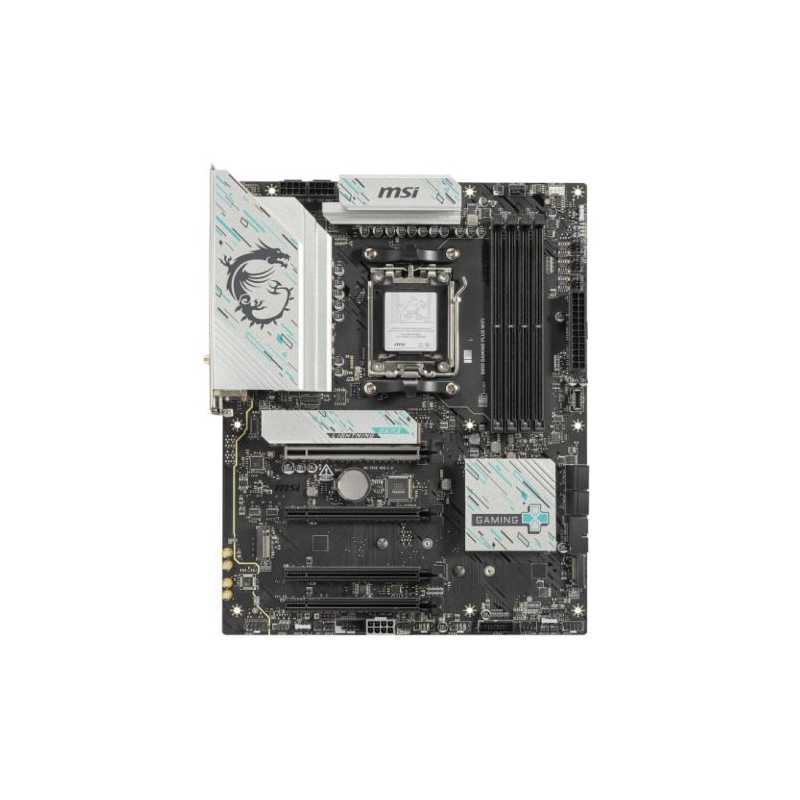

MSI B850 GAMING PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, DP, Wi-Fi 7, 5G LAN, 3x M.2
£208.92
VAT included
Delivered within 1-2 days.
The B850 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience.
Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
12+2+1 DRPS Power Design
Unlock and maintain peak performance with the flagship VRM design featuring 12+2+1 digital power phases. Equipped with dual power connectors and a 60A Smart Power Stage, the B850 GAMING PLUS WIFI is fully prepared to handle the demands of high-end processors.
Optimised PCB
The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission.
Unleash World-Class DDR5 Performance
Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the B850 GAMING PLUS WIFI is primed to deliver world-class memory performance.
Frozr Cooling Design
- Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.
- M.2 Shield Frozr - Achieve reliable operation and incredible performance with this strengthened M.2 thermal solution.
- Heavy Plated VRM Heatsink - The upper MOS is protected with the VRM heatsink for efficient heat dissipation.
- 7W/mK Thermal Pad - Premium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.
- Enlarged Chipset Heatsink - The enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.
DIY 2.0
Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.
Triple M.2 Slots
MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.
WiFi 7
The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.
High-Bandwidth, Low Latency LAN
MSI's premium 5G network solution provides incredible transfer speeds for demanding users.
B850 GAMING PLUS WIFI
144 Items
Data sheet
- .
- 3 x Addressable V2 RGB LED1 x RGB LED1 x TPM pin TPM 2.04 x USB 2.04 x USB 5Gbps Type-A1 x USB 5Gbps Type-C
- Wireless
- Wi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4, MLO, 4KQAM
- RAM Speeds
- Up to 8200+MT/s (OC)
- Accessories
- Quick Installation GuideEU Regulatory NoticeEZ Wi-Fi AntennaSATA Cable3 x EZ M.2 Clip IIEZ M.2 Clip II Remover1 to 2 EZ Conn-Cable (V1)
- USB Ports Supported
- Rear:2 x USB 10Gbps Type-C1 x USB 10Gbps Type-A1 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 5Gbps Type-C4 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 4 x SATA III3 x M.2Ryzen 9000 & 7000 Series CPUs:M.2_1 (2280/2260) - PCIe 5.0 x4M.2_2 (22110/2280) - PCIe 4.0 x4Ryzen 8000 Series CPUs:M.2_1 (2280/2260) - PCIe 4.0 x4M.2_2 (22110/2280) - PCIe 4.0 x4Chipset:M.2_3 (2280/2260) - PCIe 4.0 x2
- RAID
- Supports RAID 0 and 1 for SATA storage devicesSupports RAID 0 and 1 for M.2 NVMe storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD B850
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports CUDIMM, Clock Driver bypass mode only
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 5GB LAN
- Audio
- Realtek ALC8977.1-Channel High Definition Audio
- Back Panel I/O Ports
- 2 x USB 10Gbps Type-C1 x USB 10Gbps Type-A1 x USB 5Gbps Type-A4 x USB 2.01 x DisplayPort 1.21 x RJ-451 x Audio Line Out1 x Microphone In1 x S/PDIF Optical Out2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x Power (PCIE_PWR 8pin)1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)4 x System Fan1 x EZ Conn-header2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Com Port1 x Tuning Controller
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 2.3000 kg
- Graphics Ports
- 1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x162 x PCIe 3.0 x1*Specifications may vary between CPU types
- Wi-Fi
- Yes (Wi-Fi)
