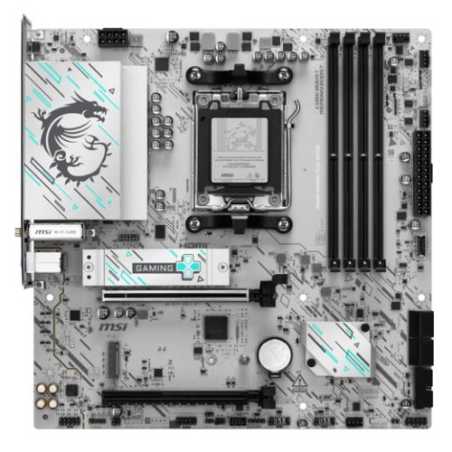

MSI B840M GAMING PLUS WIFI6E, AMD B840, AM5, Micro ATX, 4 DDR5, HDMI, Wi-Fi 6E, 2.5G LAN, 2x M.2, White
£146.80
VAT included
Delivered within 1-2 days.
The B840M GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and Wi-Fi solution for gamers seeking a comprehensive experience.
Featuring Wi-Fi 6E, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr II are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- High-speed Connectivity: Wi-Fi 6E with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
EZ PCIe Clip II
Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
B840M GAMING PLUS WIFI6E
38 Items
Data sheet
- .
- 1 x RGB LED1 x TPM pin TPM 2.04 x USB 2.02 x USB 5Gbps Type-A1 x USB 5Gbps Type-C
- Wireless
- Wi-Fi 6E SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA
- RAM Speeds
- Up to 8000+MT/s (OC)
- Accessories
- Quick Installation GuideEU Regulatory NoticeEZ Wi-Fi AntennaSATA CableEZ M.2 Clip IIEZ M.2 Clip II Remove1 to 2 EZ Conn-Cable (v1)
- USB Ports Supported
- Rear:1 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 10Gbps Type-C2 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 4 x SATA III2 x M.2M.2_1 (2280/2260) - PCIe 4.0 x4M.2_2 (2280/2260) - PCIe 4.0 x4
- RAID
- Supports RAID 0, 1 and 10 for SATA storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AMD AM5
- Chipset
- AMD B840
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports CUDIMM, Clock Driver bypass mode only
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC8977.1-Channel High Definition Audio
- Back Panel I/O Ports
- 1 x USB 10Gbps Type-C 1 x USB 10Gbps Type-A2 x USB 5Gbps Type-A4 x USB 2.01 x HDMI 2.11 x RJ-451 x Audio Line In1 x Audio Line Out1 x Microphone In2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)1 x Power (CPU_PWR)1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)3 x System Fan1 x EZ Conn-header (JAF_1)2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Com Port1 x Tuning Controller3 x Addressable V2 RGB LED
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 3.0 x4*Specifications may vary between CPU types
- Wi-Fi
- Yes (Wi-Fi)
