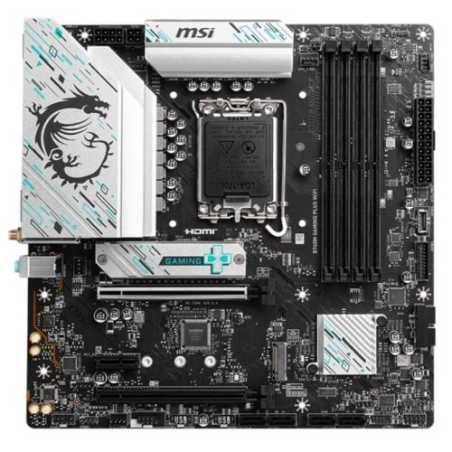

MSI B760M GAMING PLUS WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, 2 HDMI, 2 DP, Wi-Fi 6E, 2.5G LAN, 2x M.2
£141.16
VAT included
Delivered within 1-2 days.
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Lightning Gen 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
Reinforced, Heavy Soldered Connections
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Fast and Future-Ready Storage
B760M GAMING PLUS WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
USB Front Type-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Latest DDR5 Memory with SMT Slot
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760M GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.
Easy Overclocking with XMP Profile
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
Memory Extension Mode
Memory Extension Mode provides optimized memory parameters for enhanced capability at the same frequency, achieving lower latency and higher performance. Furthermore, Memory Extension Mode can combine XMP profiles to maximize memory frequency, enabling users to effortlessly discover the best configuration based on their requirements.
Extend Your RGB Experience with Ease
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
High-Bandwidth and Low-Latency Network
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.3
- 2.5G LAN
B760M GAMING PLUS WIFI
127 Items
Data sheet
- .
- 4 x USB 2.04 x USB 5Gbps Type-A1 x USB 5Gbps Type-C
- Wireless
- Intel Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA
- RAM Speeds
- Up to 6800+(OC)
- Accessories
- EU Regulatory NoticeQuick Installation Guide2 x M.2 Screw/Standoff SetsSATA CableWi-Fi AntennaI/O Shield
- USB Ports Supported
- Rear:2 x USB 10Gbps Type-A2 x USB 5Gbps Type-A2 x USB 2.0Front:1 x USB 5Gbps Type-C4 x USB 5Gbps Type-A4 x USB 2.0
- Storage
- 4 x SATA III2 x M.2M.2_1 (2242/2260/2280) - PCIe 4.0 x4M.2_2 (2242/2260/2280) - SATA & PCIe 4.0 x4
- RAID
- Supports RAID 0, 1, 5 and 10 for SATA storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel B760
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports non-ECC, un-buffered memorySupports Intel XMP 3.0 OC
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC897 Codec7.1-Channel High Definition Audio
- Back Panel I/O Ports
- 2 x USB 10Gbps Type-A2 x USB 5Gbps Type-A2 x USB 2.02 x DisplayPort 1.42 x HDMI 2.11 x PS/21 x RJ-451 x Audio Line In1 x Audio Line Out1 x Microphone In2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x CPU Fan1 x Pump Fan2 x System Fan2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Com Port2 x Addressable V2 RGB LED1 x RGB LED1 x TPM pin TPM 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 2 x HDMI2 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 2 x PCIe 4.0 x161 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
