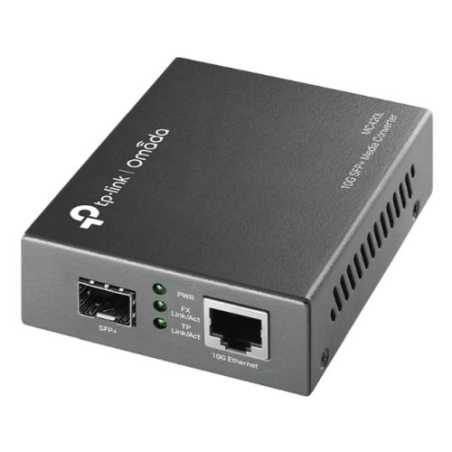

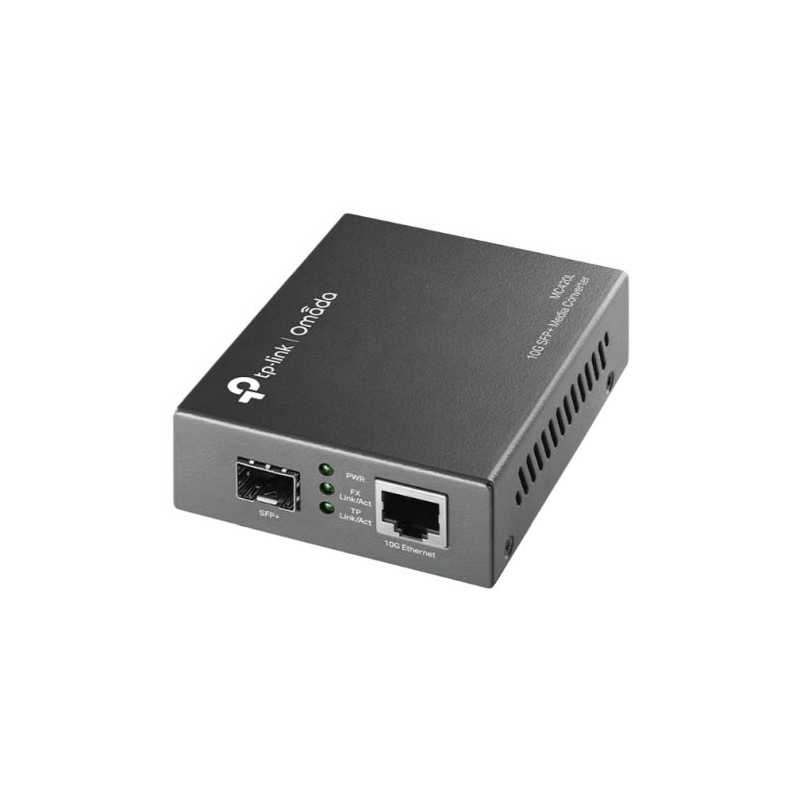

TP-LINK (MC420L) Omada 10G Multi-Gigabit SFP Media Converter, Auto-negotiation of Half-Duplex / Full-Duplex
search
  • TP-LINK (MC420L) Omada 10G Multi-Gigabit SFP Media Converter, Auto-negotiation of Half-Duplex / Full-Duplex

TP-LINK (MC420L) Omada 10G Multi-Gigabit SFP Media Converter, Auto-negotiation of Half-Duplex / Full-Duplex

£85.78
VAT included
Stock status: Very low
Last 24 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



Omada 10G Multi-Gigabit SFP Media Converter

  • 1x 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
  • FX port supports hot-swappable
  • Maximum transmission distance depends on the inserting SFP





What This Product Does

The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.



TP-LINK
MC420L
24 Items

Data sheet

Warranty
2 Years
Package Type
Retail
Type
SFP Media Converter
Power Supply
External Power AdapterMax Power Consumption: 4.12W
Package Contents
MC420LPower AdapterInstallation Guide
Ports
1 x SFP+ port1 x 1G/2.5G/5G/10Gbps RJ45 port
Enclosure Type
External
Basic Functions
Auto-negotiation of Half-Duplex / Full-Duplex transfer modeMaximum transmission distance depends on the inserting SFP module
Dimensions (WxDxH)
94.5 x 73.0 x 27.0 mm
Standards and Protocols
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Environment
Operating Temperature: 0°C~50°CStorage Temperature: -40°C~70°C(-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
LED Indicators
PWR, Link/Act
Wave Length
SFP module dependant
Network Media 10BASE-T
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)
Network Media 1000BASE-T
UTP category 5, 5e cable (maxium 100m)EIA/TIA-568 100Ohm STP (maximum 100m)
Network Media 10GBASE-R
Multi-mode/Single-mode SFP+ module
Network Media 1000BASE-X
Multi-mode/Single-mode SFP module
