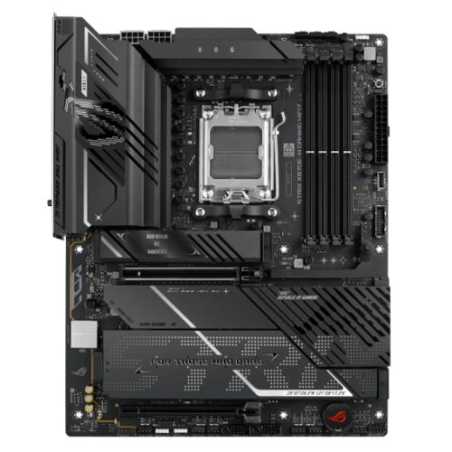

Asus ROG STRIX X870E-H GAMING WIFI7, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, PD 30W, 4x M.2
£365.59
VAT included
Delivered within 1-2 days.
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard.
Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.
- 16+2+1 power stages
- Dynamic OC Switcher
- Core Flex
- DDR5 slots with AEMP
- WiFi 7 with ASUS WiFi Q-Antenna
- Four M.2 slots all with M.2 Q-Release
- PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release
- Two USB4® ports
- USB 10Gbps Type-C® with up to 30W PD/PPS Fast-charge
- ASUS AI Advisor
- AI Cache Boost
- AI Overclocking
- AI Networking II
- AI Cooling II
Asus AI Intelligence
- AI Cache Boost - Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
- Asus AI Advisor - Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
- AI Overclocking - ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
- AI Networking II - AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7
- AI Cooling II - Balance the thermals and acoustics of any build with a single click.
Overclocking
- Dynamic OC Switcher - Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
- Core Flex - Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.
- PBO Enhancement - AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Memory
- DDR5 Domination - The Strix X870E-H is primed and ready for enthusiast-grade kits courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support.
- DIMM Fit / DIMM Fit Pro - DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.
- AEMP - ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
ROG STRIX Ultimate Power Design
- Dual ProCool II Power Connectors - ProCool II connectors are precision-built to ensure flush contact with PSU power lines. A metal sheath improves heat dissipation and lowers electrical impedance.
- 16+2+1 Power Stages - The VRM features 16+2+1 power stages, each rated to handle 80 amps
- Alloy Chokes and Durable Capacitors - Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
- Eight-Layer PCB - A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
Cooling
- M.2 Heatsinks - Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.
- VRM Heatsink Array - Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink.
- CPU Fan Headers - A dedicated pair of PWM/DC fan headers provides easy access to CPU coolers.
- AIO Pump Fan Header - A dedicated PWM/DC header connects self-contained water-cooling setups.
- 4-Pin Fan Headers - The Strix X870E-H features five chassis fan headers, each supporting auto-detection of PWM or DC fans.
Leading Connectivity
- WIFI 7 - The revolutionary WiFi 7 is faster than standard WiFi 6*, thanks to tech like 160 MHz channels** on the 6GHz band and 4K QAM*. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.
- ASUS WiFi Q-Antenna - Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.
- Realtek 5Gb Ethernet - Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5Gb Ethernet.
- PCIe 5.0 -Fully embracing the new standard, the Strix X870E-H offers end-to-end PCIe 5.0 support. The topmost x16 expansion slot is also protected with a SafeSlot retention bracket to bear the weight of the latest graphics cards. Meanwhile, two of the onboard M.2 slots are geared for blistering 16 GB/s read and write speeds, while the rest can deliver still-impressive 8 GB/s transfers. Every M.2 slot is covered with substantial heatsinks to dispatch the heat of next-gen drives.
- Dual USB4® Ports - Each USB4® port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.*
- USB Wattage Watcher - USB Wattage Watcher allows users to monitor the current wattage delivered to a device connected to the USB 10Gbps Type-C® rear I/O port. With USB Wattage Watcher, users can glance at their device's charging wattage in real-time and check on their device's Fast-Charging status.
- Dolby Atmos - ROG and Dolby® have partnered to bring superior gaming audio quality to users. Dolby Atmos expands on traditional surround sound systems by adding height channels, which enables immersive three-dimensional audio to be perceived from above, below and around the listener.
- SupremeFX - ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix X870E-H implementation features the ALC1220P codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
- PCIe® Slot Q-Release - A physical button unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
- M.2 Q-Release - All four M.2 slots feature a convenient switch* to quickly remove the heatsink, eliminating the need for tiny screws during SSD installation. Its strong locking mechanism also provides a snug contact surface, helping to ensure reliable heat dissipation for your SSD.
- New M.2 Q-Latch - The new Q-Latch design allows for tool-free installation or removal of M.2 SSDs with just one press.
- Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
- Q-LED - The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. Builders can use the Q-LED feature to correct power delivery issues affecting their motherboard, and it can also alert them when memory modules have not been properly installed -- even before attempting to boot a newly built PC.
- Start Button - This convenient button removes the need to manually jump hard-to-reach pins during testing and troubleshooting.
- Clear CMOS & BIOS Flashback™ - The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected. BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed
BIOS
- BIOS Q-Dashboard - Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.
- UEFI BIOS - The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Software Utilities
Asus GlideX
ASUS GlideX is a cross-device, cross-platform screen-sharing, screen-control and operation solution for enhanced productivity across PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with one keyboard and mouse, easy file transfers, and using mobile cameras as PC webcams. It's compatible with Windows, macOS, Android, and iOS.
HWiNFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices, and it is regularly updated to include the latest technologies.
Asus DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.
AIDA64 Extreme
The ROG Strix X870E-E includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.
*Support available for ROG Ryujin II and later models.
Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
90MB1M90-M0EAY0
5 Items
Data sheet
- .
- 1 x Chassis Intrusion1 x CPU Over voltage jumper1 x Front Panel Audio1 x Start button1 x 10-1 pin Front Panel System1 x Thermal Sensor
- Wireless
- Wi-Fi 7 (Realtek RTL8922AE)2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 160MHz bandwidthBluetooth v5.4
- RAM Speeds
- Up to 8000+MT/s(OC)
- Accessories
- 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers4 x M.2 rubber1 x Quick start guide
- USB Ports Supported
- Rear:2 x USB4 (40Gbps) Type-C4 x USB 10Gbps (3 Type-A + 1 Type-C w/ up to 30W PD/PPS Fast-charge)6 x USB 5Gbps x Type-A2 x USB 2.0Front:1 x USB 20Gbps Type-C2 x USB 5Gbps4 x USB 2.0
- RAID
- Ryzen 9000 Series CPUs: RAID 0/1/5/10Ryzen 8000 Series CPUs: RAID 0/1Ryzen 7000 Series CPUs: RAID 0/1/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD X870E
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)ECC and Non-ECC, Un-buffered Memory*Supports AMD EXPOSupports DIMM Fit / DIMM Fit ProASUS Enhanced Memory Profile* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 5GB LAN
- Audio
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump5 x 4-pin Chassis Fan1 x 24-pin Main2 x 8-pin +12V CPU4 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 20Gbps Type-C1 x USB 5Gbps2 x USB 2.03 x Addressable RGB Gen2
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI2 x USB4 (40Gbps) support USB Type-C display outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- PCI/PCI Express
- Ryzen 9000 & 7000 CPUs:1 x PCIe 5.0 x16 (supports x16 mode)Ryzen 8000 CPUs:1 x PCIe 4.0 x16 (supports x8/x4 mode)AMD X870 Chipset:1 x PCIe 4.0 x16 (supports x4 mode)
- Wi-Fi
- Yes (Wi-Fi)
