Kingston ValueRAM 8GB, DDR5, 5600MHz, CL46, 1.1V, DIMM Memory
search
  • Kingston ValueRAM 8GB, DDR5, 5600MHz, CL46, 1.1V, DIMM Memory

Kingston ValueRAM 8GB, DDR5, 5600MHz, CL46, 1.1V, DIMM Memory

£36.66
VAT included
Stock status: Very low
Last 11 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



8GB 1Rx16 1G x 64-Bit PC5-5600 CL46 288-Pin DIMM

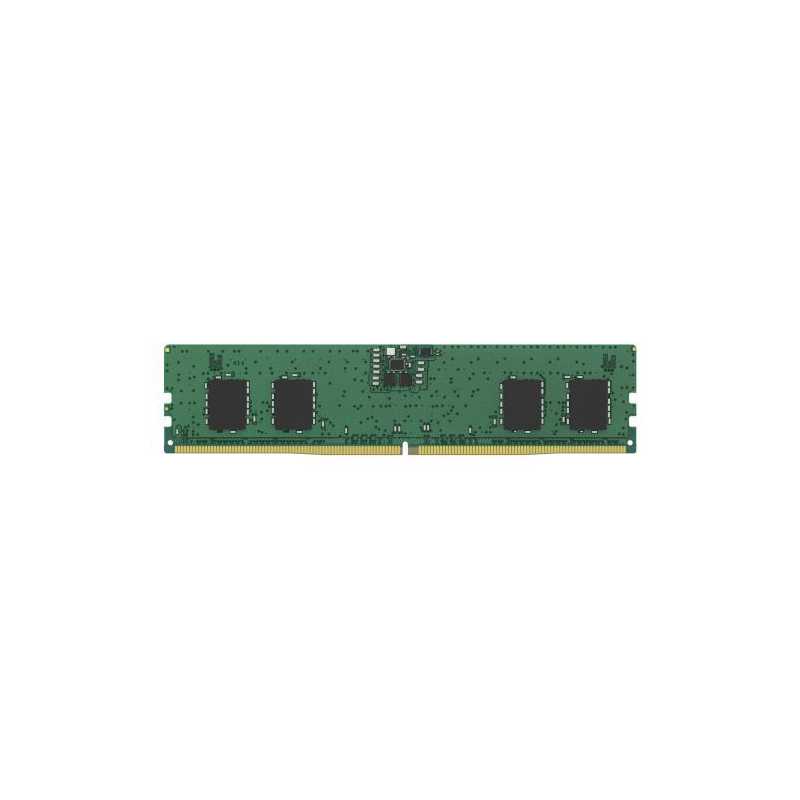

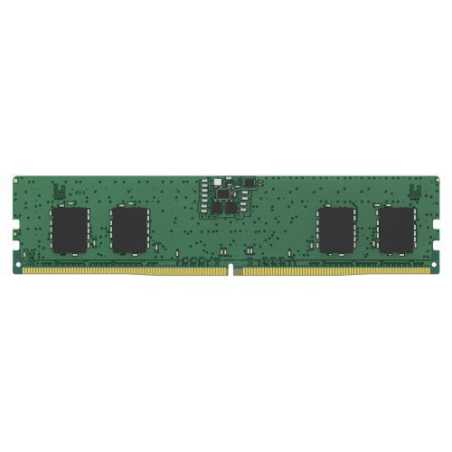

ValueRAM's KVR56U46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free



KINGSTON
KVR56U46BS6-8
11 Items

Data sheet

Warranty
Lifetime
DDR Type
DDR5
Package Type
Retail
Package Weight
0.0270 kg
Heatsink
No
Series
Kingston ValueRAM
Size
1 x 8GB
Speed
5600 MHz
Compliance
PC5-44800
Pins
288-pin
CAS Latency
CL46
Data Integrity Check
Non-ECC
Voltage
1.1V
Additional Information
See Overview
Timings
46-45-45
LED Lighting
-
Individual Module Size
8GB
Total Capacity
8GB Total
