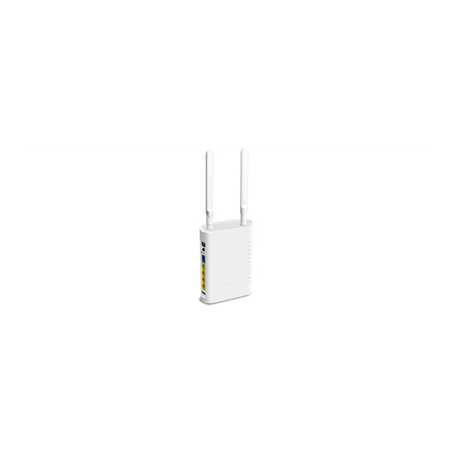

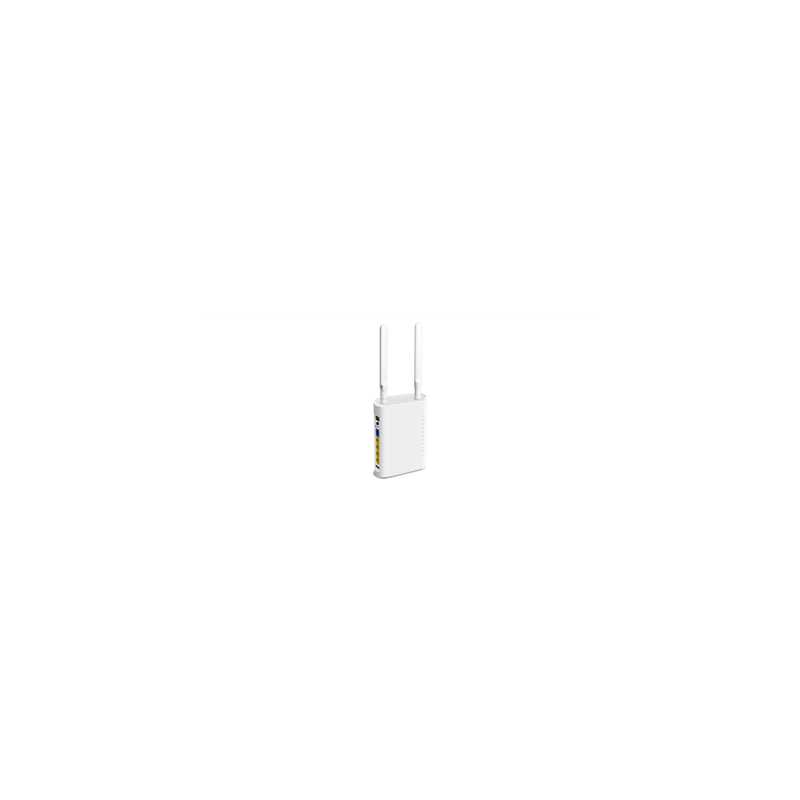

DrayTek VAP905-K VigorAP 905 WiFi 6 AX3000 Mesh Wireless Access Point

VigorAP 905 High Performance WiFi 6 Access Point
The VigorAP 905 is a high-performance WiFi 6 Mesh Wireless Access Point. It offers up to 3Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity. The additional Gigabit Ethernet ports can be used as a mini switch to connect computers or printers. The AP can be mounted on a wall or placed on a desk.

Key Features

Fastest Wi-Fi 6 Access Point
Experience lightning-fast speeds with the DrayTek WiFi 6 access point, which offers a combined speed of up to 3000Mbps. This device is perfect for businesses that require efficient networks for demanding application. Benefits: High-demand network capacity for efficient video conferencing, gaming, and large file transfers.

Strong WPA3 Connection Encryption
Robust wireless security with the latest WPA3-Personal or 802.1x Enterprise. Transition to the new standard with mixed WPA3/WPA2 support and different SSIDs can be set with varying security levels. Benefits: Protected private and secure Wi-Fi network.

Easy to Configure and Manage
Effortlessly manage up to 8 compatible mesh VigorAPs as well as 20 APs using the easy-to-use Wireless Virtual Controller module. Enjoy auto-provisioning and AP monitoring, readily available upon initial use.
Benefits: Convenience of Zero Touch Deployment.

Flexible 2.5 Gigabit Ethernet Uplink & 4 x GbE Connectivity
The VigorAP 905 can be linked with the network through its 2.5Gb Ethernet interface. Its additional Gigabit Ethernet interfaces can provide wired connectivity for laptops or printers. Benefits: Multiple and fast wired connectivity

High Density Performance
Easily accommodate high-density environments by linking up to 256 clients with our 802.11ax dual-band antennas and Wi-Fi 6 2x2 Multi-User MIMO technology. Benefits: Improved network efficiency in dense environments.

Wall/Desk Form Factor Design
Ideal wireless extender that offers functionality and versatile shape that complements both business and home interiors. The LED indicators can be scheduled or disabled to stop it lighting up a room. Benefits: Fast setup. Clean and aesthetically pleasing look once installed.

Key Specifications
Key Specification
Wi-Fi 6 Mesh Wireless Access Point
AX3000 – 11ax Dual Band Wireless
WPA3 Security – Stronger Security with WPA3 Personal & Enterprise
Power through DC Power Adapter (included)
Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*
2.5Gb Ethernet Uplink & Four Additional GbE interfaces
Centrally Managed or Standalone Operation
Root AP for AP Management

Technical Specification (UK Hardware Spec.)

Physical Interfaces/Controls
1 x 2.5 Gigabit Ethernet LAN Port (2.5G/1G/100M/10M), RJ45, Blue
4 x Gigabit Ethernet LAN Port (1G/100M/10M), RJ45, Yellow
1 x USB 2.0
WPS Button
Factory Reset Button (recessed)
Power Button
DC Power Socket

Wireless Performance
AX3000 Class Wireless Access Point
Max Concurrent Clients: 256
Max Wireless Networks (SSIDs): 16 total, 8 per band
5GHz: Up to 2400Mb/s PHY Rate with 2 Spatial Streams
2.4GHz: Up to 600Mb/s PHY Rate with 2 Spatial Streams

Wireless LAN Features
WiFi 6
Dual Band 802.11ax - 2.4 GHz & 5Ghz
Backwards compatible with 802.11ac, 802.11b, 802.11g, 802.11n
2.4GHz Channel Bandwidth: 20 / 40 MHz
5GHz Channel Bandwidth: 20 / 40 / 80 / 160 MHz
2.4GHz Channels: 1 to 13
5GHz Channels: Extended 5Ghz Band - Channels 36-48, 52-64, 100-140, 149-165
DFS/TPC Support for 5GHz channels 52 to 140
OFDMA – Higher Efficiency
BSS Colouring - Improves Interference Handling
TX Beamforming
1024-QAM
Multi-User MIMO

Wireless Antennas
2x External Dipole and 1 Internal PiFA 5G Antennas (5.7/4.3 dBi)
2x External Dipole 2.4G Antennas (1.8 dBi)

Wireless LAN Compatibility
2.4GHz Standards: IEEE 802.11ax / b / g / n, 2x2 MIMO, up to 1024-QAM
5GHz Standards: IEEE 802.11ax / ac Wave 2 / a / n, 2x2 MUMIMO, up to 1024-QAM

Security Features

Wireless Encryption
WPA2: Personal, Enterprise (802.1x)
WPA3: Personal, Enterprise, OWE
WPA/WEP for legacy applications
802.1x RADIUS Proxy (PEAP / EAP-TLS)
PMK Caching & Pre-authentication
Wireless Client Isolation
Hidden SSIDs (Selectable)
WPS - Wi-Fi Protected Setup
MAC Address Filtering (ACL) - Up to 128 entries
EAPOL Key Retry - Protect unpatched WLAN clients from KRACK

Access Point Modes
Access Point
Mesh Root*
Mesh Node*
Range Extender

Wireless Control Features
Wireless Client Status List in WUI
Up to eight distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
802.1q VLAN
Built-in DHCP Server & DHCP Relay

Wireless Performance Optimisation
Airtime Fairness
Band Steering
WMM (Wireless MultiMedia)
Fast Roaming 802.11r

Mesh Features*
Up to 8 APs per Mesh Group
Up to 3 Mesh Hops per chain with optional Wired Uplinks
Config Sync
Self-Healing
Can be configured & managed with the DrayTek Wireless App
Mesh syslog

Diagnostic Features
Dashboard: Traffic Graph
System Log
Traffic Graph
Wireless LAN Statistics
Interference Monitor - Built-in Site Surveyor

Management
Web Interface (HTTP/HTTPS)
DHCP Client
TR-069 Control (For VigorACS or another TR-069 platform)
CLI (Command Line Interface) – Telnet, SSH
Firmware upgrade by TR-069/HTTP
Central AP Management (from compatible DrayTek router/AP/controller)
Central AP Management – Manage up to 20 VigorAPs
SNMP v2, v2c, v3
Management VLAN
Configuration File Export (with password) & Import
Wireless Auto On/Off
Schedule: Wi-Fi Up/Down, Auto-Reboot, LED On/Off

Power Requirements
Maximum Power Consumption: 17 Watts
DC 12V via external 100-240v AC/DC PSU (supplied)

Environmental & Physical
Operating Temperature: 0 ° C to 40 ° C
Operating Humidity: 10% to 90% (non-condensing)
Physical Dimensions: 115mm (width) x 40mm (depth) x 158mm (height)
Weight: 330g (excluding accessories, PSU, cables)
Fitting: Free Standing / Wall Mountable

Pack Contents
VigorAP 905 wireless access point
Ethernet Cable
DC 12V PSU
Quick Start Guide

ROHS, UKCA & CE Compliant Warranty
Two (2) Years RTB
Software security updates
3 years after the EOL notification. Please note that this only applies to products sold in the UK
Optional VigorCare Enhanced Warranty Available
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
* - visit https://www.draytek.co.uk/information/our-technogy/mesh-wireless-compatibility-list for mesh compatibility details
