- New

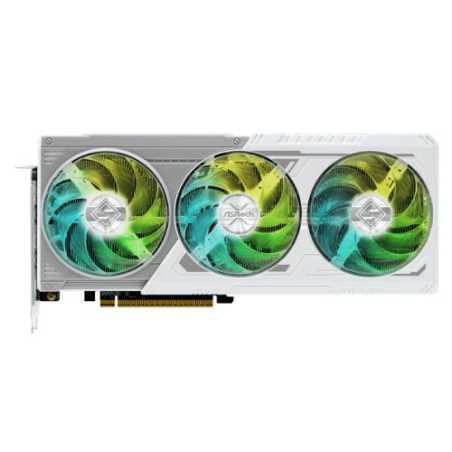

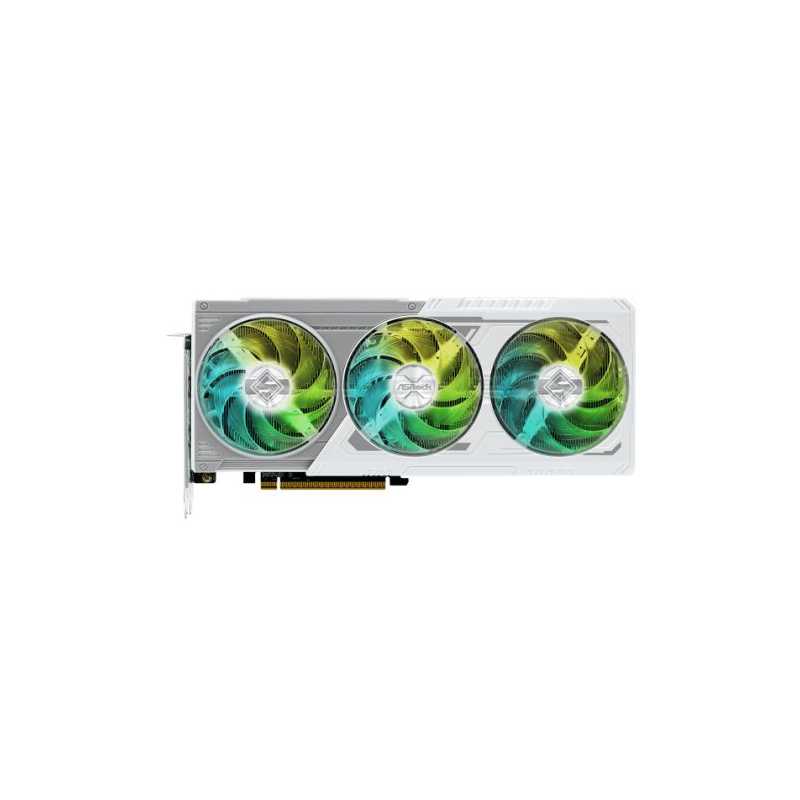

Asrock RX9060 XT Steel Legend 16GB OC, PCIe5, 16GB DDR6, HDMI, 2 DP, 3320MHz Clock, RGB Lighting, Overclocked, White
£400.46
VAT included
Delivered within 1-2 days.
AMD Radeon™ RX 9060 XT Steel Legend 16GB OC
- Boost Clock: Up to 3320 MHz / 20 Gbps
- Game Clock: 2780 MHz / 20 Gbps
- AMD Radeon™ RX 9060 XT GPU
- 16GB GDDR6 on 128-Bit Memory Bus
- AMD RDNA™ 4 Architecture
- 32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 5.0 Support
- 1 x 8-pin Power Connector
- 2 x DisplayPort™ 2.1a, 1 x HDMI™ 2.1b
- Polychrome SYNC
- Triple Fan Design
- Striped Ring Fan
- Stylish Metal Backplate
- Ultra-fit Heatpipe
- Air Deflecting Fin
- 0dB Silent Cooling
- Super Alloy Graphics Card
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.
LED Switch
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.
Stylish Metal Backplate
Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Striped Ring Fan
Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
Spin For Cooling, Stop For Silence.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Guide Airflow to Go Through Regularly & Quickly.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Consolidated to Maximize the Contact.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Maximize GPU Contact Area.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
Improve Heat Dissipation.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology1 and AMD HYPR-RX2 for ultra-smooth, ultra-responsive gameplay that makes every play count.
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 41 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX2. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology3, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Designed for Lightning-Fast Gaming, Powered by AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology1 and AMD HYPR-RX2 for ultra-smooth, ultra-responsive gameplay that makes every play count.
Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 41 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
Performance Made Easy
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX2. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.
Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology3, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
90-GA5JZZ-00UANF
24 Items
Data sheet
- Accessories
- 1 x Quick Installation Guide
- Warranty
- 2 Year Replacement Warranty
- Multi-GPU Support
- None
- Package Type
- Retail
- Additional Features
- See Overview
- Dimensions
- 298 x 131 x 51 mm
- Resolution
- Digital Max Resolution 7680 x 4320
- Software
- AMD Software: Adrenalin Edition
- Interface
- PCI Express 5.0
- Chipset Manufacturer
- AMD
- Graphics Chipset
- AMD RX 9060 XT
- Memory Size
- 16GB
- Memory Type
- DDR6
- Memory Interface
- 128-bit
- Core Clock
- Boost Clock: Up to 3320 MHzGame Clock: 2780 MHz
- CUDA Cores / Stream Processors
- 2048 Stream Processors
- Outputs
- 1 x HDMI 2.1b2 x DisplayPort 2.1a
- HDCP Support
- Yes
- Cooling
- Triple Fan DesignStriped Ring FansAir Deflecting Fins0dB TechUltra-fit HeatpipesNickel-plated Copper BaseHigh-density Metal Welding
- PSU Requirements
- 550W or greater recommended
- Slot Size
- 2.55 Slot
- Connectors Required
- 1 x 8-pin
- Memory Clock
- 20 Gbps
- Max Display Support
- 3
- DisplayPort
- Yes (DisplayPort)
- HDMI
- Yes (HDMI)
- Lighting Effects
- Yes
- White
- Yes (White)
