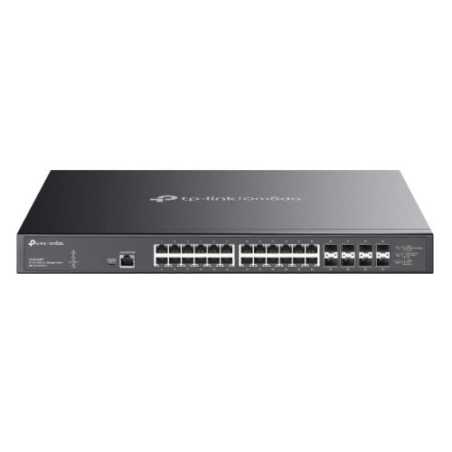

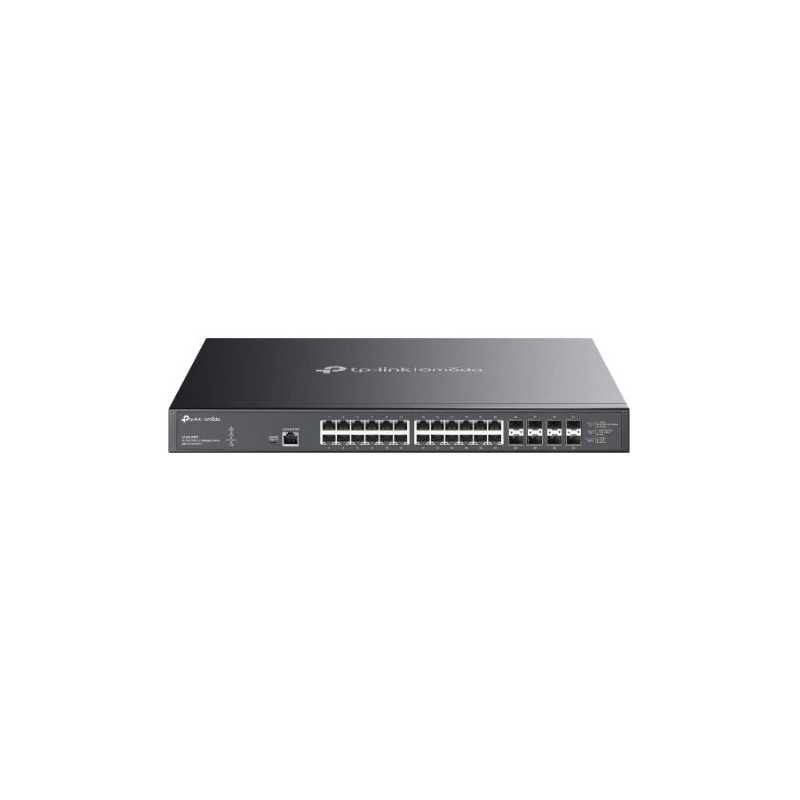

TP-LINK (SX3832MPP) Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++, 8x 1/10 Gbps SFP+ Slots, Rackmountable
£1,638.58
VAT included
Delivered within 1-2 days.
Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
- 24x 1/2.5/5/10 Gbps RJ45 PoE++ ports
- 8x 1/10 Gbps SFP+ slots****
- 770 W total PoE budget*, up to 90 W PoE out per port**
- Centralized cloud management via the web or the Omada app***
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Software Defined Networking (SDN) with Cloud Access
Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and a highly scalable network controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, and offices.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors. The maximum power output of every single PoE++ port is 90 W.
**SX3832MPP is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.
***These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials)
****No more than 2× 10G RJ45 SFP+ modules (SM5310-T) are supported. It is recommended to have one column interval between every two 10G RJ45 SFP+ modules.
SX3832MPP
2 Items
Data sheet
- .
- L2 Multicast:Supports 4,000 (IPv4, IPv6) IGMP groupsIGMP SnoopingIGMP AuthenticationMulticast VLAN Registration (MVR)MLD SnoopingMulticast Filtering: 256 profiles and 16 entries per profile
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Dimensions
- (WxDxH) 440 x 330 x 44 mm
- Power Supply
- 100-240 V AC~50/60 HzMax Power Consumption:1,010.2 W (110V/60Hz with 770 W PD connected)953.7 W (220V/50Hz with 770 W PD connected)
- Interface(s)
- 24 x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports8 x 1/10G SFP+ Slots‡1 x RJ45 Console Port1 x USB Type C Console Port
- Package Contents
- SX3832MPP SwitchPower CordConsole CableQuick Installation GuideRackmount KitRubber Feet
- Rackmountable
- Yes
- Number of Ports
- 32
- PoE Ports (RJ45)
- Standard: 802.3bt/at/af compliantPoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port**Power Budget: 770 W**PoE budget calculations are based on laboratory testing**SX3832MPP is incompatible with Passive PoE and other non-standard PoE devices
- Switching Capacity
- 640 Gbps
- Environment
- Operating Temperature: -5–45°CStorage Temperature: -40–70°C (-40–158°F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Quality of Service
- 8 priority queues802.1p CoS/DSCP priorityQueue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRRBandwidth Control: Port/Flow-based Rating LimitingSmoother PerformanceAction for Flows: QoS remark (802.1P Remark, DSCP Remark)
- Mac Address Table
- 32 K
- Packet Forwarding Rate
- 240 Mpps
- Jumbo Frame
- 9 KB
- VLAN
- VLAN Group: Max 4K VLAN Groups802.1q Tagged VLANMAC VLAN: 256 EntriesProtocol VLAN: Protocol Template 16, Protocol VLAN 12Private VLANGVRPVLAN VPN: VLAN Mapping, VLAN ReplaceVoice VLAN
- POE
- Yes
- Managed
- Yes
- Max RJ45 Transfer Rate
- 10 Gbps
- Max SFP Transfer Rate
- 10G SFP
