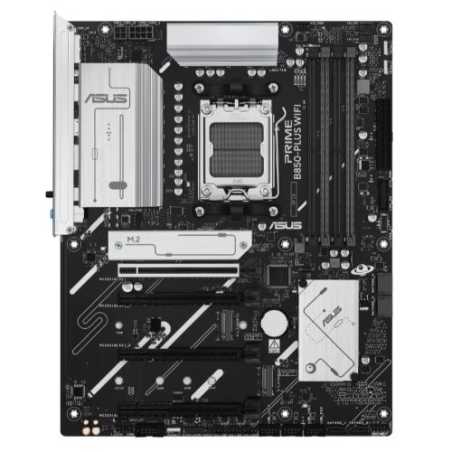

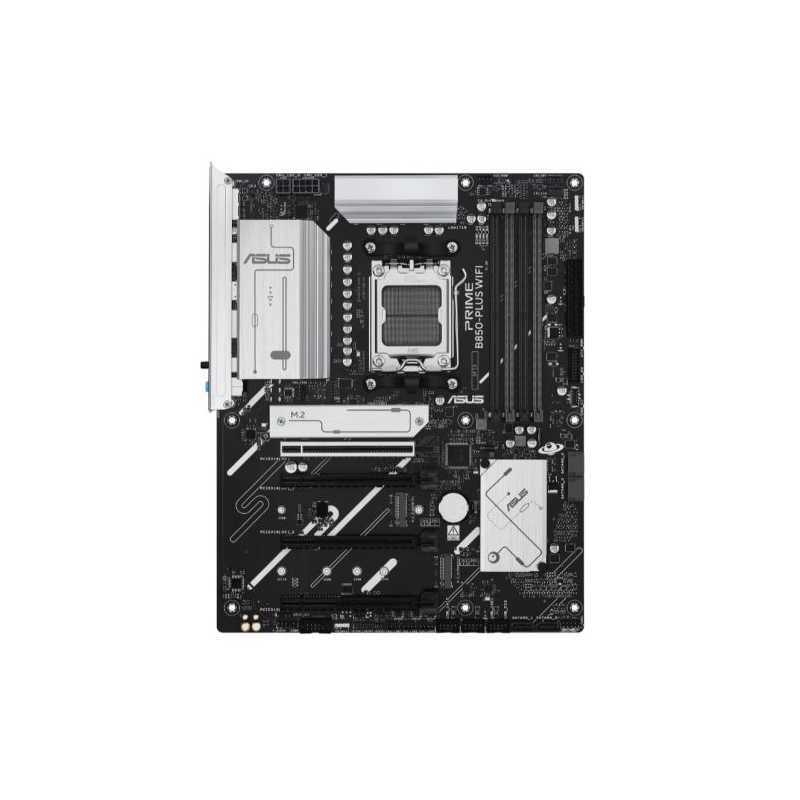

Asus PRIME B850-PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 3x M.2
search
  • Asus PRIME B850-PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 3x M.2

Asus PRIME B850-PLUS WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 3x M.2

£189.06
VAT included
Stock status: Very low
Last 13 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors

The PRIME B850-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.


  • AMD B850 ATX motherboard
  • DDR5, PCIe 5.0 Ready
  • Three M.2 slots
  • Wi-Fi 6E
  • Realtek 2.5Gb Ethernet
  • DisplayPort
  • HDMI
  • Rear USB 10Gbps Type-A & Type-C support
  • BIOS FlashBack
  • Aura Sync







AI Solutions
  • AI Advisor - ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.






Performance
  • Robust power design - PRIME B850-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
  • Six-layer PCB design - The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
  • Power Saving - The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
  • Digi+ VRM control - The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.






Enhanced Memory & Storage Performance
  • Enhanced DDR5 Performance - Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B850-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits. For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance. For those looking to surpass stock DDR5 speeds, the PRIME B850-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.
  • Three M.2 slots (up to 128 Gbps) - PRIME B850-PLUS WIFI offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, and two that support PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.






Cooler by design

The PRIME B850-PLUS WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.
  • ASUS Fan Xpert 2+ - ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.






Empowering connections

This motherboard offers a versatile range of connectivity, including support for WiFi 6E, PCIe 5.0 slot and an arsenal of USB ports which includes Type-C® connections.
  • WiFi 6E - Built-in WiFi 6E5 technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.
  • Realtek 2.5 Gb Ethernet - Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
  • USB 10Gbps Type-C® - A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® connector with ultrafast USB 10Gbps for transmission speeds of up to 10Gbps






Personalization

The PRIME B850-PLUS WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.
  • UEFI BIOS - The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
  • ASUS GlideX - Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.
  • ASUS DriverHub - Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
  • Armoury Crate - Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
  • Aura Sync - Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.
  • Addressable Gen2 RGB headers - Three addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.







DIY friendly

The PRIME B850-PLUS WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.
  • Q-Antenna - With Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.
  • Q-LED Core - The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.
  • Pre-mounted I/O shield - Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
  • BIOS FlashBack™ - BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.
  • SafeSlot - PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.






Build for the most advanced pc for gaming and creating

When only the fastest will do, ASUS motherboards deliver. With faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.




ASUS
90MB1L80-M0EAY0
13 Items

Data sheet

.
3 x Addressable RGB Gen21 x Clear CMOS1 x Chassis Intrusion1 x COM Port1 x Front Panel Audio1 x S/PDIF Out1 x SPI TPM (14-1 pin)1 x 10-1 pin System Panel1 x Thunderbolt (USB4)
Wireless
Wi-Fi 6E2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency bandBluetooth v5.3
RAM Speeds
Up to 8000+MT/s (OC)
Accessories
2 x SATA 6Gb/s cables1 x ASUS WiFi Q-Antenna1 x M.2 rubber packages3 x Screw packages for M.2 SSD1 x Quick start guide
USB Ports Supported
Rear:4 x USB 10Gbps (3 Type-A, 1 x Type-C)2 x USB 5Gbps Type-A2 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps6 x USB 2.0
Storage
4 x SATA III3 x M.2Ryzen 9000 & 7000 Series CPUs:M.2_1 (2280) - PCIe 5.0 x4M.2_2 (2280) - PCIe 4.0 x4Ryzen 8000 Series CPUs:M.2_1 (2280) - PCIe 4.0 x4M.2_2 (2280) - PCIe 4.0 x4/x2AMD B850 Chipset:M.2_3 (2242/2260/2280/22110) - PCIe 4.0 x2
RAID
Ryzen 9000 Series Processors: RAID 0/1/5/10Ryzen 8000 Series Processors: RAID 0/1Ryzen 7000 Series Processors: RAID 0/1/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
AMD AM5
Chipset
AMD B850
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)ECC and Non-ECC Un-buffered DIMM*Supports AMD EXPOASUS AEMP*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
RAM Slots
4 x DIMM
Maximum Memory
256GB
LAN
2.5GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
4 x USB 10Gbps (3 Type-A, 1 x Type-C)2 x USB 5Gbps Type-A2 x USB 2.01 x DisplayPort1 x HDMI1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet3 x Audio jacks1 x BIOS FlashBack button
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V CPU1 x 4-pin +12V CPU3 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 5Gbps Type-C1 x USB 5Gbps3 x USB 2.0
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
PCI/PCI Express
Ryzen 9000 & 7000 Series CPUs:1 x PCIe 5.0 x16 (supports x16 mode) Ryzen 8000 Series CPUs:1 x PCIe 4.0 x16 (supports x8/x4 mode)AMD B850 Chipset:1 x PCIe 4.0 x16 (support x4 mode)2 x PCIe 3.0 x16 (support x1 mode)
Wi-Fi
Yes (Wi-Fi)
