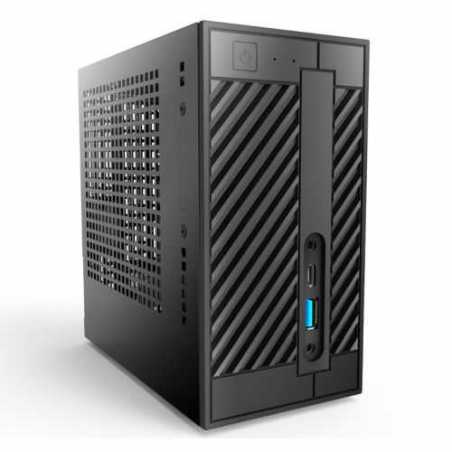

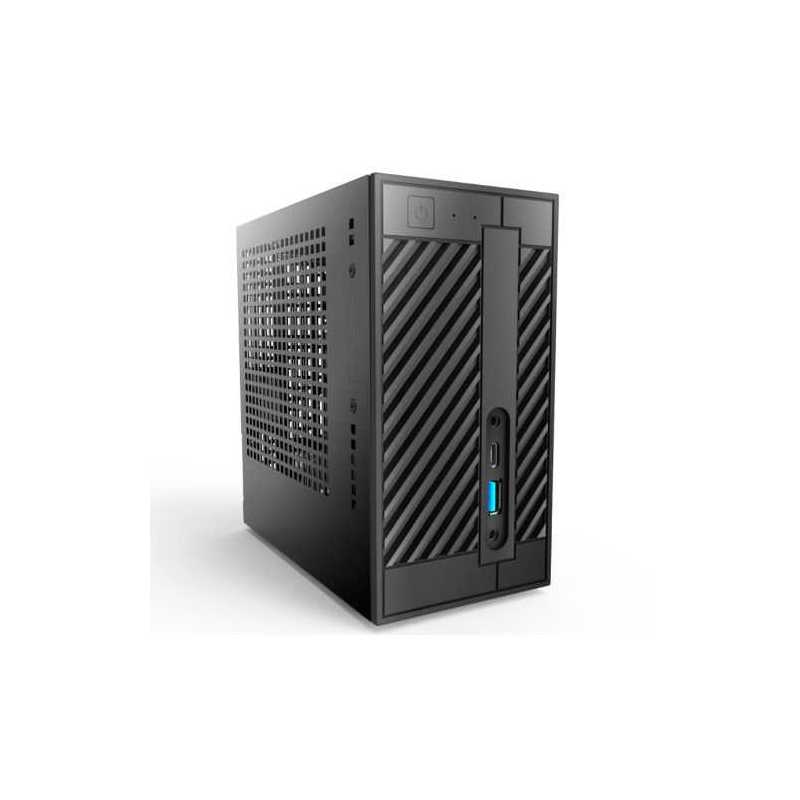

Asrock DeskMini 310 Barebone PC, Mini STX, 1151 (H310), DDR4 SO-DIMM, SATA, M.2, VGA, HDMI, DP - No CPU, RAM, HDD or O/S
Tax includedDelivered within 1-2 days
- Supports Intel® 8th Core™ / Pentium® / Celeron® LGA1151 processors
- Dual DDR4 SO-DIMMs, up to 32GB
- Triple Video outputs: DisplayPort, HDMI & D-Sub
- 1 x Ultra M.2 PCIe Gen3 x4 Slot
- 2 x 2.5" HDD/SSD Tray
- 1 x M.2 (2230) Wi-Fi Slot
- USB 3.1 Gen1 Type-C port
- Micro SD Card Reader
Smaller Size, Better Performance
Brand New DeskMini 310 supports Intel® 8th Gen Processors. Offering up to 72.6% CPU performance compare to previous generation.
The Small Big
DeskMini 310 features with under 2 liter size with desktop performance, offering big space to you.
DeskMini 310 is the one of the most power-efficient in the PC market. It offers an idle power reduction of 33%!
DeskMini supports dual 7 & 9.5 mm height HDD room.
There are two SATA3 headers on the opposite side of the motherboard, which supports 2 x 2.5” HDDs/SSDs.
Multi Display Outputs
This motherboard supports all three kinds of graphics D-Sub, HDMI and DisplayPort.
*Supports up to 2 displays simultaneously
A Type-C USB 3.1 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
Ultra M.2 + SATA 6Gb
H310M-STX motherboard features with PCIe Gen3 x4 M.2 SSD which is directly powered by the CPU, thus boasting 7% better performance. And it supports SATA 6Gb signal as well.
M.2 for PCIe & CNVi Wi-Fi module
H310M-STX adopts with M.2 2230 slot for Wireless + Bluetooth module.
In addition supporting latest CNVi - the integrated wireless IP portion of Intel® processors.
*Currently only support with 8th Gen Intel® Core™ processors system, CNVi module is not included.
Micro SD Card Reader
H310M-STX implement Micro SD Card Reader offering extra storage buffer or Linux based OS drive.
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
COM Port Header
DeskMini 310 supports COM port header that can be used for serial communications with various hardware components.
- Chassis: Asrock DeskMini Micro STX
- Tower / Small Form Factor: Small Form Factor
- Processor: None
- Chipset: Intel H310
Supports Intel 8th Gen CPUs (Socket 1151)
Max. TDP 65W
- Graphics: Supports Intel UHD Graphics
- #Hide#Processor: None
- Memory: None
- Memory Details: 2 x SO-DIMM Slots
Supports DDR4 2133 - 2666MHz
- Hard Drive: None
- Optical Drive: None
- Supported Drives: 2 x 2.5"""" SATA III (7mm & 9.5mm)
1 x Ultra M.2 (2280) SSD Slot (PCIe/SATA)
1 x M.2 (E key/2230) Slot for WiFi + BT Module
- Operating System: No O/S
- Front I/O: 1 x USB 3.1 Gen1 Type-C
1 x USB 3.1 Gen1 Type-A
1 x Head Phone with MIC Jack
1 x MIC-In
- Back I/O: 1 x HDMI
1 x DP
1 x VGA
1 x USB 2.0 Type-A
1 x USB 3.1 Gen1 Type-A
- LAN: GB LAN
- Wireless: M.2 Wi-Fi Kit available separately (see related products)
- Expansion: 2 x USB 2.0 Headers
1 x Front Panel Header
2 x 4-Pin fan connectors
1 x DC-In Jack (Supports 19V Power Adapters)
1 x Internal Speaker Header (4-Pin)
1 x Chassis Intrusion Header (2-Pin)
- Keyboard and Mouse: No
- Dimensions: 155 x 155 x 80 mm
- Additional Features: See Overview
- Package Weight: 1.8600 kg
- Package Type: Retail
- Warranty: 2 Years
