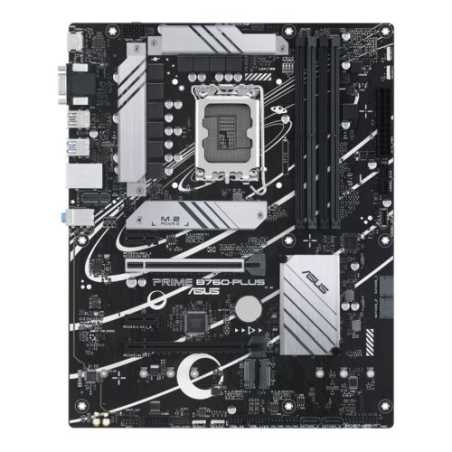

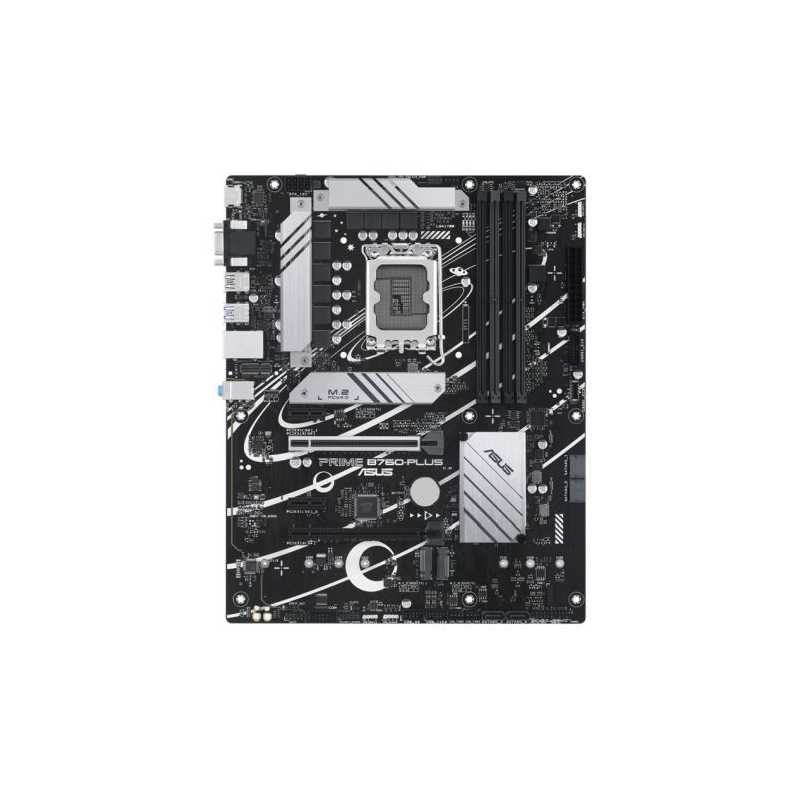

Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2
search
  • Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

£153.21
VAT included
Stock status: Very low
Last 15 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



ASUS Prime B760-PLUS, an Intel® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Aura Sync

  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware






                                             ** Click here for full product details **
ASUS
90MB1EF0-M1EAY0
15 Items

Data sheet

.
1 x Clear CMOS1 x COM Port1 x Front Panel Audio1 x S/PDIF Out1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel1 x Thunderbolt (USB4)
Wireless
-
RAM Speeds
Up to 7200+(OC)
Accessories
2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 Rubber Package2 x Screw packages for M.2 SSD1 x User guide
USB Ports Supported
Rear:1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen1 Type-A2 x USB 2.0 Front:1 x USB 3.2 Gen1 Type-C2 x USB 3.2 Gen14 x USB 2.0
Storage
4 x SATA III1 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x2
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel B760
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)Non-ECC, Un-buffered MemorySupports Intel Extreme Memory Profile (XMP)OptiMem II
RAM Slots
4 x DIMM
Maximum Memory
192GB
LAN
2.5GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen1 Type-A2 x USB 2.0 1 x DisplayPort1 x VGA1 x HDMI1 x Vertical M.2 (Key E)1 x Realtek 2.5Gb Ethernet3 x Audio jacks
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V3 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C1 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen21 x Aura RGB
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x VGA1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
PCI/PCI Express
1 x PCIe 5.0 x161 x PCIe 4.0 x16 (supports x4 mode)2 x PCIe 3.0 x1

Specific References

EAN13
4711387102985
