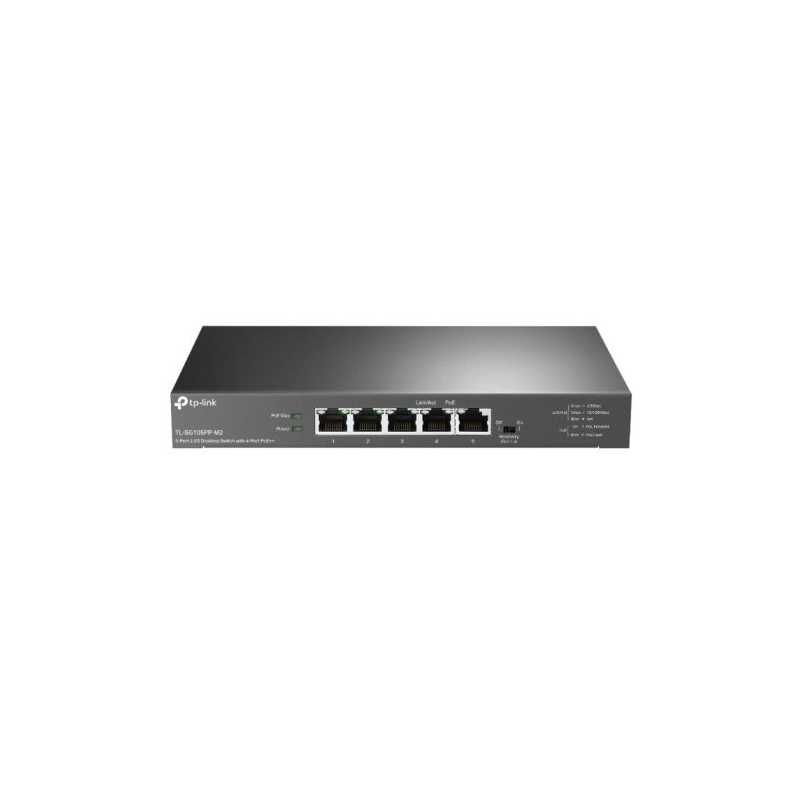

TP-LINK (TL-SG105PP-M2) 5-Port 2.5G Desktop Switch with 4-Port PoE++
search
  • TP-LINK (TL-SG105PP-M2) 5-Port 2.5G Desktop Switch with 4-Port PoE++

TP-LINK (TL-SG105PP-M2) 5-Port 2.5G Desktop Switch with 4-Port PoE++

£148.96
VAT included
Stock status: Very low
Last item
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%




5-Port 2.5G Desktop Switch with 4-Port PoE++

  • 5x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
  • With four PoE++ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt type3 compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 60 W for each PoE++ port
  • Supports PoE Power up to 123 W for all PoE ports
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play, no configuration and installation required
TL-SG105PP-M2
1 Item

Data sheet

Warranty
Limited Lifetime
Package Type
Retail
Dimensions
(WxDxH) 209 x 126 x 26 mm
Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
Interface(s)
5 x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 portsAUTO NegotiationAUTO MDI/MDIX
Package Contents
TL-SG105PP-M2Power AdapterInstallation GuideRubber Feet
Rackmountable
No
Number of Ports
5
PoE Ports (RJ45)
Standard: 802.3 af/at/bt type3 compliantPoE++ Ports: Ports 1–4Power Supply: 123 W
Switching Capacity
25 Gbps
Environment
Operating Temperature: 0–40°C (32–104°F)Storage Temperature: -40–70°C (-40–158°F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
Advanced Functions
Compatible w/ IEEE 802.3af/at/bt type3 Compliant PDsMac Address Auto-Learning And Auto-AgingIEEE 802.3x Flow Control802.1p/DSCP QoSIGMP SnoopingPoE Auto Recovery (Ports 1-4)
Transfer Method
Store-And-Forward
Mac Address Table
4K
Packet Forwarding Rate
18.6 Mpps
POE
Yes
Managed
No
Max RJ45 Transfer Rate
2.5 Gbps

Specific References

EAN13
4895252501148
