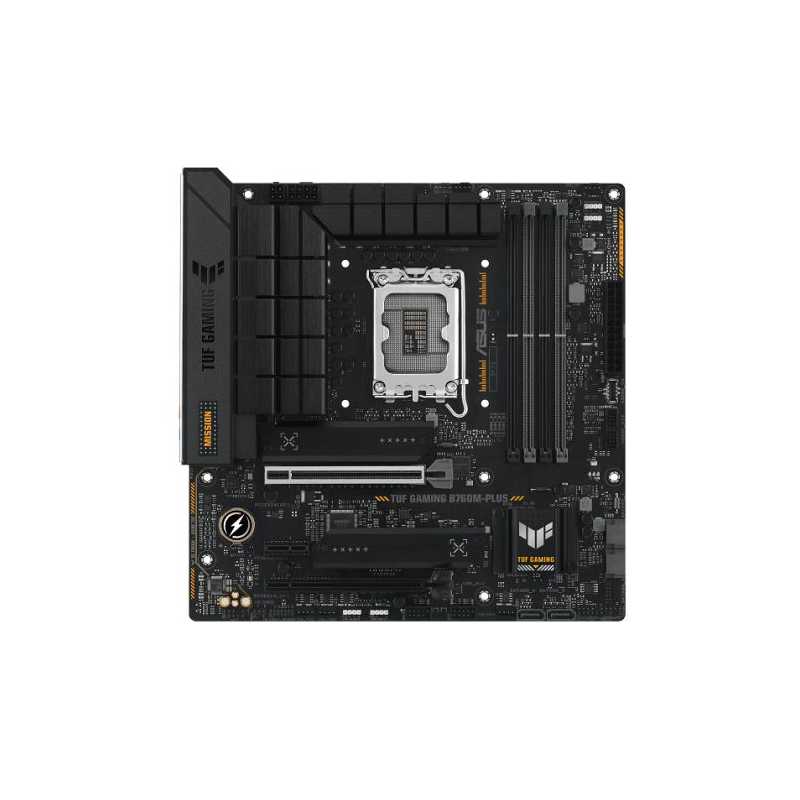

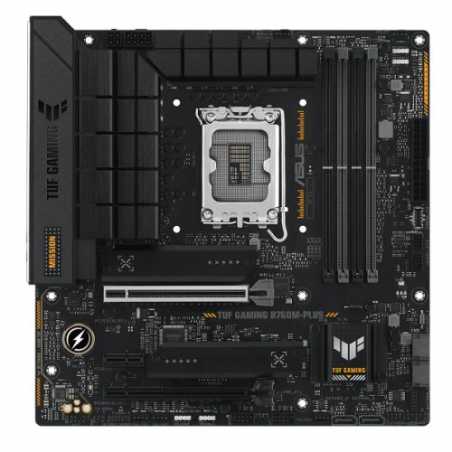

Asus TUF GAMING B760M-PLUS, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 2x M.2
£170.26
VAT included
TUF GAMING B760M-PLUS takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability.
Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
- Power stages - 12+1 DrMOS power stages with enlarged VRM heatsinks
- PCIe - PCIe® 5.0 for graphics cards
- Memory module support - DDR5 memory module support
- Connectivity - USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header
- Ethernet - 2.5 Gb Ethernet
- Two-Way AI Noise Cancelation
Intelligent Control
The TUF GAMING B760M motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS is the perfect foundation for your next Intel battle rig.
Easy PC DIY
The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.
Immersive Gaming
TUF GAMING B760M motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
** Click here for full product details **
90MB1ES0-M1EAY0
Data sheet
- .
- 3 x Addressable Gen21 x AURA RGB1 x Clear CMOS1 x Front Panel Audio 1 x 20-3 pin System Panel1 x Thunderbolt (USB4)
- Wireless
- -
- RAM Speeds
- Up to 7200+(OC)
- Accessories
- 2 x SATA 6Gb/s cables 1 x M.2 Rubber Package1 x Screw package for M.2 SSD1 x TUF Gaming sticker1 x TUF Certification card1 x User guide
- USB Ports Supported
- Rear:1 x USB 3.2 Gen2x2 USB Type-C2 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1 Type-A2 x USB 2.0Front:1 x USB 3.2 Gen2 USB Type-C2 x USB 3.2 Gen14 x USB 2.0
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x4
- RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel B760
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 192GB
- LAN
- 2.5GB LAN
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1 Type-A2 x USB 2.01 x DisplayPort1 x HDMI1 x Realtek 2.5Gb Ethernet5 x Audio jacks 1 x Optical S/PDIF out
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V1 x 4-pin +12V2 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 3.2 Gen2 Type-C 1 x USB 3.2 Gen12 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.6000 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x16 (supports x4 mode)1 x PCIe 4.0 x1
