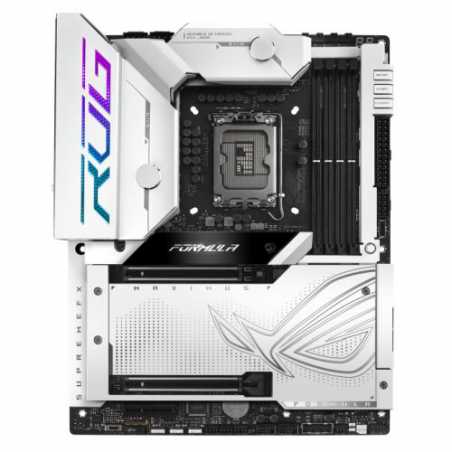

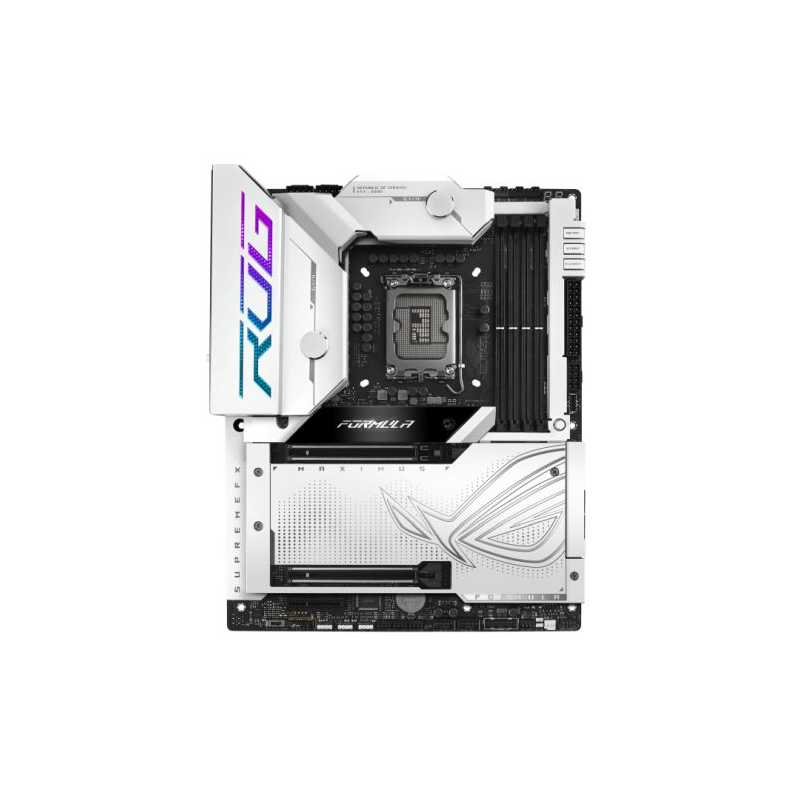

Asus ROG MAXIMUS Z790 FORMULA, Intel Z790, 1700, ATX, 4 DDR5, HDMI, Thunderbolt 4, Wi-Fi 7, 5G LAN, PCIe5, RGB, OLED Panel, 5x M
£734.85
VAT included
Delivered within 1-2 days.
The ROG Maximus Z790 Formula is the ultimate motherboard to feature our head-turning Moonlight White aesthetic.
Beneath this bold expression lies a powerhouse arsenal of features, including the exclusive HybridChill VRM cooling system ready to elevate 14th-gen Intel® processors, advanced DDR5 settings, a multitude of PCIe 5.0 slots for both graphics cards and storage, blistering Intel® Wi-Fi 7 networking and a full slate of customizable ARGB lightning to make your premium build truly stand out from the crowd.
- DDR5 - Max. 192GB, DIMM Flex, AEMP II
- WiFi 7
- HybridChill
- 2" LiveDash OLED Panel - System info & customisable graphics
- AI Overclocking - Effortless performance boost
- AI Cooling II - One-click fan tuning
- 20+1+2 Power Stages - Teamed Power Solution
- DIY-Friendly Design
- Thunderbolt™ 4
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
HybridChill
The ASUS HybridChill water block leverages a fusion of passive and liquid cooling to achieve highly efficient VRM operation. Its copper water channels resist corrosion and offer excellent heat dissipation, while its threaded fittings use the G1/4” industry standard to ensure compatibility with a wide variety of custom cooling setups.
WiFi 7
Next-gen WiFi 7* chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds**. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.
5GB Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Realtek 5 Gbps Ethernet.
AI Cooling II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
Two-Way AI Noise Cancelation
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.
AI Networking
GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.
LiveDash OLED
The ROG Maximus Z790 Formula includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, fan speeds or water-cooling information. You can also personalize the default OLED GIF with a preferred image or animation.
- Hardware monitor
- Formula exclusive
- BIOS update
- Customization content
90MB1FS0-M0EAY0
5 Items
Data sheet
- .
- 1 x ROG VIP card1 x M.2 rubber package3 x M.2 backplate rubber packages1 x USB drive with utilities and drivers 1 x Quick start guide
- Wireless
- Intel Wi-Fi 72x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency bandSupport Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.Bluetooth v5.4
- RAM Speeds
- Up to 8000+(OC)
- Accessories
- 1 x ARGB RGB extension cable2 x ROG weave SATA 6G cables2 x SATA 6Gb/s cables 1 x DDR5 fan holder1 x Thermal pad for M.21 x ASUS WiFi Q-Antenna1 x Q-connector3 x M.2 backplate Q-Latch packages1 x ROG key chain1 x ROG stickers
- USB Ports Supported
- Rear:2 x Thunderbolt 4 (USB Type-C)6 x USB 10Gbps (5 Type-A, 1 Type-C)4 x USB 5Gbps (Type-A)Front:1 x USB 20Gbps (Type-C with up to 60W PD/QC4+)4 x USB 5Gbps4 x USB 2.0
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2280) - PCIe 4.0 x41 x M.2 (2280) - PCIe 4.0 x4
- RAID
- Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel Z790
- DDR Type
- DDR5
- RAM Technology
- DDR5, Dual ChannelSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 192GB
- LAN
- 5GB LAN
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Back Panel I/O Ports
- 2 x Thunderbolt 4 USB Type-C6 x USB 10Gbps (5 Type-A, 1 Type-C)4 x USB 5Gbps (Type-A)1 x HDMI1 x Wi-Fi module1 x Realtek 5Gb Ethernet5 x Gold-plated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button 1 x Clear CMOS button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan1 x W_PUMP+1 x 2-pin Water In1 x 2-pin Water Out1 x 3-pin Water Flow1 x 24-pin main2 x 8-pin +12V1 x 8-pin PCIe5 x M.2 slots (Key M)
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI2 x Intel Thunderbolt 4 (USB Type-C) support DisplayPort and Thunderbolt video outputs
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- RGB Lighting
- Out of the box RGB lighting
- PCI/PCI Express
- 2 x PCIe 5.0 x16 (x16 or x8/x8 modes)1 x PCIe 4.0 x4
- Wi-Fi
- Yes (Wi-Fi)
