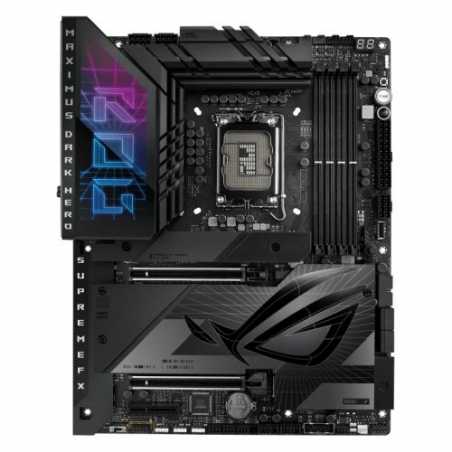

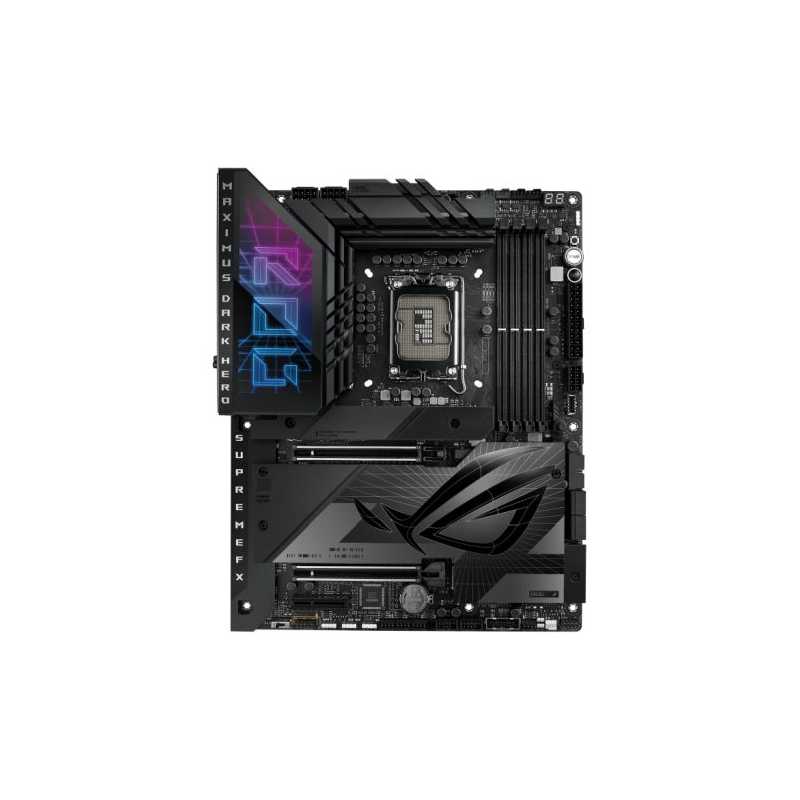

Asus ROG MAXIMUS Z790 DARK HERO, Intel Z790, 1700, ATX, 4 DDR5, HDMI, Thunderbolt 4, Wi-Fi 7, 2.5G LAN, PCIe5, Polymo Lighting,
search
  • Asus ROG MAXIMUS Z790 DARK HERO, Intel Z790, 1700, ATX, 4 DDR5, HDMI, Thunderbolt 4, Wi-Fi 7, 2.5G LAN, PCIe5, Polymo Lighting,

Asus ROG MAXIMUS Z790 DARK HERO, Intel Z790, 1700, ATX, 4 DDR5, HDMI, Thunderbolt 4, Wi-Fi 7, 2.5G LAN, PCIe5, Polymo Lighting,

£679.36
VAT included
Stock status: Very low
Last 7 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



The ROG Maximus Z790 Dark Hero boasts robust cooling, WiFi 7 and ample PCIe 5.0 slot for unmatched performance, and it offers full compatibility with 14th Gen Intel® Core™ processors.


Meanwhile, its stealthy design is accentuated by new Polymo lighting, which illuminates the I/O shroud with a microstructural array of dual-layer RGB and adds a personalized touch of style to your gaming setup.


  • PCIe 5.0 - x1 onboard M.2 slot, and x2 PCIe 5.0 x16 slots
  • DDR5 - Max. 192GB, DIMM Flex, AEMP II
  • WiFi 7
  • AI Overclocking - Effortless performance boost
  • AI Cooling II - One-click fan tuning
  • 20+1+2 Power Stages - Teamed Power Solution
  • DIY-Friendly Design
  • Polymo Lighting
  • Thunderbolt™ 4






AI Overclocking

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.





WiFi 7

Next-gen WiFi 7 chipset introduces all-new ultrawide 320 MHz channel bandwidth in the 6 GHz band and 4096 QAM, delivering up to 2.4X ultra-fast WiFi speeds. The revolutionary Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming, and industrial IoT.





2.5GB Ethernet

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.





AI Cooling II

Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.





AI Networking

GameFirst is now integrated into Armoury Crate for an even better user experience. GameFirst optimizes networking performance by allocating bandwidth in real time, based on intelligent algorithms designed for various application customizable usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for NVIDIA® GeForce NOW to ensure the lowest latency possible during intense game streaming cloud gaming sessions. To provide a better user’s experience, GameFirst is now integrated into Armoury Crate.





Grow your Gaming World with Aura Sync

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.




ASUS
90MB1F90-M0EAY0
7 Items

Data sheet

.
1 x M.2 rubber package1 x ROG VIP card1 x USB drive with utilities and drivers 1 x Quick start guide
Wireless
Intel Wi-Fi 72x2 Wi-Fi 7 (802.11be)*Supports 2.4/5/6GHz frequency bandSupport Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.Bluetooth v5.4
RAM Speeds
Up to 8000+(OC)
Accessories
1 x ARGB RGB extension cable4 x SATA 6Gb/s cables 1 x Thermal pad for M.21 x DDR5 fan holder1 x ASUS WiFi Q-Antenna3 x M.2 backplate Q-Latch packages3 x M.2 backplate Rubber Packages1 x Q-connector1 x ROG stickers1 x ROG key chain
USB Ports Supported
Rear:2 x Thunderbolt 4 (USB Type-C)6 x USB 10Gbps (5 Type-A, 1 Type-C)4 x USB 5Gbps (Type-A)Front:1 x USB 20Gbps (Type-C with up to 60W PD/QC4+)4 x USB 5Gbps4 x USB 2.0
Storage
4 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2280) - PCIe 4.0 x41 x M.2 (2280) - PCIe 4.0 x4
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1700
Chipset
Intel Z790
DDR Type
DDR5
RAM Technology
DDR5, Dual ChannelSupports Intel Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile II (AEMP II)Supports DIMM Flex
RAM Slots
4 x DIMM
Maximum Memory
192GB
LAN
2.5GB LAN
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Back Panel I/O Ports
2 x Thunderbolt 4 USB Type-C6 x USB 10Gbps (5 Type-A, 1 Type-C)4 x USB 5Gbps (Type-A)1 x HDMITM1 x Wi-Fi Module1 x Intel 2.5Gb Ethernet5 x Gold-plated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button 1 x Clear CMOS button
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump4 x 4-pin Chassis Fan1 x W_PUMP+1 x 2-pin Water In1 x 2-pin Water Out1 x 3-pin Water Flow1 x 24-pin main2 x 8-pin +12V1 x 8-pin PCIe5 x M.2 (Key M)
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
4.2000 kg
Graphics Ports
1 x HDMI2 x Intel Thunderbolt 4 (USB Type-C) support DisplayPort and Thunderbolt video outputs
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
2 x PCIe 5.0 x16 (x16 or x8/x8 modes)1 x PCIe 4.0 x4
Wi-Fi
Yes (Wi-Fi)

Specific References

EAN13
4711387339121
