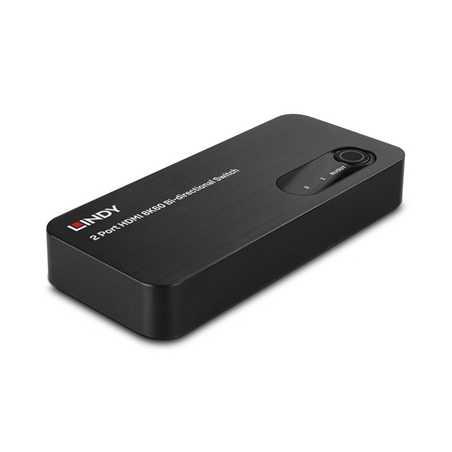

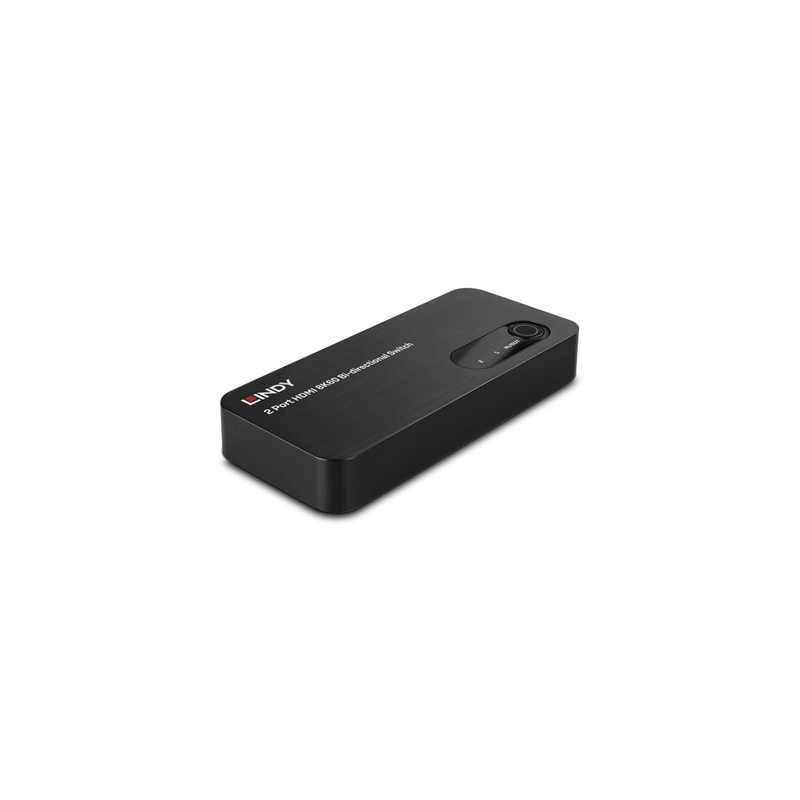

LINDY 38119 2 Port HDMI 8K60 Bi-Directional Switch, Supports 48G resolutions up to 8K@60Hz, with additional support for HDR, 2 y

The Lindy HDMI 8K60 Bi-Directional Switch allows the user to connect two 8K source devices such as Blu-Ray players or games consoles to a single 8K display or projector and easily switch between them at the push of a button. Alternatively, connect one 8K source can be connected to two 8K displays or projectors and switch between displays at the touch of a button.

With support for resolutions up to 8K 7680x4320 @ 60Hz or 3840x2160 @ 120Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.

Specifications

AV Interface:
HDMI

Interface Standard:
HDMI 2.1

Supports Bandwidth:
48Gbit/s

Maximum Resolution:
7680x4320@60Hz 4:2:0 10bit
3840x2160@120Hz 4:4:4 10bit

HDCP Support:
HDCP 2.3

Supported Audio:
Pass-Through

Special Features:
HDR10

Connectors

Input:
2 x HDMI Type A (Female)

Output:
HDMI Type A (Female)

Power:
USB Micro-B (Female)

Physical Properties

Dimensions (approx.) WxDxH:
102x45x14mm (4.02x1.77x0.55in)

Housing Material:
ABS

Net Weight:
0.047kg (0.1lb)

Operating Temperature:
0°C - 70°C (32°F - 158°F)

Storage Temperature:
-10°C - 80°C (14°F - 176°F)

Humidity:
5 - 90% RH (non-condensing)

Power Requirements:
5VDC 1A

Colour:
Black

Miscellaneous

Packaging Type:
Carton Box

Packaging Dimensions:
127x93x17mm (5x3.66x0.67in)

Gross Weight:
0.088kg (0.19lb)

Warranty (Years):
2

Product Compliance:
CE, UKCA, FCC, RoHS & REACH

Package Contents
2 Port HDMI Switch
0.8m USB A to Micro-B cable
Lindy Manual
