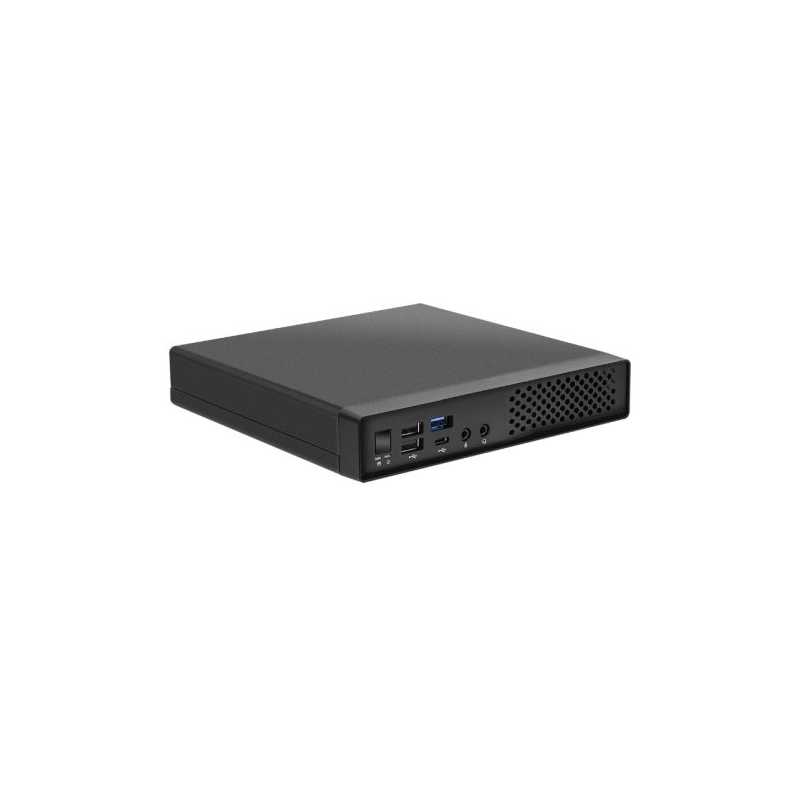

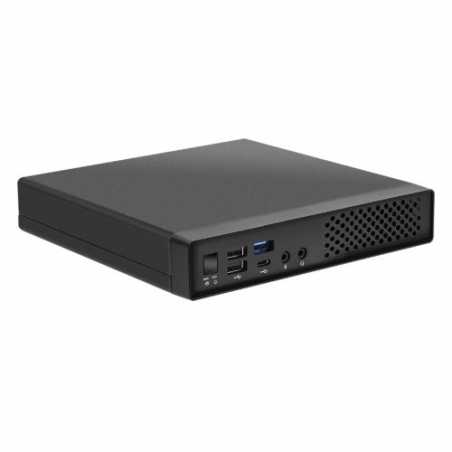

Asrock Jupiter H610 Mini Desktop Barebone PC, LGA1700 (H610), DDR4 SO-DIMM, 2.5", M.2, HDMI, 2x DP, USB-C, COM Port, VESA - No
£234.85
VAT included
Delivered within 1-2 days.
Tiny but Awesome
Jupiter 600 series features the flexibility and expandability in a compact size suited to a wide range of applications such as office, retail, healthcare, transportation and industry. With support for 13th Gen Intel Core processors up to 65 watts, dual DDR4 3200MHz memory, and comprehensive connectivity, Jupiter 600 series provides powerful performance to meet user's needs.
- Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700), up to 65W
- Dual DDR4-3200MHz SO-DIMMs, up to 64GB
- Integrated thermal solution
- Multi Video Outputs:2 x DisplayPort (co-lay D-Sub), HDMI
- 2 x USB 3.2 Gen1 Type-C, 5 x USB 3.2 Gen1 Type-A
- 2 x USB 2.0
- Support RS232 (COM) port
- 2 x M.2 (2280) slot for SSD (1 x PCIe Gen4 x4)
- M.2 (2230) slot for Wi-Fi
- Optional 2W Speaker
- Optional TPM 2.0 IC
- 179 x 178 x 34mm / 1.07L
Proprietary Thermal Solution
- Copper based heatsink
- High efficiency blower
Three-storage Design
Three-storage design for fast data transfer speed and high storage capacity.*
- 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
- 1 x Hyper M.2 (2280) - PCIe Gen4 x4
- 1 x Ultra M.2 (2280) -PCIe Gen3 x4
*JPT 600 series cannot support 2.5" HDD and 2 x M.2 SSD at the same time. If you want to install 2 x M.2 SSD, please remove HDD bracket and use fanless Heatsink (optional accessory).
Optional Wi-Fi Module*
Jupiter H610 supports optional Intel M.2 Wi-Fi & Bluetooth Module:
Intel AX-210
Intel AC-3168
*Sold separately
Rich Connectivity
Comprehensive connectivity with nine USB ports including a USB 3.2 Gen1 Type-C on each front and rear panel, three displays and a COM port means Jupiter 600 series is ideal for use to business, POS and digital signage.
Enhanced Productivity
With support for two DisplayPort and one HDMI connectors at the same time, Jupiter 600 series lets you increase your productivity at work.
Security Solutions
- Chassis Intrusion
- Get alert if Jupiter's chassis has been opened.
- Kensington Lock Slot
- Protect Jupiter from theft.
- TPM 2.0 (sold separately)
VESA Mount
Let you mount Jupiter behind the monitor easily.
90BXG4G01-A20GA0F
4 Items
Data sheet
- Processor
- None
- Wireless
- -
- Accessories
- 1 x Quick Installation Guide1 x SATA Data with Power Cable1 x Screws Pack1 x Stand1 x VESA Mount2 x Antennas
- Memory
- None
- Optical Drive
- None
- Warranty
- 3 Year Replacement Warranty
- Chipset
- Intel H610
- LAN
- GB LAN
- Package Type
- Retail
- Additional Features
- See Overview
- Dimensions
- 179 x 178 x 34 mm1.1L
- Operating System
- No O/S
- Memory Details
- 2 x DDR4-3200MHz SO-DIMM (non-ECC)Max. 64GB
- Processor Details
- Supports 13th Gen & 12th Gen Intel Processors (LGA1700)Max. TDP 65W
- Chassis
- Asrock Jupiter Mini Desktop
- Hard Drive
- None
- SSD Drive
- None
- Sound
- Realtek ALC2691 x Head Phone with Mic Jack1 x Mic-In1 x 2W Speaker
- Keyboard and Mouse
- No
- Graphics
- 1 x HDMI1 x DisplayPort 1.4 (DP1)1 x DisplayPort 1.2 (DP2)
- Tower / Small Form Factor
- Small Form Factor
- Supported Drives
- 1 x SATA 6Gb 2.5" 7mm/9.5mm1 x Hyper M.2 (2280) PCIe 4.0 x41 x Hyper M.2 (2280) PCIe 3.0 x4*Cannot support 2.5” HDD & 2x M.2 SSDs at the same time. If you want to install 2x M.2 SSDs, please remove HDD bracket and use fanless heatsink (sold separately).
- Front I/O
- 1 x USB 3.2 Gen1 Type-A1 x USB 3.2 Gen1 Type-C2 x USB 2.01 x Headphone/Headset Jack1 x Power Button
- Back I/O
- 1 x DC Jack (Compatible with the 19V power adapter)1 x HDMI2 x DisplayPort1 x COM Port4 x USB 3.2 Gen1 Type-A1 x USB 3.2 Gen1 Type-C1 x RJ-45 LAN Port with LED
- Power Unit
- 120W/19V Adapter
- Bluetooth
- -
- Fully Built / Barebone
- Barebone
Specific References
- EAN13
- 4710483943171
