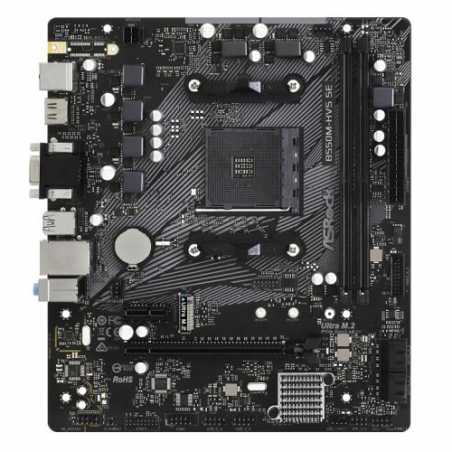

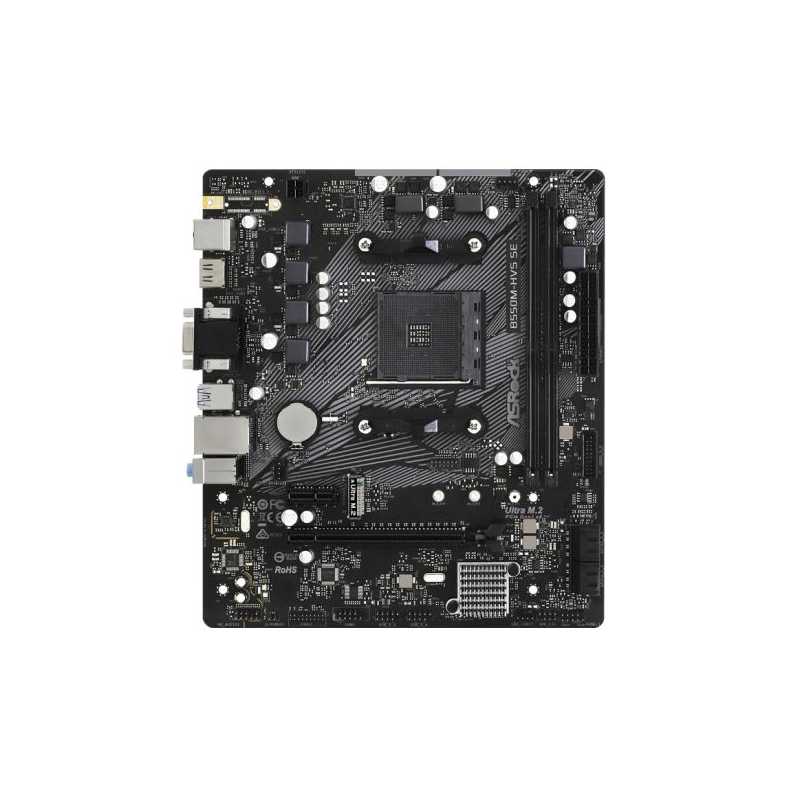

Asrock B550M-HVS SE, AMD B550, AM4, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2
search
  • Asrock B550M-HVS SE, AMD B550, AM4, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2

Asrock B550M-HVS SE, AMD B550, AM4, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2

£69.00
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock




B550M-HVS SE


  • Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
  • 6 Phase Power Design
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: D-Sub, HDMI
  • 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • 4 SATA3, 1 Ultra M.2 (Gen3 x4 & SATA3)
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
  • Realtek Gigabit LAN





6 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.





Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.





AMD Smart Access Memory

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.





HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.





AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.





Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.






Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.



ASROCK
B550M-HVS SE

Data sheet

Wireless
-
RAM Speeds
4600+(OC)
Accessories
1 x I/O Shield1 x User Manual2 x SATA Data Cables1 x Screw for M.2 Socket
USB Ports Supported
Rear:1 x USB 3.2 Gen1 Type-C3 x x USB 3.2 Gen1 Type-A2 x USB 2.0Front:2 x USB 3.2 Gen1 Type-A4 x USB 2.0
Storage
4 x SATA3 III1 x M.2 (2242/2260/2280) - SATA & PCIe 3.0 x4
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD B550
DDR Type
DDR4
RAM Technology
DDR4, Dual ChannelNon-ECC, un-buffered memorySupports Extreme Memory Profile (XMP)
RAM Slots
2 x DIMM
Maximum Memory
64GB
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard1 x D-Sub1 x HDMI2 x USB 2.04 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x SPI TPM1 x COM Port1 x Chassis Intrusion and Speaker1 x CPU Fan2 x Chassis Fan1 x 24 pin ATX1 x 4 pin 12V1 x Front Panel Audio2 x USB 2.01 x USB 3.2 Gen1
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x VGA1 x HDMI
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16)1 x PCIe 3.0 x1
