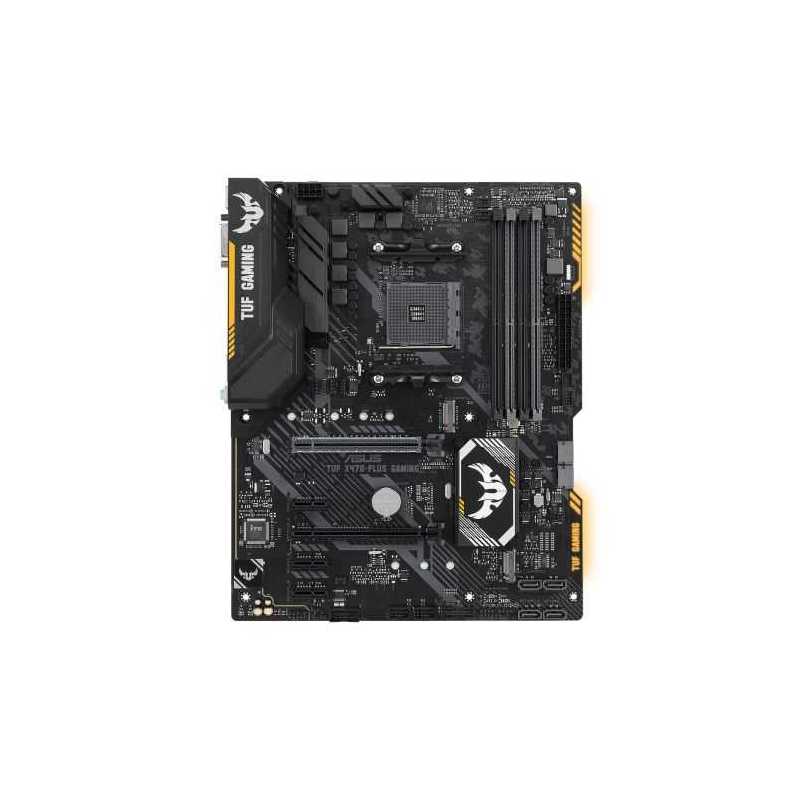

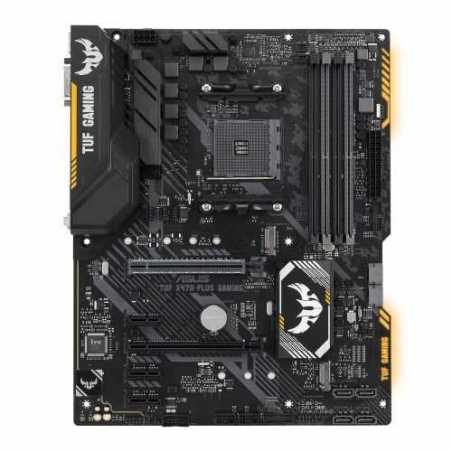

Asus TUF X470-PLUS GAMING, AMD X470, AM4, ATX, DDR4, DVI, HDMI, XFire, RGB Lighting, M.2
£165.78
VAT included
AMD X470 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 3200MHz support, 32Gbps M.2, and native USB 3.1 Gen 2.
- GPU Temperature Sensing & Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Arm your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY Experience
______________________________________________________________
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF Gaming Alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Ballistix, Cooler Master, Corsair, G.Skill, In Win and Themaltake. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships, making the TUF Gaming Alliance ever stronger.
TUF Protection
______________________________________________________________
Safeslot
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
ESD Guards
Electrostatic discharge protection
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge - greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF Capacitors
+20% temperature tolerance and 5X-longer lifespan.
TUF Mosfets
Certified military-grade MOSFETs with lower RDS(on)*.
TUF LANGuard
Best Surge Protection
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Performance Level UP
______________________________________________________________
Flexible Cooling Controls
GPU Temperature Sensing
System temperatures are key to a stable gaming rig - especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 4 Core software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
Fan Xpert 4 Core
TUF X470-PLUS Gaming features the most comprehensive fan controls ever, configurable via Fan Xpert 4 Core and our award-winning UEFI BIOS.
DDR4 Support
TUF Gaming motherboards are subjected to stringent tests to ensure they're ready for any gaming environment. That foundation is backed by extensive validation lists that include memory kits for a range of budgets. Whether you're building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it's easy to pick the right kit for your TUF Gaming rig.
Game your Way
______________________________________________________________
Gaming Audio
DTS Custom for Gaming Headsets
Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets - Aerial, Soundscape, and Tactical - for different genres, you'll have a distinct advantage in every game.
Soundscape Mode
The ideal audio envelope for MMO, RPG, action and horror games - your ears will put you in the center of the action!
Aerial Mode
Experience audio as though hovering above the game world, with sound coming from ahead - perfect for MOBA, RTA, strategy and sports titles!
Tactical Mode
Shhh - is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!
Outshine the Competition
Aura Sync
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
AMD X470 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 3200MHz support, 32Gbps M.2, and native USB 3.1 Gen 2.
- GPU Temperature Sensing & Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics
- TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
- Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
- Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear
Arm your Battlestation
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Easy PC DIY Experience
TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.
TUF Gaming Alliance
TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component manufacturers, including trusted brands like Ballistix, Cooler Master, Corsair, G.Skill, In Win and Themaltake. A growing range of compliant parts, from PC chassis and power supplies to CPU coolers and DRAM, guarantee both compatibility and aesthetic harmony. We're also continually increasing our partnerships, making the TUF Gaming Alliance ever stronger.
TUF Protection
Protect your graphics card investment
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
Electrostatic discharge protection
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge - greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF Capacitors
+20% temperature tolerance and 5X-longer lifespan.
TUF Mosfets
Certified military-grade MOSFETs with lower RDS(on)*.
TUF LANGuard
Best Surge Protection
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
Performance Level UP
GPU Temperature Sensing
System temperatures are key to a stable gaming rig - especially GPU temperatures. TUF Gaming motherboards include Fan Xpert 4 Core software that's able to intelligently control system fans based upon the input of multiple sensors, including the temperature of ASUS graphics cards*. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.
Fan Xpert 4 Core
TUF X470-PLUS Gaming features the most comprehensive fan controls ever, configurable via Fan Xpert 4 Core and our award-winning UEFI BIOS.
DDR4 Support
TUF Gaming motherboards are subjected to stringent tests to ensure they're ready for any gaming environment. That foundation is backed by extensive validation lists that include memory kits for a range of budgets. Whether you're building a gaming PC that hits the performance sweet spot or aiming for sensible specs, it's easy to pick the right kit for your TUF Gaming rig.
Game your Way
DTS Custom for Gaming Headsets
Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets - Aerial, Soundscape, and Tactical - for different genres, you'll have a distinct advantage in every game.
Soundscape Mode
The ideal audio envelope for MMO, RPG, action and horror games - your ears will put you in the center of the action!
Aerial Mode
Experience audio as though hovering above the game world, with sound coming from ahead - perfect for MOBA, RTA, strategy and sports titles!
Tactical Mode
Shhh - is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!
Outshine the Competition
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.
Ultrafast Transfer Speed
Native 10Gbps USB 3.1 Gen 2 Type-A Support
With dual backward-compatible USB 3.1 Gen 2 Type-A, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps – or twice as fast as USB 3.1 Gen 1.
Speed up with Onboard M.2
With x4 PCI Express® 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, making your PC and apps work as fast as possible.
AMD CPU and Chipset Features
AM4 Socket for AMD Ryzen 2nd Generation / Ryzen with Radeon VEGA Graphics / Ryzen™ 1st Generation / 7th Generation A-series / Athlon X4 Processors
The high-performance Ryzen™ processor supports up to eight cores, and is based on the innovative Zen core architecture. Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU. AMD AM4-socket processors feature dual-channel DDR4 memory, native 5Gbps USB 3.1 Gen 1 and 16 PCI Express® 3.0/2.0 lanes for superb performance.
AMD X470 Chipset
The AMD X470 chipset delivers outstanding overclocking capabilities for the latest AMD® AM4-socket Ryzen™ processors, 7th Generation A S-series APUs and Athlon™ CPUs. It is optimized for multiple GPU configurations including NVDIA SLI™ and AMD CrossFireX™. It also provides two 10Gbps USB 3.1 Gen 2 ports and eight 6Gbps SATA ports for faster data retrieval.
90MB0XL0-M0EAY0
Data sheet
- .
- 1 x Clear CMOS, 1 x COM port
1 x Clear CMOS1 x COM port - PCI Express
- Ryzen 2nd/1st Gen CPUs
Ryzen 2nd/1st Gen CPUs:1 x PCIe 3.0 x16 (x16 mode) Ryzen with Vega Graphics/7th Gen CPUs:1 x PCIe 3.0 x16 (x8 mode) AMD X470 chipset:1 x PCIe 2.0 x16 (max at x4 mode) 3 x PCIe 2.0 x1 - Wireless
- -
- RAM Speeds
- Ryzen 2nd Gen CPUs
Ryzen 2nd Gen CPUs:3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz7th Gen A-series/Athlon Processors:2400/2133 MHz - Accessories
- Users manual, ASUS Q-Shield, 2 x SATA 6Gb/s cable(s), 1 x M.2 Screw Package, 1 x Supporting DVD, 1 x TUF GAMING Sticker, 1 x TUF Certification card(s)
Users manualASUS Q-Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD1 x TUF GAMING Sticker1 x TUF Certification card(s) - USB Ports Supported
- "2 x USB 3.1 Gen2 Type-A (at back), 2 x USB 3.1 Gen1 Type-C (at back), 6 x USB 3.1 Gen1 (2 at back, 4 at mid-board), 6 x USB 2.0 (2 at back, 4 at mid-board)"
2 x USB 3.1 Gen2 Type-A (at back)2 x USB 3.1 Gen1 Type-C (at back)6 x USB 3.1 Gen1 (2 at back, 4 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board) - Storage
- 6 x SATA III, 1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe, 1 x M.2 Socket (2242/2260/2280/22110) - SATA
6 x SATA III1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe1 x M.2 Socket (2242/2260/2280/22110) - SATA - RAID
- "RAID 0, 1, 10"
RAID 0, 1, 10 - Warranty
- 3 Years
5 Years - Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AM4
AMD AM4 - Chipset
- AMD X470
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD CrossFireX
- PCI
- -
- LAN
- GB LAN
- Audio
- Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x PS/2 keyboard/mouse, 1 x DVI-D, 1 x HDMI, 1 x LAN (RJ45), 2 x USB 3.1 Gen2 Type-A, 1 x USB 3.1 Gen1 Type-C , 2 x USB 2.0 , 2 x USB 3.1 Gen1, 3 x Audio jacks
1 x PS/2 keyboard/mouse1 x DVI-D1 x HDMI1 x LAN (RJ45)2 x USB 3.1 Gen2 Type-A1 x USB 3.1 Gen1 Type-C 2 x USB 2.0 2 x USB 3.1 Gen13 x Audio jacks - Internal I/O Connectors
- 1 x RGB, 2 x USB 3.1 Gen1, 2 x USB 2.0 , 2 x M.2 Socket 3, 6 x SATA 6Gb/s, 1 x CPU Fan, 3 x Chassis Fan, 1 x AIO_PUMP, 1 x 24-pin EATX, 1 x 8-pin ATX 12V, 1 x Front audio, 1 x System panel
1 x RGB2 x USB 3.1 Gen12 x USB 2.0 2 x M.2 Socket 36 x SATA 6Gb/s1 x CPU Fan3 x Chassis Fan1 x AIO_PUMP1 x 24-pin EATX1 x 8-pin ATX 12V1 x Front audio1 x System panel - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 1.1800 kg
- Graphics Ports
- 1 x DVI-D, 1 x HDMI
1 x DVI-D1 x HDMI - Additional Features
- See Overview
- Graphics
- Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series APU
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes
Yes (RGB)
