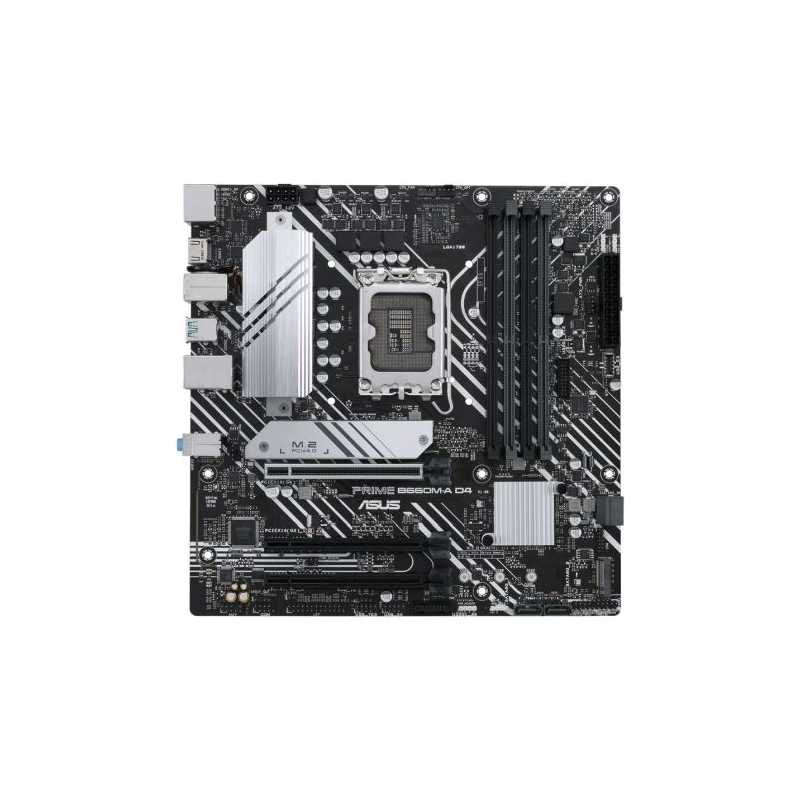

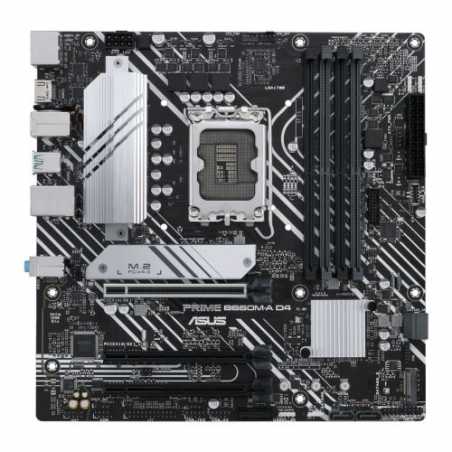

Asus PRIME B660M-A D4-CSM - Corporate Stable Model, Intel B660, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, PCIe4, 2x M.2
search
  • Asus PRIME B660M-A D4-CSM - Corporate Stable Model, Intel B660, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, PCIe4, 2x M.2

Asus PRIME B660M-A D4-CSM - Corporate Stable Model, Intel B660, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, PCIe4, 2x M.2

£232.50
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, DP,2 x HDMI®, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync


  • Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors
  • Ultrafast connectivity : PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C®
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • ASUS Control Center Express(ACCE) to make IT endpoint management easier







ASUS Corporate Stable Model

ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.






ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.







Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.






Cool to the Core

Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.






Build on a Solid Foundation

Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.






Little Things Make a Big Difference

Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.



ASUS
90MB19K0-M1EAYC

Data sheet

.
1 x Aura RGB1 x Clear CMOS1 x COM Port1 x Front Panel Audio1 x LPT1 x S/PDIF Out1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel
Wireless
-
RAM Speeds
up to 5333(OC)
Accessories
2 x SATA 6Gb/s cables1 x I/O Shield1 x M.2 Rubber Package1 x M.2 SSD screw package1 x Support DVD1 x User manual
USB Ports Supported
Rear:2 x USB 3.2 Gen2 Type-A4 x USB 2.0Front:4 x USB 3.2 Gen11 x USB 3.2 Gen1 Type-C5 x USB 2.0
Storage
4 x SATA III1 x M.2 (2242/2260/2280) - PCIe 4.0 x41 x M.2 (2242/2260/2280) - PCIe 4.0 x4
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1700
Chipset
Intel B660
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)on-ECC, Un-buffered MemorySupports Intel Extreme Memory Profile (XMP)OptiMem II
RAM Slots
4 x DIMM
Maximum Memory
128GB
LAN
GB LAN
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
2 x USB 3.2 Gen2 Type-A4 x USB 2.01 x DisplayPort2 x HDMI1 x Intel 1Gb Ethernet3 x Audio jacks1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan2 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M)4 x SATA 6Gb/s2 x USB 3.2 Gen11 x USB 3.2 Gen1 Type-C2 x USB 2.01 x USB 2.03 x AURA Addressable Gen2
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
2 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
1 x PCIe 4.0 x161 x PCIe 3.0 x16 (x4) 1 x PCIe 3.0 x16 (x1)
