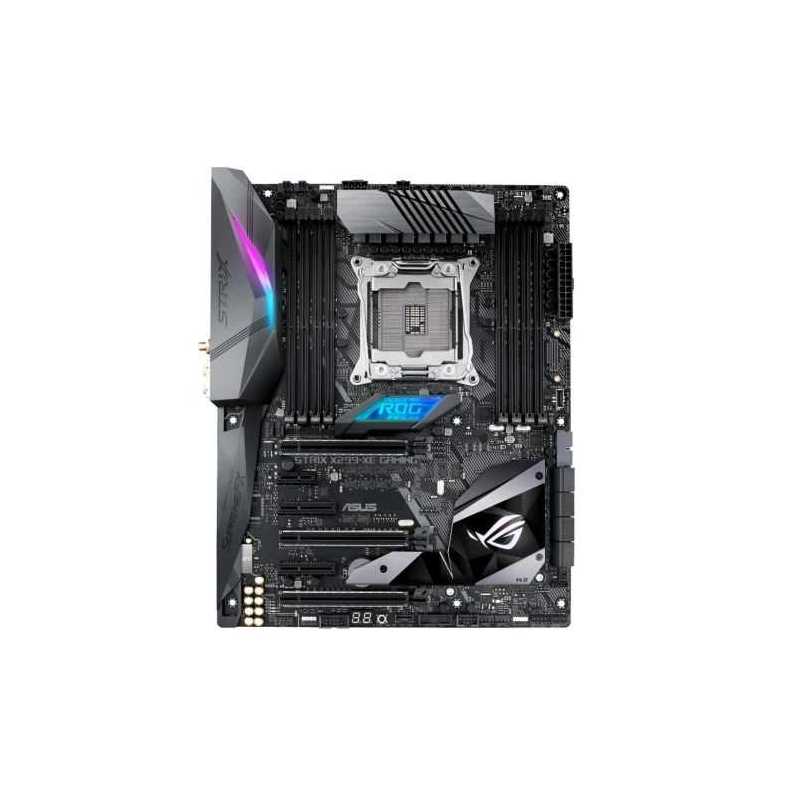

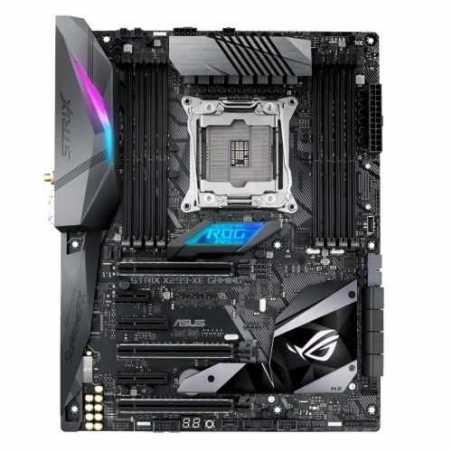

Asus ROG STRIX X299-XE GAMING, Intel X299, 2066, ATX, 8 DDR4, SLI/XFire, Wi-Fi, RGB Lighting, Including STRIX Extras, M.2
£403.92
VAT included
Intel X299 ATX gaming motherboard with Aura Sync RGB LED lighting, 802.11ac Wi-Fi, DDR4 4133MHz, dual M.2, SATA 6Gbps and USB 3.1 type - A/C
- Intel® Core™ X Series processor family: Ready for the latest LGA 2066 socket CPUs.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
- Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teamed with Sonic Studio III create an aural landscape that draws you deeper into the action.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C™ connectors.
- Gaming networking: Intel Gigabit Ethernet, LANGuard GameFirst and 2x2 802.11ac Wi-Fi with MU-MIMO support.
- Gaming durability: ASUS SafeSlot and premium components for maximum endurance.
- ROG Strix freebies: Addressable RGB strip, fan, fan bracket and VGA holder all included, plus loads of little extras.
ROG Strix X299-XE Gaming is loaded with powerful tuning, overclocking, cooling and personalization innovations to make your next build as agile as your ambitions. We've channeled ROG engineering ingenuity into ROG Strix X299-XE Gaming to create a standout ATX motherboard that's tricked out with superior SupremeFX audio for deeper in-game immersion, Aura Sync lighting with an all-new addressable-RGB-strip header to unleash infinite illumination possibilities, and special mounts that make it easy to create your own 3D-printed upgrades. Infused with the essential gaming spirit that is ROG, ROG Strix X299-XE Gaming is hungry for high-performance Intel® Core™ X Series processors - and ready to satisfy your desire for X299.
Personalisation
______________________________________________________________
______________________________________________________________
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
RGB Headsers
______________________________________________________________
______________________________________________________________
Lighting Perfected
ROG Strix X299-XE Gaming features a duo of onboard 5050 RGB headers and an addressable header that can be connected to compatible lighting strips, fans, coolers, and PC cases, creating a new world of illumination possibilities. It also comes with a ROG addressable strip.
Performance
______________________________________________________________
VRM Cooling
The latest high-core-count Intel Core i7 and i9 CPUs consume serious amounts of power - so ROG Strix X299-XE Gaming is equipped with serious VRM cooling. Featuring a high-mass, finned heatsink, the expansive surface area dissipates heat efficiently. And, to push the platform as far as you desire, we've even included a bracket that allows you to mount a bundled fan to accelerate the airflow.
M.2 Heatsink
Perfected Cooling for Unleashing Performance
ROG Strix X299-XE Gaming motherboards are equipped with an M.2 heatsink integrated into the PCH heatsink. With a huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD - for consistent performance and reliability. Featuring a stylish angular design, the M.2 heatsink adds a beautiful touch to the build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring.
5-Way Optimization
______________________________________________________________
______________________________________________________________
One-Click Overclock and Cooling, Done!
One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.
Flexible Cooling Controls for Air or Liquid
With ROG Strix X299-XE Gaming you have comprehensive control over fans, water pumps and even all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum - keeping your system whisper-quiet when performing light tasks.
Cooler by Design
ROG Strix X299-XE Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:
- Multiple temperature sources
- Water pump+
- 4-pin PWM/DC fan
- ASUS FAN Extension card support
- Smart protection
DDR4 Overclocking Strength in Numbers
With optimized trace paths for time-aligned signaling and minimal crosstalk, Third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4 4133 MHz and beyond.
OC Design- Asus Pro Clock II Technology
A dedicated base-clock generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing the flexibility to extract every ounce of performance from Intel® Core™ X-series processors.
Gaming Audio
______________________________________________________________
______________________________________________________________
SupremeFX
Immerse yourself in sound with ROG Strix's SupremeFX audio technology. Utilizing the S1220A codec, ROG Strix's SupremeFX audio solution is engineered to provide a flat frequency response and offer a neutral, detailed sound signature. The addition of two op-amps on the front panel headphone output ensures adequate voltage and current to drive headphones to their full potential. And our Sonic Studio software grants you full control over every aspect of audio, including noise reduction algorithms for communications, plus EQ adjustments to get the most from your headset or speakers.
Intel X299 ATX gaming motherboard with Aura Sync RGB LED lighting, 802.11ac Wi-Fi, DDR4 4133MHz, dual M.2, SATA 6Gbps and USB 3.1 type - A/C
- Intel® Core™ X Series processor family: Ready for the latest LGA 2066 socket CPUs.
- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
- Onboard M.2 heatsink: Cools your M.2 drive, delivering consistent storage performance and enhanced reliability.
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teamed with Sonic Studio III create an aural landscape that draws you deeper into the action.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C™ connectors.
- Gaming networking: Intel Gigabit Ethernet, LANGuard GameFirst and 2x2 802.11ac Wi-Fi with MU-MIMO support.
- Gaming durability: ASUS SafeSlot and premium components for maximum endurance.
- ROG Strix freebies: Addressable RGB strip, fan, fan bracket and VGA holder all included, plus loads of little extras.
ROG Strix X299-XE Gaming is loaded with powerful tuning, overclocking, cooling and personalization innovations to make your next build as agile as your ambitions. We've channeled ROG engineering ingenuity into ROG Strix X299-XE Gaming to create a standout ATX motherboard that's tricked out with superior SupremeFX audio for deeper in-game immersion, Aura Sync lighting with an all-new addressable-RGB-strip header to unleash infinite illumination possibilities, and special mounts that make it easy to create your own 3D-printed upgrades. Infused with the essential gaming spirit that is ROG, ROG Strix X299-XE Gaming is hungry for high-performance Intel® Core™ X Series processors - and ready to satisfy your desire for X299.
Personalisation
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
RGB Headsers
Lighting Perfected
ROG Strix X299-XE Gaming features a duo of onboard 5050 RGB headers and an addressable header that can be connected to compatible lighting strips, fans, coolers, and PC cases, creating a new world of illumination possibilities. It also comes with a ROG addressable strip.
Performance
VRM Cooling
The latest high-core-count Intel Core i7 and i9 CPUs consume serious amounts of power - so ROG Strix X299-XE Gaming is equipped with serious VRM cooling. Featuring a high-mass, finned heatsink, the expansive surface area dissipates heat efficiently. And, to push the platform as far as you desire, we've even included a bracket that allows you to mount a bundled fan to accelerate the airflow.
M.2 Heatsink
Perfected Cooling for Unleashing Performance
ROG Strix X299-XE Gaming motherboards are equipped with an M.2 heatsink integrated into the PCH heatsink. With a huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD - for consistent performance and reliability. Featuring a stylish angular design, the M.2 heatsink adds a beautiful touch to the build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring.
5-Way Optimization
One-Click Overclock and Cooling, Done!
One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
- Fans stay whisper-quiet for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
- All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.
Flexible Cooling Controls for Air or Liquid
With ROG Strix X299-XE Gaming you have comprehensive control over fans, water pumps and even all-in-one (AIO) coolers, via either Fan Expert 4 or our award-winning UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum - keeping your system whisper-quiet when performing light tasks.
Cooler by Design
ROG Strix X299-XE Gaming features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:
- Multiple temperature sources
- Water pump+
- 4-pin PWM/DC fan
- ASUS FAN Extension card support
- Smart protection
DDR4 Overclocking Strength in Numbers
With optimized trace paths for time-aligned signaling and minimal crosstalk, Third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4 4133 MHz and beyond.
OC Design- Asus Pro Clock II Technology
A dedicated base-clock generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and base-clock overclocking control, providing the flexibility to extract every ounce of performance from Intel® Core™ X-series processors.
Gaming Audio
SupremeFX
Immerse yourself in sound with ROG Strix's SupremeFX audio technology. Utilizing the S1220A codec, ROG Strix's SupremeFX audio solution is engineered to provide a flat frequency response and offer a neutral, detailed sound signature. The addition of two op-amps on the front panel headphone output ensures adequate voltage and current to drive headphones to their full potential. And our Sonic Studio software grants you full control over every aspect of audio, including noise reduction algorithms for communications, plus EQ adjustments to get the most from your headset or speakers.
Connectivity
Speed up with Onboard M.2 up to 32GBPs
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It is the perfect choice for an operating system or application drive, providing fast access to data.
VROC
Upgrade Your Way
Unleash the ROG Strix X299-XE Gaming Virtual RAID on CPU (VROC) feature with the addition of an ASUS Hyper M.2 X16 Card*, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives - for a total bandwidth of up to 128Gbps. With VROC, you can utilize CPU PCIe lanes to configure a bootable RAID array, eliminating traditional DMI bottlenecks, so that storage transfers aren't held back by other traffic.
Intel Gigabit Ethernet
Lower CPU Workload High TCP & UDP Throughput
Featuring the latest Intel® Ethernet (I219-V) for faster, smoother gaming. Intel Ethernet controllers have a natural synergy with their processors and chipsets, reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for games and other tasks.
2x2 Wi-Fi with MU MIMO
Next-level 802.11ac Wi-Fi with 2x2 dual-band 2.4/5GHz antennas offer up to 867Mbps* transfer speeds - and the very latest Multi-User MIMO (MU-MIMO) technology ensures that every connected user** experiences the best wireless and online speeds!
Gamer's Guardian
Procool Power Connectors
ASUS ProCool is the power connector reinvented! Compared with traditional power connectors, ProCool connectors ensure an exceptionally close and secure connection with the ROG Strix X299-XE Gaming motherboard. This design is stronger, and also benefits power efficiency: the flush connection enables lower impedance and better heat dissipation, allowing cooler operating temperature. ProCool even has a neat right-angled plug, helping you to keep the wiring out of the way!
Protect your Graphics Card Investment
ROG Strix X299-XE Gaming features a VGA holder that eliminates ugly and potentially damaging graphics card sag by supporting the motherboard to prevent bowing and bending. The VGA holder is crafted from a single piece of strong sheet metal and is able to support up to 15 kg - so it provides serious support for even the heaviest graphic card!
The Power of Intel
Intel® X299 chipset
The Intel X299 Express chipset supports LGA 2066- socket Intel Core X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.1 Gen 1 ports, 8 SATA 6Gbps ports and 32Gbps M.2 support for faster data retrieval.
Intel® Core™ X-series processors for LGA 2066 socket
Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes.
Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.
90MB0VW0-M0EAY0
Data sheet
- .
- 1 x 10-in-1 ROG cable label, 1 x M.2 screw kit, Thermal sensor cables, Cable ties, ROG Fan Label, 1 x Ext Cable for RGB strips, 1 x Ext cable for Addressable LED, 1 x 3D printing mount package
1 x 10-in-1 ROG cable label1 x M.2 screw kitThermal sensor cablesCable tiesROG Fan Label1 x Ext Cable for RGB strips1 x Ext cable for Addressable LED1 x 3D printing mount package
1 x AIO_PUMP, 1 x W_PUMP+, 1 x 24-pin EATX, 4-pin & 8-pin ATX 12V, 1 x Front panel, 1 x System panel, 1 x 5-pin EXT_FAN, 1 x Thermal sensor, 1 x Power-on button, 1 x Clear CMOS jumper, 1 x USB 3.1 Gen 2 front panel connector, 1 x CPU_OV jumper
1 x AIO_PUMP1 x W_PUMP+1 x 24-pin EATX4-pin & 8-pin ATX 12V1 x Front panel1 x System panel1 x 5-pin EXT_FAN1 x Thermal sensor1 x Power-on button1 x Clear CMOS jumper1 x USB 3.1 Gen 2 front panel connector1 x CPU_OV jumper - PCI Express
- 3 x PCIe 3.0 x16, 2 x PCIe 3.0 x4, 1 x PCIe 3.0 x1
3 x PCIe 3.0 x162 x PCIe 3.0 x41 x PCIe 3.0 x1 - Wireless
- Wi-Fi 802.11 a/b/g/n/ac, Bluetooth V4.2
Wi-Fi 802.11 a/b/g/n/acBluetooth V4.2 - RAM Speeds
- 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz
- Accessories
- ASUS Q-Shield, 1 x Vertical M.2 brackets, 4 x SATA cables, M.2 Screws, 1 x Wi-Fi antennas, 1 x MOS Cooling kit, 1 x ROG addressable LED strip, 1 x Strix door hanger, 1 x SLI HB BRIDGE, 1 x Q-Connector
ASUS Q-Shield1 x Vertical M.2 brackets4 x SATA cablesM.2 Screws1 x Wi-Fi antennas1 x MOS Cooling kit1 x ROG addressable LED strip1 x Strix door hanger1 x SLI HB BRIDGE1 x Q-Connector - USB Ports Supported
- "2 x USB 3.1 Gen 2 Type-A & Type-C (at back), 8 x USB 3.1 Gen 1 (4 at back, 4 at mid-board), 4 x USB 2.0 (2 at back, 2 at mid-board), 1 x USB 3.1 Gen 2 front panel connector"
2 x USB 3.1 Gen 2 Type-A & Type-C (at back)8 x USB 3.1 Gen 1 (4 at back, 4 at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)1 x USB 3.1 Gen 2 front panel connector - Storage
- 8 x SATA III, 1 x M.2 Socket - (2242/2260/2280) - SATA & PCIe, 1 x M.2 Socket - (2242/2260/2280/22110) - PCIe
8 x SATA III1 x M.2 Socket - (2242/2260/2280) - SATA & PCIe1 x M.2 Socket - (2242/2260/2280/22110) - PCIe - RAID
- "RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10 - Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 2066
Intel 2066 - Chipset
- Intel X299
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 8 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports NVIDIA Quad-GPU SLI Technology , Supports AMD Quad-GPU CrossFireX Technology
Supports NVIDIA Quad-GPU SLI Technology Supports AMD Quad-GPU CrossFireX Technology - PCI
- -
- LAN
- GB LAN
- Audio
- SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Back Panel I/O Ports
- 1 x LAN (RJ45), 2 x USB 3.1 Gen 2, 4 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x USB BIOS Flashback Button, 1 x ASUS Wi-Fi GO! module
1 x LAN (RJ45)2 x USB 3.1 Gen 24 x USB 3.1 Gen 12 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x USB BIOS Flashback Button1 x ASUS Wi-Fi GO! module - Internal I/O Connectors
- 1 x Aura Addressable Strip, 1 x AAFP, 2 x Aura RGB Strip, 2 x USB 3.1 Gen 1, 1 x USB 2.0, 2 x M.2 Socket 3, 1 x COM port, 8 x SATA 6Gb/s, 1 x M.2_FAN, 1 x VROC_HW_Key, CPU Fan & CPU OPT Fan, 2 x Chassis Fan
1 x Aura Addressable Strip1 x AAFP2 x Aura RGB Strip2 x USB 3.1 Gen 11 x USB 2.02 x M.2 Socket 31 x COM port8 x SATA 6Gb/s1 x M.2_FAN1 x VROC_HW_KeyCPU Fan & CPU OPT Fan2 x Chassis Fan - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 2.2000 kg
- Graphics Ports
- -
- Additional Features
- See Overview
- Graphics
- -
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes
Yes (RGB)
Specific References
- EAN13
- 4712900825145
