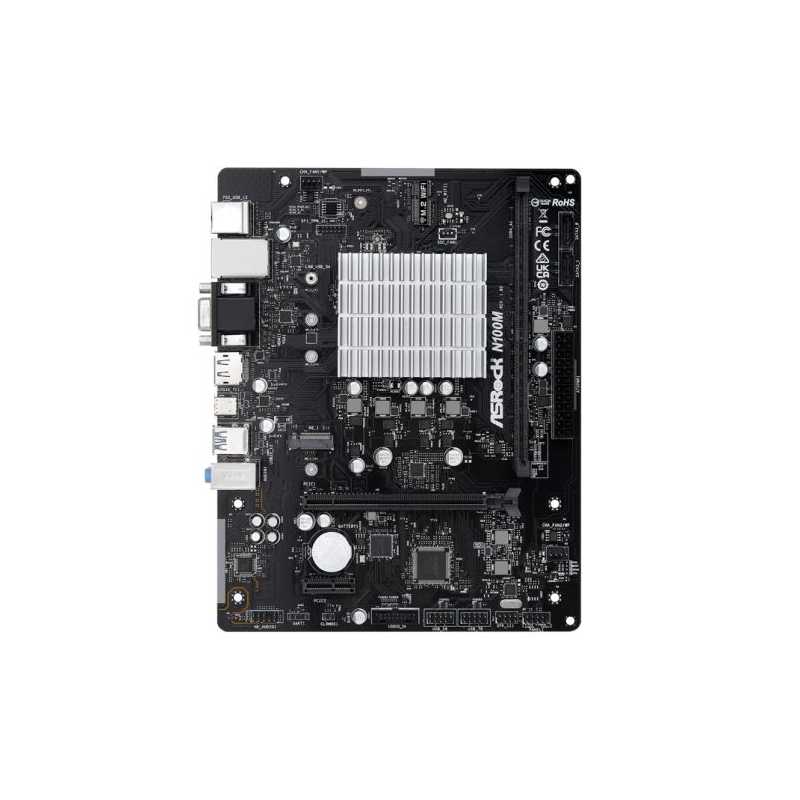

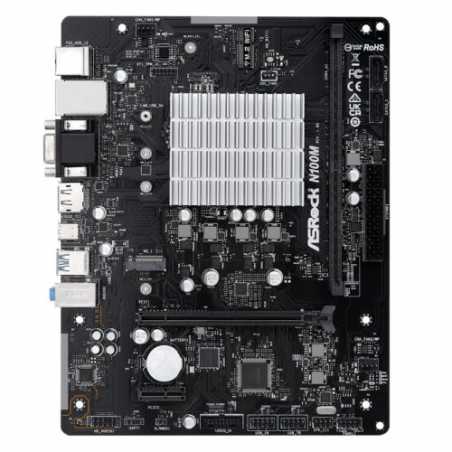

Asrock N100M, Integrated Intel Quad-Core N100, Micro ATX, 1 DDR4, VGA, HDMI, DP, 1x M.2
search
  • Asrock N100M, Integrated Intel Quad-Core N100, Micro ATX, 1 DDR4, VGA, HDMI, DP, 1x M.2

Asrock N100M, Integrated Intel Quad-Core N100, Micro ATX, 1 DDR4, VGA, HDMI, DP, 1x M.2

£125.08
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock




N100M


  • Intel® Quad-Core Processor N100 (up to 3.4 GHz)
  • Supports 1 DDR4 DIMM
  • 1 PCIe 3.0 x16 (x2 mode), 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: D-Sub, HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 2 SATA3, 1 M.2 (PCIe Gen3x2)
  • 1 USB 3.2 Gen2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer






Intel® Alder Lake-N N100 Processor

The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing.





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.





Fanless Design

The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment.





AV1 Decoding + 4K

Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz.





USB 3.2 Gen1 Type-C

USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.





M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.





Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!




ASROCK
N100M

Data sheet

Wireless
-
RAM Speeds
Up to 3200MHz
Accessories
1 x User Manual1 x I/O Shield2 x SATA Data Cables2 x Screws for M.2 Sockets
USB Ports Supported
Rear:1 x USB 3.2 Gen2 Type-C2 x USB 3.2 Gen14 x USB 2.0Front:2 x USB 3.2 Gen14 x USB 2.0
Storage
2 x SATA III1 x M.2 (2242/2260/2280 - PCIe 3.0 x2
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Embedded CPU
CPU
Intel Quad-Core Processor N100 (Up to 3.4 GHz)
DDR Type
DDR4
RAM Technology
DDR4 non-ECC, un-buffered
RAM Slots
1 x DIMM
Maximum Memory
32GB
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
2 x Antenna Mounting Points1 x PS/2 Mouse/Keyboard1 x D-Sub1 x HDMI1 x DisplayPort 1.41 x USB 3.2 Gen2 Type-C2 x USB 3.2 Gen14 x USB 2.01 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x SPI TPM1 x Chassis Intrusion and Speaker2 x Chassis/Water Pump Fan1 x 24 pin ATX1 x Front Panel Audio2 x USB 2.01 x USB 3.2 Gen1
CPU Support
N/A (Integrated CPU)
Package Type
Retail
Graphics Ports
1 x VGA1 x HDMI1 x DiisplayPort
Additional Features
See Overview
Graphics
Integrated Intel UHD Graphics24 EUs inside (Up to 750MHz)
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
1 x PCIe 3.0 x16 (supports x2 mode)1 x PCIe 3.0 x1
