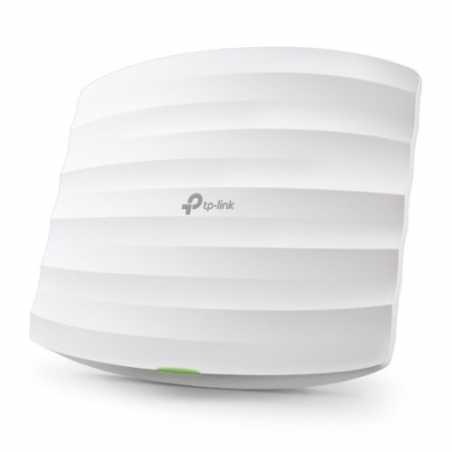

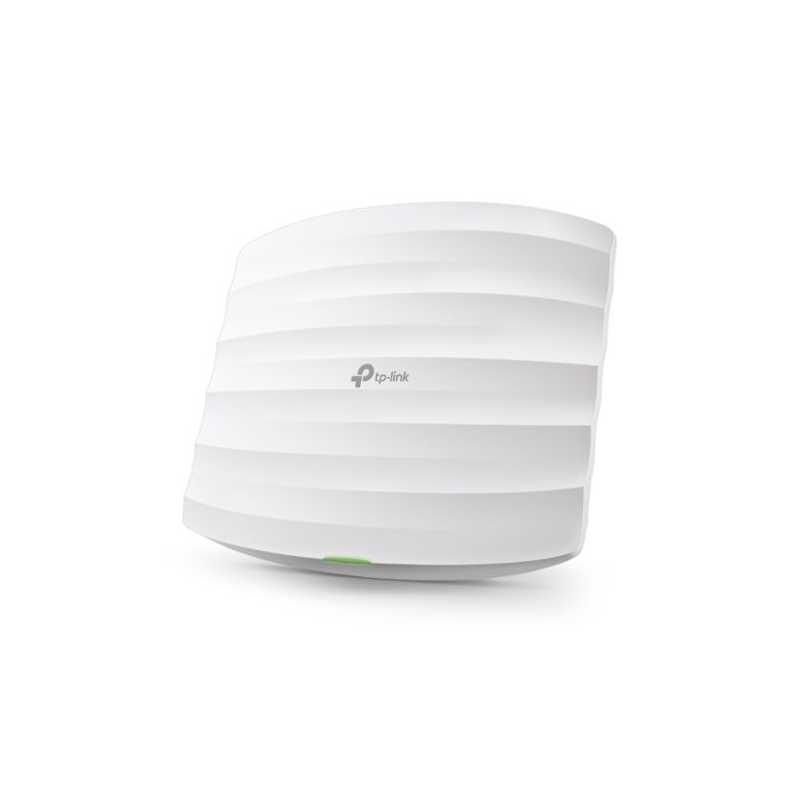

TP-LINK (EAP225) Omada AC1350 (867+450) Dual Band Wireless Ceiling Mount Access Point, PoE, GB LAN, Clusterable, MU-MIMO, Free S
search
  • TP-LINK (EAP225) Omada AC1350 (867+450) Dual Band Wireless Ceiling Mount Access Point, PoE, GB LAN, Clusterable, MU-MIMO, Free S

TP-LINK (EAP225) Omada AC1350 (867+450) Dual Band Wireless Ceiling Mount Access Point, PoE, GB LAN, Clusterable, MU-MIMO, Free S

£79.24
VAT included
Stock status: Very high
113 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point


  • Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
  • Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
  • Cloud centralized management and Omada app for ultra convenience and easy management
  • Compatibility with 802.3af and Passive PoE (PoE adpater included) support makes deployment effortless and flexible
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
  • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
  • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient



Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.



Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.



Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.



Multiple PoE Options for Easy Installation.
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.



Unified Wi-Fi for Multi-user Business Environment
The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.



Wireless Functions
  • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Band Steering
  • Load Balance
  • MU-MIMO
  • Airtime Fairness
  • Beamforming
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client



EAP225 V5
113 Items

Data sheet

.
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)QoS(WMM)Band SteeringLoad BalanceMU-MIMOAirtime FairnessBeamforming
Warranty
Limited Lifetime
Package Type
Retail
Package Weight
0.9600 kg
Dimensions
205.5 x 181.5 x 37.1 mm
Power Supply
802.3af PoE / 24V Passive PoE
Interface(s)
1 x Gigabit Ethernet (RJ-45) Port
Package Contents
Access Point EAP225Passive PoE AdapterPower CordMounting KitsInstallation Guide
Power Consumption
10.5 W
Wireless Functions
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)QoS(WMM)Band SteeringLoad BalanceMU-MIMOAirtime FairnessBeamforming
Wireless Security
Captive Portal AuthenticationAccess ControlWireless Mac Address FilteringWireless Isolation Between ClientsSSID to VLAN MappingRogue AP Detection802.1X Support
Antenna
Internal Antenna:2.4 GHz: 3x 4 dBi5 GHz: 2x 5 dBi
Wireless Standards
IEEE 802.11ac/n/g/b/a
Button(s)
Reset
Max Wireless Transfer Rate
867 Mbps
Max Wired Transfer Rate
10/100/1000 Mbps
Bands
Dual Band
Management
Omada AppOmada Hardware Controllers - OC300 & OC200Omada Software ControllerOmada Cloud-Based ControllerEAP Controller SoftwareEmail AlertsLED ON/OFF ControlManagement MAC Access ControlSNMP v1,v2cLocal/Remote SyslogTelnetSSHHTTP/HTTPSL3 ManagementMulti-s
Frequency
2.4GHz and 5GHz
Weatherproof
No
Environment (°C)
Operating Temperature: 0C~40C (32F~104F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Primary Function
Access Point
Access Point Mode
Yes (Access Point Mode)

Specific References

EAN13
6935364096922
