- Out of stock

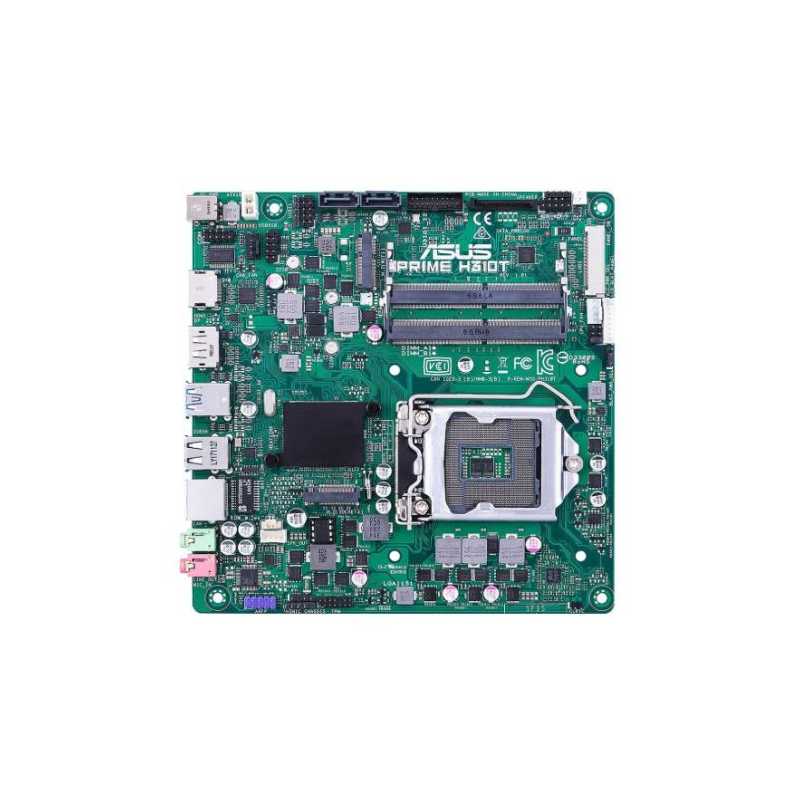

Asus PRIME H310T/CSM - Corporate Stable Model, Intel H310, 1151, Thin Mini ITX, DDR4 SO-DIMM, HDMI, DP, M.2, Business Features
£101.43
VAT included
Thin Mini ITX H310 business motherboard with enhanced security, reliability and manageability
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit to make customisation faster and more efficient
Business Motherboard
ASUS is the world's biggest and best-known motherboard brand. Famous for user-focused Designed Thinking, we understand the importance of security, stability and easy manageability for your business. Our latest lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customisation. Combined with our world-class after-sales service and guaranteed long-term availability to maximise your investment over the product lifecycle, ASUS business motherboards provide a high-quality, TCO-optimised solution for your business computing needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organisation to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Centre - server-grade IT management software.
Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organisations, including UL and Blue Angel, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
ASUS Shield
Enhances system security from bottom to top
ASUS Reliant
Ensures consistent performance with the finest components and rigorous reliability testing
Management Suite
Makes customisation and management more efficient
ASUS Shield
Enhances system security from bottom to top
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.
Trusted Platform Module (TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
Certified NIST SP 800-147
ASUS business motherboard is certified by the national computer security standards.
ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs one step to restore the latest BIOS update.
- Ensures safe BIOS updates
- Reduces maintenance frequency and costs
- Requires no extra software
- Provides automatic update failure detection and recovery
ASUS Reliant
Ensures consistent performance with the finest components and rigorous reliability testing
ASUS Trouble Shooting Solution
PRIME H310T onboard a TPM header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialisation and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.
ASUS Management Suite
Makes customisation and management more efficient
A built-in event log enables easier troubleshooting by capturing useful system information
BIOS updates
Update status, latest version and update time
AC power loss
Abnormal power loss events
RTC reset
Time of real-time-clock (RTC) reset
Chassis intrusion
Record of when chassis is opened
Hardware changes
Modifications to CPU, memory or HDDs
Hardware status
USB over current, CPU over temperature, and CPU over voltage events
ASUS Control Centre
ASUS Control Centre is centralised IT management software designed to provide a convenient, effective, secure and cost-saving solution for enterprises, small and medium-sized businesses, and data centers in any type of industry. With the help of ASUS Control Centre, your organisation will be equipped to achieve success in even the most challenging modern IT environments.
Optimise IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
ASUS Commercial BIOS Kit
ASUS understands how important a customised product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
BIOS Value Edit Tool
Customise the BIOS options
BIOS Boot Logo Tool
Brand your builds with a customised boot logo
OEM Activation (OA) Tools
Add or remove the OEM Activation key
Desktop Management Interface (DMI)
Easily add customer information, such as company name, to the BIOS
Intel® Management Engine (Intel® ME) Driver
Update the Management Engine without flashing the whole BIOS
Intel CPU and chipset features
Intel® H310 Chipset
Description
Specification
- Motherboard Type: Server / Workstation
- Form Factor: Thin Mini ITX
- Socket: 1151 - Coffee Lake
- Chipset: Intel H310
- #Hide#DDR Type: DDR4 SO-DIMM
- RAM Technology: DDR4 SO-DIMM (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2666/2400/2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI Express: -
- PCI: -
- Storage: 2 x SATA III
1 x M.2 Socket (2260/2280) - SATA & PCIe - RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
- USB Ports Supported: "4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
7 x USB 2.0 (2 at back, 5 at mid-board)" - Back Panel I/O Ports: 1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
2 x USB 3.1 Gen 1
2 x USB 2.0
2 x Audio jacks
1 x DC power connector - Internal I/O Connectors: 1 x USB 3.1 Gen1
1 x USB 2.0 1-port connector
2 x USB 2.0
1 x M.2 Socket 1 with E Key
1 x M.2 Socket 3
1 x COM port
2 x SATA 6Gb/s
1 x SATA power
1 x CPU Fan
1 x Chassis Fan
1 x Front audio
1 x Chassis Intrusion - .: 1 x Clear CMOS jumper
1 x 2-pin internal DC power
1 x Stereo speaker
1 x DMIC
1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x LVDS
1 x 14-1 pin TPM
1 x System panel - CPU Support: See manufacturers link (next to product images)
- Accessories: Users manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA cables
2 x M.2 Screw Package
1 x Supporting DVD - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 0.6500 kg
- Warranty: 3 Years
