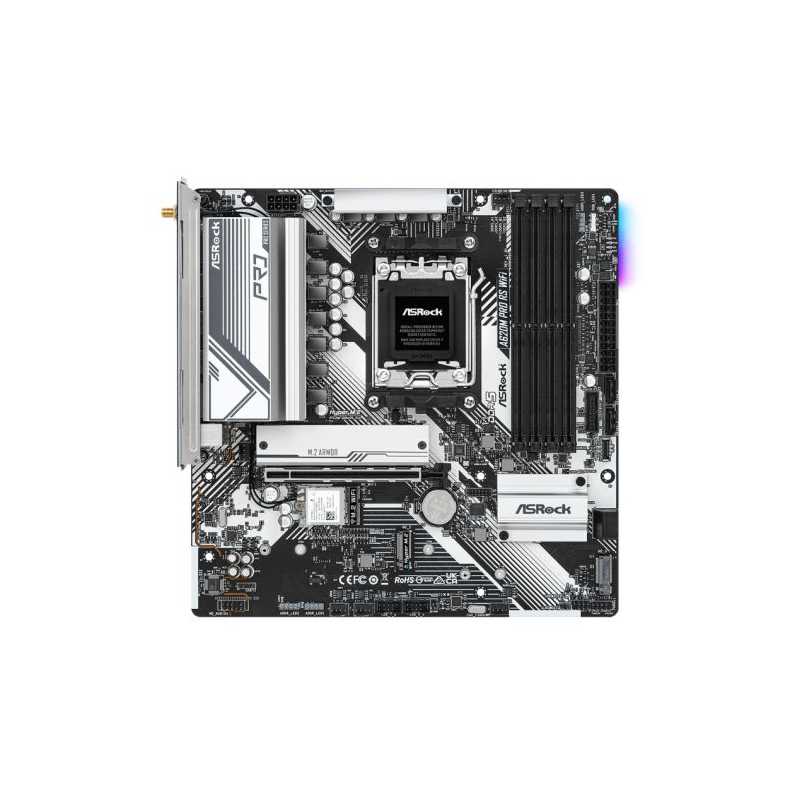

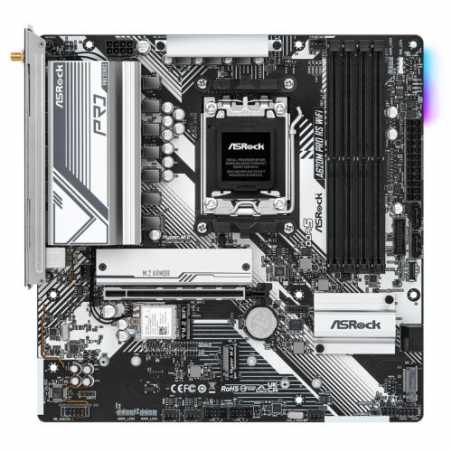

Asrock A620M PRO RS WIFI, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, GB LAN, PCIe4, RGB, 3x M.2
search
  • Asrock A620M PRO RS WIFI, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, GB LAN, PCIe4, RGB, 3x M.2

Asrock A620M PRO RS WIFI, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, GB LAN, PCIe4, RGB, 3x M.2

£142.98
VAT included
Stock status: Low
39 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%




Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.


  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 6+2+1 Power Phase, Dr.MOS, 120W CPU Ready
  • Supports DDR5 6000+ MHz (OC)
  • 1 PCIe 4.0 x16
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec,
  • Nahimic Audio
  • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4),
  • 1 M.2 (PCIe Gen3x2)
  • 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • Realtek Gigabit LAN
  • 802.11ax Wi-Fi 6E + Bluetooth
  • Supports ASRock Auto Driver Installer,
  • BIOS Flashback






Optimized VRM Design

Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.





6 Layer PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.





Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:

 - Extra anchor points
 - Stronger latch
 - Ensure signal stability
 - Make sure heavy graphics cards to be well-installed.





Nahimic Audio
  • Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
  • Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.




Polychrome RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.





High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.





Wireless Networking
  • Wi-Fi 6E 802.11ax - WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
  • M.2 Key-E Module Cap - SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.




Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.





EZ Setting
  • Auto Driver Installer - Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
  • BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
  • Pre-Installed IO Shield - ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.




ASROCK
A620M PRO RS WIFI
39 Items

Data sheet

.
1 x Front Panel Type C USB 3.2 Gen1
Wireless
802.11ax Wi-Fi 6E ModuleSupports IEEE 802.11a/b/g/n/ac/axSupports Dual-Band 2x2 with ext 6GHz band support2 antennas - 2 (Transmit) x 2 (Receive) diversity techSupports Bluetooth 5.2 + High speed class IISupports MU-MIMO
RAM Speeds
Up to 6000+
Accessories
1 x User Manual2 x SATA Data Cables2 x ASRock WiFi 2.4/5/6 GHz Antennas3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
USB Ports Supported
1 x USB 3.2 Gen1 Type-C (at back)5 x USB 3.2 Gen1 (3 at back, 2 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board)1 x Front USB 3.2 Gen1 Type-C connector
Storage
4 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - PCIe1 x M.2 (2260/2280) - PCIe
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD A620
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x HDMI1 x DisplayPort 1.43 x USB 3.2 Gen1 Type-A1 x USB 3.2 Gen1 Type-C4 x USB 2.01 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
Internal I/O Connectors
1 x SPI TPM1 x Power LED and Speaker1 x RGB LED3 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Panel Audio2 x USB 2.01 x USB 3.2 Gen1
CPU Support
Click here for CPU support
Package Type
Retail
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
RGB Lighting
Out of the box RGB lighting
PCI/PCI Express
1 x PCIe 4.0 x16
Wi-Fi
Yes (Wi-Fi)

Specific References

EAN13
4710483943065
